SV08-40M-6T-N-24DL/W SOLENOID VALV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

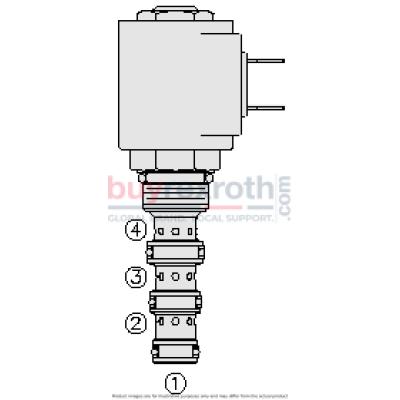

The Hydraforce 5011078 (5011078) is a solenoid-operated, 4-way, 2-position, direct-acting spool type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This valve operates by shifting its spool when energized; specifically, it opens flow paths from port 3 to port 4 and from port 2 to port 1, while in its de-energized state, the flow paths are from port 3 to port 2 and from port 4 to port 1. Importantly, all ports remain open at crossover. Key features of this valve include a continuous-duty rated coil that ensures reliability under continuous operational conditions. The valve boasts a hardened precision spool and cage which enhances its durability and lifespan even under rigorous use. It is engineered with efficient wet-armature construction and offers optional coil voltages and terminations to accommodate varying operational requirements. The compact size of the Hydraforce 5011078 makes it suitable for applications where space is a premium yet high performance is required. Additionally, the unitized, molded coil design contributes to its overall robustness and reliability. The manual override option provides added operational flexibility, allowing for manual control when needed. For environments requiring rigorous standards, there are optional waterproof E-Coils rated up to IP69K available that ensure protection against ingress of dust and high-temperature high-pressure water jets. Furthermore, this versatile cartridge valve allows all ports to be fully pressurized, enhancing its application in different hydraulic circuits without concern for pressure limitations typically associated with other valves. This feature makes it an excellent choice for various fluid power applications demanding precise control and reliability.
