SV08-40M-0-N-12ER SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

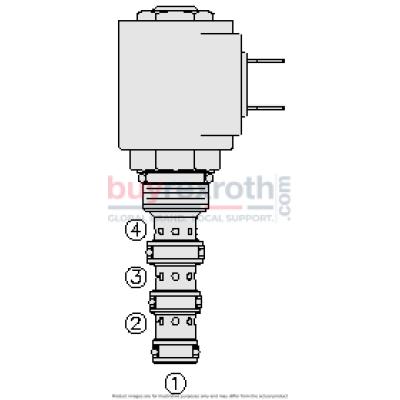

The Hydraforce 5010294 (5010294) is a solenoid-operated, 4-way, 2-position, direct-acting spool type, screw-in hydraulic cartridge valve. This valve is designed for efficient control in hydraulic systems, allowing for precise flow direction. Its operation features two distinct states: when de-energized, it connects port 3 to port 2 and port 4 to port 1; energizing the valve shifts the spool to connect port 3 to port 4 and port 2 to port 1, with all ports open at crossover. This functionality makes it suitable for various hydraulic applications requiring reliable switching between different flow paths. The valve boasts several key features enhancing its performance and durability. It has a continuous-duty rated coil and a hardened precision spool and cage that ensure long service life even under challenging conditions. The compact size of the valve allows for easy integration into tight spaces without compromising on power or efficiency. Additionally, it offers optional coil voltages and terminations to accommodate diverse system requirements. The unitized, molded coil design of the Hydraforce 5010294 enhances its reliability, while optional waterproof E-Coils are available for environments requiring up to IP69K protection against ingress of dust and high-temperature, high-pressure water. All ports on this valve can be fully pressurized, highlighting its robust design suitable for heavy-duty operations. The manual override option provides additional control flexibility, ensuring that operations can continue even if electrical power is unavailable or in settings where manual adjustment is preferred.
