SV08-47D-0-N-24DL/W W/ 7004406 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

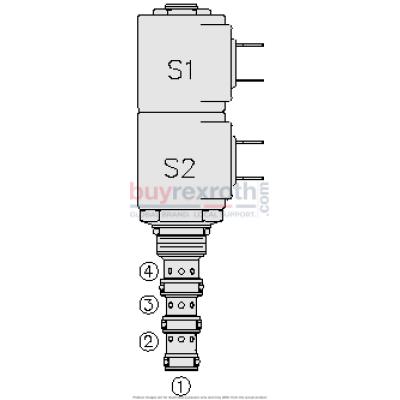

The Hydraforce SV08-47D-0-N-24DL/W (5008222) is a high-performance, solenoid-operated hydraulic cartridge valve featuring a 4-port, 3-position, direct acting spool design. This valve efficiently manages flow directions within hydraulic systems, making it suitable for a wide range of applications. In its default state when de-energized, it blocks the inlet port 3 while allowing flow from ports 2 and 4 to port 1. Energizing coil 1 shifts the flow from port 3 to port 4 and from port 2 to port 1; similarly, activating coil 2 allows flow from port 3 to port 2 and from port 4 to port 1. Designed for continuous duty, the SV08-47D-0-N-24DL/W is built with a hardened precision spool and cage ensuring longevity and reliability under rigorous conditions. It offers optional features including various coil voltages and terminations, manual override capabilities, and IP69K-rated waterproof E-Coils for enhanced operational flexibility in harsh environments. The efficient wet-armature construction of this valve ensures optimal performance. The unit is compact yet robust with all ports capable of being fully pressurized. It supports interchangeable voltage cartridges and features a unitized molded coil design common in the industry. This model adheres to rigorous pressure standards with ratings up to 240 bar (3500 psi) operating pressure, proof pressure up to 344 bar (5000 psi), and burst pressures reaching up to 779 bar (11300 psi). Flow capabilities are rated at up to approximately 11.9 liters per minute (3 gallons per minute), with maximum internal leakage maintained at minimal levels even under high-pressure conditions. Overall, the Hydraforce SV08-47D-0-N-24DL/W offers versatile configuration options and reliable performance for hydraulic systems requiring precise control of fluid dynamics in compact spaces.
