SV58-40-6T-P-24DG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

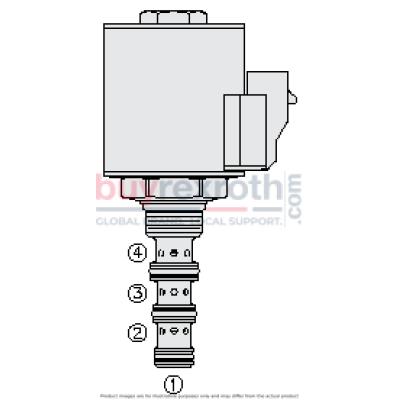

The Hydraforce 5007786 (5007786) is a robust solenoid operated, 4 port, direct acting, spool type, screw-in hydraulic directional valve designed for high-pressure circuit applications. Specifically engineered to facilitate efficient control of hydraulic flow paths in various systems, this model operates by shifting its cartridge's spool when energized or deenergized. In its default state (deenergized), the SV5840 allows flow from port 3 to port 2 and port 4 to port 1. Upon activation (energized), it redirects the flow from port 3 to port 4 and from port 2 to port 1, with all ports remaining open during the crossover phase. Key features of this model include a continuous-duty rated coil and a hardened precision spool along with a cage that enhances its longevity and reliability in demanding environments. The valve's efficient wet-armature construction contributes to its overall performance stability and durability. Moreover, it offers flexibility in customization with optional coil voltages and terminations available to suit varied operational requirements. The unitized, molded coil design is another highlight, ensuring robustness and ease of maintenance. Additionally, the SV5840 comes with an optional waterproof E-Coils feature, which is rated up to IP69K for superior protection against ingress of dust and high-temperature, high-pressure water jets. Its compact size allows for easier integration into existing systems without requiring extensive modifications or additional space. This combination of advanced features makes the Hydraforce SV5840 an ideal choice for applications requiring reliable directional control of fluid dynamics in hydraulic systems.
