SV08-42-6T-N-24DS SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

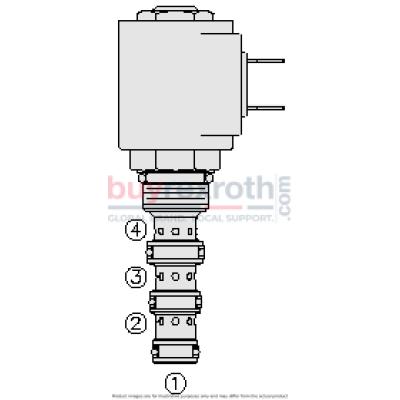

The Hydraforce 5007241 (5007241) is a solenoid-operated, 4-port, 2-position, direct-acting spool type, screw-in hydraulic cartridge valve designed for robust performance in various hydraulic systems. This valve operates by shifting its spool position when energized and de-energized; in its default state (de-energized), it allows flow from port 3 to port 4 and port 2 to port 1. Upon activation (energized), the valve's spool shifts to block all ports, effectively controlling the flow and direction of hydraulic fluids within the system. Key features of this model include a continuous-duty rated coil and a hardened precision spool along with a cage that ensures longevity and reliability under continuous operation. Its efficient wet-armature construction enhances its performance while allowing all ports to be fully pressurized, thereby offering versatility in application. The unitized, molded coil design contributes to the compact size of the valve making it suitable for space-constrained applications. Additionally, this model provides optional features such as different coil voltages and terminations to accommodate varying requirements and environments. For enhanced durability in harsh conditions, there are optional waterproof E-Coils rated up to IP69K available. The manual override option adds an extra layer of operational security allowing manual control when needed. These capabilities make the Hydraforce 5007241 exceptionally suited for a wide range of hydraulic applications demanding reliable control and flexibility.
