SV58-40-0-P-24EG W/ 7004406 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

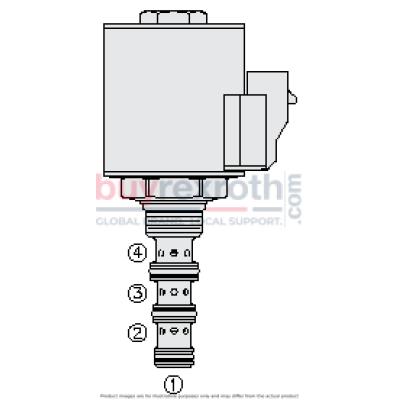

The Hydraforce 5007122P (5007122P) is a solenoid operated, 4 port, direct acting, spool type, screw-in hydraulic directional valve designed for high-pressure circuits. The SV5840 model facilitates precise control over hydraulic flow paths in its operation. When de-energized, it allows flow from port 3 to port 2 and from port 4 to port 1. Upon energization, the cartridge’s spool shifts to connect port 3 to port 4 and port 2 to port 1, with all ports remaining open at crossover. This feature ensures seamless transition and control of hydraulic fluid between ports. Key features of the SV5840 include a continuous-duty rated coil and a hardened precision spool and cage that enhance its durability and lifespan even under rigorous conditions. It boasts efficient wet-armature construction along with unitized, molded coil design which contributes to its robust performance and reliability. The valve offers flexibility with optional coil voltages and terminations to suit varied operational requirements. Additionally, it is available with optional waterproof E-Coils that are rated up to IP69K, ensuring protection against ingress of dust and high-temperature high-pressure water jets. Compact in size, the SV5840 is engineered for space efficiency without compromising on functionality or performance. This makes it particularly suitable for applications where space is at a premium but high performance is required. Its cartridges are also voltage interchangeable which provides further adaptability for various system requirements. Overall, the Hydraforce SV5840 offers an advanced solution for directing flow in high-pressure hydraulic systems efficiently and reliably.
