SV08-40-0-V-230AG SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

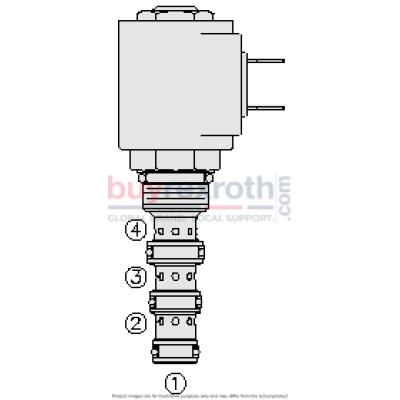

The Hydraforce 5007117 (5007117) is a solenoid-operated, 4-way, 2-position, direct-acting spool type, screw-in hydraulic cartridge valve designed for efficient control in hydraulic systems. This valve operates by shifting its spool to alter flow paths when energized and de-energized. Specifically, when de-energized, the flow paths are from port 3 to port 2 and from port 4 to port 1. Upon energization, the configuration changes to open port 3 to port 4 and port 2 to port 1, with all ports open at crossover. The valve features a continuous-duty rated coil and a hardened precision spool and cage that enhance its durability and lifespan. It is characterized by its efficient wet-armature construction allowing for compact design without sacrificing performance. The cartridges of this model are voltage interchangeable which provides flexibility in usage across different systems with varying voltage requirements. Additionally, it is equipped with an optional manual override option and can be fitted with waterproof E-Coils that are rated up to IP69K for high resistance against ingress of dust and water under high pressure and temperature conditions. This compact unit also offers optional coil voltages and terminations to accommodate diverse operational requirements and installation environments. Its design ensures that all ports may be fully pressurized, enhancing its functionality in various hydraulic applications. The unitized, molded coil design not only contributes to the robustness but also ensures reliability in demanding applications.
