SV08-40-0-N-12EL SOLENOID VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

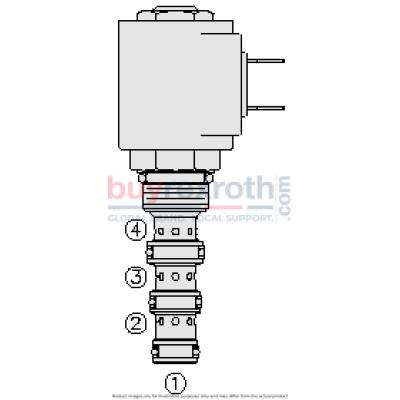

The Hydraforce 5007084 (5007084) is a solenoid-operated, 4-way, 2-position, direct-acting spool type, screw-in hydraulic cartridge valve designed for robust and efficient control in hydraulic systems. This valve operates by shifting its spool position when energized and de-energized, thereby altering the flow paths between its ports. In its default state (de-energized), it connects port 3 to port 2 and port 4 to port 1. Upon energization, the configuration shifts to connect port 3 to port 4 and port 2 to port 1, with all ports being open at crossover. Notably engineered for continuous duty applications, the Hydraforce 5007084 features a hardened precision spool and cage which enhance its lifespan even under rigorous conditions. The valve's compact size allows for easy integration into various system configurations without requiring significant space. It includes a unitized, molded coil design that supports efficient wet-armature construction enhancing its performance reliability. Additional customization options are available with various coil voltages and terminations to suit different system requirements. The optional waterproof E-Coils are particularly beneficial for applications requiring high environmental protection as they are rated up to IP69K. For maintenance or manual operation, a manual override option is also provided. This flexibility coupled with the ability to withstand full pressurization on all ports makes the Hydraforce 5007084 a versatile component suitable for a wide range of hydraulic applications.
