SV08-40-0-N-115AP W/ 7004406 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

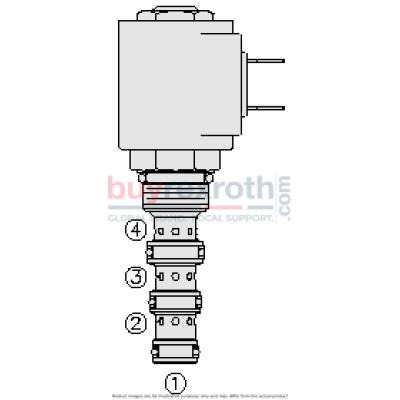

The Hydraforce 5007075 (5007075) is a solenoid-operated, 4-way, 2-position, direct-acting spool type, screw-in hydraulic cartridge valve designed for precise control in hydraulic systems. This valve operates by shifting its spool when energized to alter flow paths, enabling control between four ports: when de-energized, it connects port 3 to port 2 and port 4 to port 1; upon energization, the connections switch from port 3 to port 4 and port 2 to port 1 with all ports open at crossover. The unit features a continuous-duty rated coil and a hardened precision spool and cage which enhance its durability and lifespan. Additionally, the Hydraforce 5007075 offers versatility through optional coil voltages and terminations, allowing customization for different electrical requirements. Its efficient wet-armature construction ensures reliable operation even under demanding conditions. The valve’s compact size makes it ideal for applications where space is limited but robust performance is required. It also includes a manual override option for enhanced operational flexibility. For environments requiring rigorous standards, optional waterproof E-Coils are available that are rated up to IP69K, ensuring protection against ingress of dust and high-temperature high-pressure water jets. This feature makes the valve suitable for use in harsh environmental conditions without compromising functionality. With its capability to withstand full pressurization on all ports and its interchangeable voltage cartridges, the Hydraforce 5007075 offers a robust solution for dynamic hydraulic system needs across various applications.
