SV08-40-0-N-24DG W/ 7004406 NUT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

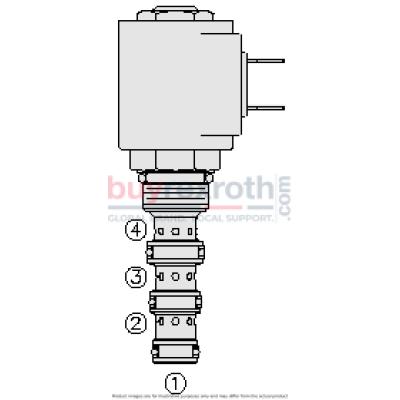

The Hydraforce SV08-40-0-N-24DG (5007047) is a solenoid-operated, 4-way, 2-position, direct-acting spool type hydraulic cartridge valve. Designed for high-performance and reliability in hydraulic systems, this valve operates by shifting its spool to direct flow between ports when energized and de-energized, ensuring efficient control over the flow paths from port 3 to port 2 and port 4 to port 1. It features a continuous-duty rated coil and a hardened precision spool and cage that enhance its durability and lifespan. This compact valve is also equipped with efficient wet-armature construction, allowing all ports to be fully pressurized with minimal internal leakage. The unitized, molded coil design supports various optional coil voltages and terminations. Notably, it includes manual override options and can be fitted with waterproof E-Coils rated up to IP69K for enhanced operational safety in harsh environments. The SV08-40-0-N-24DG is suitable for use with mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt, operating effectively within a broad temperature spectrum from -40°C to +100°C with standard seals. Its robust design accommodates maximum operating pressures up to 207 bar (3000 psi) with proof pressure at 241 bar (3500 psi) and a burst pressure reaching up to 620 bar (9000 psi). This makes it an ideal choice for various demanding applications requiring precise fluid control in compact spaces.
