150LDN0063-G10A00-V2,2-V-R4 (2 PACK)

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hengst directly.***

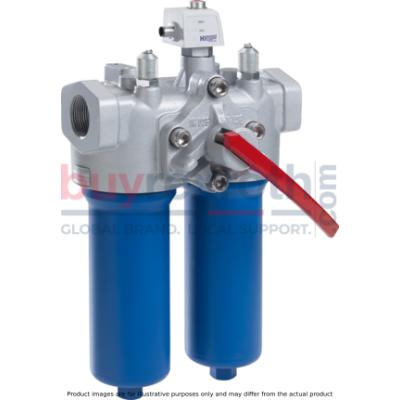

The Hengst 1054768B (1054768B) is a high-performance hydraulic-duplex in-line filter designed for the efficient filtration of solids from hydraulic fluids and lubricating oils. This model, part of the 150LD series, features a robust construction with a housing made from nodular cast iron and carbon steel, ensuring durability under demanding conditions. The filter media is composed of stainless steel wire mesh, designated as G10, offering a nominal filtration grade of 10 microns. With its design class as an inline duplex filter, it allows for continuous operation by enabling filter element replacement without interrupting system functionality. This model supports various configurations with its FKM seals and is suitable for use with HFC and HFA fluids, adhering to DIN24550 standards. It boasts a maximum working pressure of 160 bar and nominal pressure of 150 bar, with a collapse pressure rating of 30 bar. The bypass cracking pressure is set at 3.5 bar. The Hengst 1054768B includes an optical indicator for monitoring purposes and features a stopcock change-over design to facilitate seamless switching between filters. Mounting options include top or back positions with horizontal port positioning following ISO228-1 standards. The port designation is G1 with an R4 port code. Despite having no lid lifting device or two-parted bowl design, this model incorporates the cyclone effect to enhance filtration efficiency. Its compact volume ensures it fits well within various setups without compromising on performance or reliability in industrial hydraulic systems requiring high-level fluid cleanliness.
