16 FD 7000 PWR3-A00-06V2,2-D0V0A (2 PACK)

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hengst directly.***

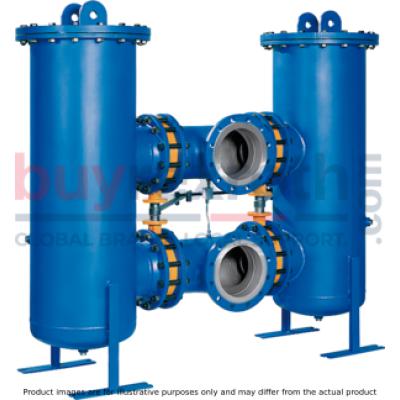

The Hengst 16 FD 7000 PWR3-A00-06V2,2-D0V0A (1051473B) is a hydraulic-duplex in-line filter designed for efficient filtration of solids from hydraulic fluids and lubricating oils. This model is specifically intended for installation within pipelines, providing seamless operation as filter elements can be replaced without interrupting the system's functionality. The filter utilizes a multilayer glass fiber material known as PWR3, ensuring effective filtration with a grade of 3. It features a robust carbon steel housing and is equipped with an FKM seal, making it suitable for various applications requiring reliable sealing performance. The filter's maximum working pressure is rated at 16 bar, with a nominal pressure also at 16 bar, allowing it to handle demanding environments effectively. Additionally, the Hengst 16 FD 7000 features a bypass valve crack pressure of 3.0 bar and supports foot mounting for stable installation. Its port designation is DN250 according to DIN1092-1 standards, with the inlet positioned above the outlet for optimized flow dynamics. The design includes an optical indicator for monitoring purposes and incorporates a butterfly valve change-over design with pressure equalization line capabilities to ensure smooth operation during maintenance activities. This duplex filter does not include features such as cyclone effect or lid lifting device but provides reliable filtration performance in hydraulic systems where continuous operation and minimal downtime are essential.
