150LDN0160-PWR10A00-V5,0-V-R6 (2 PACK)

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hengst directly.***

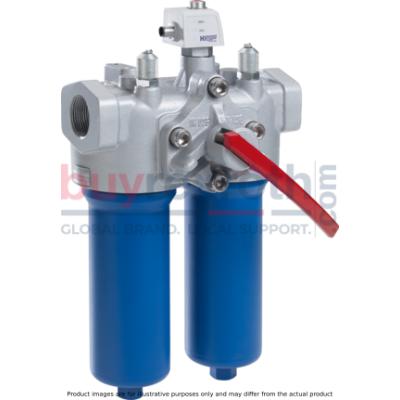

The Hengst 150LDN0160-PWR10A00-V5,0-V-R6 (1012427B) is a hydraulic-duplex in-line filter designed to effectively remove solid contaminants from hydraulic fluids and lubricating oils. This filter is suitable for installation in pipelines, allowing for the replacement of filter elements without interrupting system operation. The unit features a nominal size of 0160 and uses a multilayer glass fiber material designated as PWR10, which provides efficient filtration with a grade of 10 microns. Constructed from nodular cast iron and carbon steel, the housing ensures durability under demanding conditions, with a maximum working pressure of 160 bar and nominal pressure of 150 bar. The filter is equipped with an optical indicator to signal when maintenance is required, set at a switching point of 5 bar. It also incorporates a cyclone effect for enhanced filtration performance. The port configuration follows ISO228-1 standards with G1 1/2 horizontal ports, making it versatile for various mounting positions either on the top or back. The duplex design includes a stopcock change-over feature that facilitates seamless switching between filters to maintain continuous operation. Additionally, this product meets DIN24550 standards and is suitable for use with HFC and HFA fluids. Its robust construction allows it to withstand collapse pressures up to 30 bar, ensuring reliability in high-pressure environments.
