150LDN0250-PWR3A00-V5,0-M-R6 (2 PACK)

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hengst directly.***

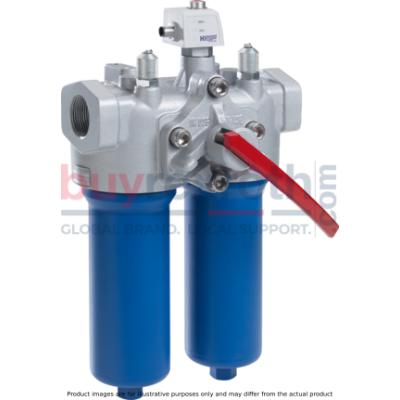

The Hengst 150LDN0250-PWR3A00-V5,0-M-R6 (1009462B) is a hydraulic-duplex in-line filter specifically designed for use in hydraulic systems to filter out solids from hydraulic fluids and lubricating oils. Engineered for installation in pipelines, this model allows for the replacement of filter elements without interrupting system operation. The filter features a multilayer glass fiber material (PWR3) as its filter media, ensuring efficient filtration with a grade of 3. It is constructed from durable materials, including nodular cast iron and carbon steel housing, making it suitable for high-pressure environments with a maximum working pressure of 160 bar and a nominal pressure of 150 bar. The device also includes an optical indicator to monitor the filtration process. This duplex filter supports top or back mounting and features horizontal port positioning with G1 1/2 ports adhering to ISO228-1 standards. Its design includes a stopcock change-over mechanism and is capable of handling bypass cracking pressures up to 7 bar. With suitability for HFC/HFA fluids and compliance with DIN24550 standards, it offers versatility across various applications. The Hengst model's robust design ensures reliable performance under demanding conditions, while its cyclone effect enhances filtration efficiency by reducing particle load on the main filter element.
