150LDN0063-G60A00-V2,2-M-R4 (2 PACK)

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hengst directly.***

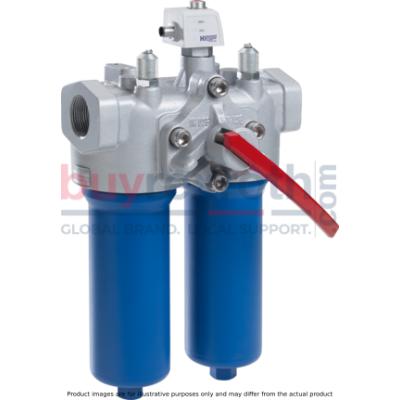

The Hengst 150LDN0063-G60A00-V2,2-M-R4 (1007995B) is a hydraulic-duplex in-line filter designed for efficient filtration of solids from hydraulic fluids and lubricating oils. This model is specifically engineered for installation in pipelines, allowing for seamless operation with the capability to replace filter elements without interrupting system function. It features a stainless steel wire mesh filter media with a filtration grade of 60, ensuring robust performance in various applications. The duplex design includes a support cage made from standard materials and is constructed with nodular cast iron and carbon steel housing for durability. This filter model supports top or back mounting, with horizontal port positioning adhering to ISO228-1 standards. The port designation is G1, and it maintains a nominal pressure rating of 150 bar with a maximum working pressure of 160 bar. Designed to withstand pressures up to 30 bar before collapsing, the Hengst model also includes an optical indicator that activates at a switching point of 2.2 bar. Its bypass cracking pressure is set at 3.5 bar. The Hengst 150LDN0063-G60A00-V2,2-M-R4 is equipped with NBR seals and has been tested for suitability with HFC/HFA fluids as per DIN24550 standards. The inline filter's design incorporates a stopcock change-over mechanism and features cyclone effect capabilities to enhance filtration efficiency. Although it lacks a lid lifting device or two-parted bowl design, its reliable construction and operational flexibility make it suitable for demanding hydraulic systems requiring consistent performance and easy maintenance.
