Accessories for R911173192

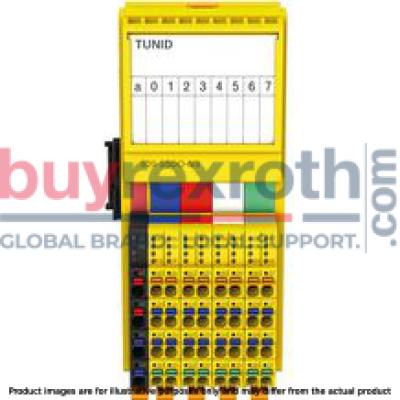

INTERFACE MODULE S20-SSDO-8/3

Manufacturer: Bosch Rexroth

Material #: R911173192

Model : S20-SSDO-8/3

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth S20-SSDO-8/3 (R911173192) is a state-of-the-art safety-related digital output module designed to enhance the functionality and safety of automated systems. This module is specifically engineered for integration into CIP Safety on Sercos networks, providing reliable and secure communication pathways for safety-critical applications. The S20-SSDO-8/3 boasts 8 safe digital outputs that can be configured for either two-channel or single-channel assignment, offering flexibility to meet diverse system requirements. With an emphasis on robustness, the module features IP20 protection, ensuring its durability in various industrial environments. The compact and modular design allows for space-saving installation on standard top hat rails within control cabinets, streamlining the assembly process and reducing setup times. The forced ventilated axial fan contributes to maintaining optimal operating conditions, further enhancing the longevity of the device. The S20-SSDO-8/3 is equipped with diagnostic and status indicators that provide immediate feedback on system performance and potential issues, facilitating quick resolution of any problems. In terms of safety standards, the module adheres to stringent regulations with a Safety Integrity Level (SIL) of SIL3 according to EN 62061 and SILCL3 according to EN 62061, as well as achieving Performance Level e (PLe) as per EN ISO 13849-1. This high level of safety certification ensures that the S20-SSDO-8/3 can be confidently employed in critical applications where human protection is paramount. The electronic device nameplate offers essential information for easy identification and maintenance purposes. Overall, the Bosch Rexroth S20-SSDO-8/3 is an innovative solution designed for reliability and efficiency in automated safety systems.

$1,598.87 USD

Availability: 8 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as May 13, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

INTERFACE MODULE S20-SSDO-8/3

Cabinet I/O S20

The modular, compact device design of the I/O systems from Rexroth provides you with maximum flexibility for cost-effective implementation of your custom machine concepts. The I/O modules have a robust design and mechanics, Forced ventilated - Axial fan 230Vre easy to handle, have a fast reaction time and are quick to install – both in the control cabinet as well as in the field. Open communication standards allow you to perfectly integrate the I/O modules with maximum availability.

Unpacked Weight: 0.352 kg

Diagnostic and status indicators

Safety-related digital output module, IP20 protection, for use in CIP Safety on Sercos systems. The module has 4 safe digital outputs for two-channel assignment or 8 safe digital outputs for single-channel assignment.

Innovative assembly and installation concept
Individually combinable modules
Space-saving I/O technology for top hat rail mounting
Compact, modular and simple

2D CAD	Download 2D CAD
3D CAD	Download 3D CAD

Type code extension	S20-SSDO-8/3
Productgroup ID	4,6
ctrlX configurator	https://www.boschrexroth.com/ctrlx-configurator/
Number of channels	8
EPLAN	https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-SSDO-8%2F3**&downloads=true
Weight	0.352

General data

Type		S20-SSDO-8/3
Weight 1)	g	≈ 220
Operating mode		CSos, extended data format with 12 bytes
Ambient temperature (operation) 2)		-35 °C ... +60 °C
Ambient temperature (operation) 3)		-35 °C ... +55 °C
Ambient temperature (storage/transport)		-40 °C ... +85 °C
Permissible relative humidity (operation)		75 % on average, 85 % occasionally
Permissible relative humidity (storage/transport)		75 % on average, 85 % occasionally
Air pressure (operation)		70 kPa … 108 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		66 kPa … 108 kPa (up to 3500 m above sea level)
Protection type 4)		IP20
Protection class 5)		III, IEC EN 61140, VDE 0140-1
Clearances and creepage distances		Acc. to IEC 60664-1
Housing material		Plastic PBT, self-extinguishing (V0)
Supported stop category		0; 1 in error-free state acc. to EN 60204

1)	Including plug
2)	Any installation position
3)	Acc. to CULUS; with max. total current 6 A; 4 outs loaded with 1,5 A or 8 outs loaded with 0,75 A
4)	Operation min. in installation space IP54
5)	Protective extra-low voltage

Connection data

Type		S20-SSDO-8/3
Designation		S20 connector
Connection type		Tension spring modules
Conductor cross-section solid/flexible/AWG		0.5 mm² ... 1.5 mm² 0.25 mm² ... 1.5 mm² 24 ... 16
Stripping length	mm	8

Safety characteristics

Type		S20-SSDO-8/3
Acc. to IEC 61508/EN 61508
Achievable SIL 1)		SIL 2 (single-channel) SIL 3 (two-channel) -
Probability of dangerous failure by demand through the safety function (PFD)		SIL 2: Maximum 1 % of 10-2 (corresponds to 1 * 10-4) SIL 3: Maximum 1 % of 10-3 (corresponds to 1 * 10-5)
Probability of dangerous failure per hour for the whole module (PFH) 2)		SIL 2: Maximum 1 % of 10-6 (corresponds to 1 * 10-8) SIL 3: Maximum 1 % of 10-7 (corresponds to 1 * 10-9) -
Hardware error tolerance (HFT) of the module		1
Permissible operating time 3)	Years	20
Acc. to EN 62061
Achievable SIL Claim Limit 1)		SIL CL 2 = SIL 2 (single-channel) SIL CL 3 = SIL 3 (two-channel) -
Safe Failure Fraction (SFF)	%	99
Probability of dangerous failure per hour for the whole module (PFH) 2)		SIL 2: Maximum 1 % of 10-6 (corresponds to 1 * 10-8) SIL 3: Maximum 1 % of 10-7 (corresponds to 1 * 10-9) -
Hardware error tolerance (HFT) of the module		1
Permissible operating time 3)	Years	20
Acc. to EN ISO 13849-1
Achievable Performance Level 1)		PL d (single-channel) PL e (two-channel) -
Degree of diagnostic cover (DC)	%	99
Mean time to a dangerous failure (MTTFd)		100 years -

1)	Depending on the parameterization and circuit
2)	Depending on the parameterization
3)	With low demand rate, 25 years

Supply voltage UBus (Logic)

Type		S20-SSDO-8/3
Logic voltage UBus	V DC	5
Typical current consumption from UBus 1)	mA	260
Maximum current consumption from UBus	mA	280

1)	All outputs set; supply through UO from 19.2 V DC ... 30.2 V DC

Supply voltage UO (Actuators)

Type		S20-SSDO-8/3
Nominal voltage 1)	V DC	24
Ripple	Vpp	3.6
Permissible voltage range 2)		19.2 V DC ... 30.2 V DC
Current consumption from UO 3)	mA	25
Permitted interruption time 4)	ms	10
Overvoltage protection		Yes (in module)
Reverse polarity protection		Yes (in module)
Undervoltage detection		Yes, at approx. 17 V
Diagnosis displays		LED (green) UO
External protection 5)	A	≤ 8

1)	Acc. to EN 61131-2, EN 60204
2)	Including all tolerances, including ripple
3)	All outputs set; supply from UO with 30.2 V DC; without supply of actuators
4)	Within this period of time, the output voltage for the secure outputs breaks down, since the outputs are not buffered internally
5)	Slow time-lag

Safe digital outputs

Type				S20-SSDO-8/3
Number of digital outputs				4/8 (two-channel/single-channel, plus-switching)
Supply				Supply voltage UO (Actuators)
Maximum output current	Per output		A	≤ 2
	Per output (acc. to CULUS)		A	≤ 1.5
	All outputs (total current)		A	≤ 8
	All outputs (total current) (acc. to CULUS)		A	≤ 6
	Per group (total current)	Group 1 (OUT0_K1, OUT1_K1, OUT2_K1, OUT3_K1)	A	≤ 4
		Group 1 (OUT0_K1, OUT1_K1, OUT2_K1, OUT3_K1) (acc. to CULUS)	A	≤ 3
		Group 2 (OUT0_K2, OUT1_K2, OUT2_K2, OUT3_K2)	A	≤ 4
		Group 2 (OUT0_K2, OUT1_K2, OUT2_K2, OUT3_K2) (acc. to CULUS)		≤ 3 A
Maximum output voltage low state			V	< 5
Maximum leakage current low state			mA	≤ 2
Minimum holding voltage of the connected loads			V	> 5
Maximum load	Inductance		H	1
Maximum load	Capacitive (in relation to current)			10 µF per channel; 10 µF in total
Minimum load	16 mA at 24 V		kΩ	1.5
Limited inductive cut-off voltage			V	- 15
Output voltage				UO ‒ ca. 1 V
Simultaneity 1)			%	100
Maximum switching frequency				1 Hz; 0.2 Hz > 1 A - -
Filter time				None
Switch-off delay for shutdown 2)	Configurable			250 ms ... 128 s
Maximum duration of test pulses	In deactivated state; drive actively		ms	1
Maximum duration of test pulses	In activated state 3)		ms	3
Status indicators				One green LED per output
Diagnosis displays				One red LED per output

1)	Up to 45 °C (observe maximum current load)
2)	After stop category 1; precision ±5 % of parameterized value
3)	Depending on the load capacity

Mechanical tests

Type		S20-SSDO-8/3
Vibration resistance 1)		10 ... 57 Hz: 0.35 mm with constant amplitude; 57 ... 150 Hz; 5 g acceleration, constant amplitude
Shock 2)		30 g, 11 ms; criterion A

1)	Acc. to IEC 60068-2-6
2)	Acc. to IEC 60068-2-27

Conformity

Type		S20-SSDO-8/3
Conforms with
Testing of interference immunity acc. to EN 61000-6-2	Discharge of static electricity (ESD)	Criterion A; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2
	Electro-magnetic fields	Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3
	Fast transients (burst)	Criterion A; test voltage 2 kV acc. to EN 61000-4-4/IEC 61000-4-4
	Transient overvoltage (surge)	Testing severity 2, criterion A;supply lines DC: 1.0 kV/1.0 kV (symmetric/asymmetric); signal lines: 1.0 kV/2.0 kV (symmetric/asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5
	Line-fed disturbances	Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6
Testing of disturbance transmission acc. to EN 61000-6-4	Testing of line-fed disturbance transmission	Class B, residential area, acc. to EN 55022

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		S20-SSDO-8/3
A	mm	53.6
B	mm	126.1
C	mm	54
Note on dimensions		Without bus base module including plug
