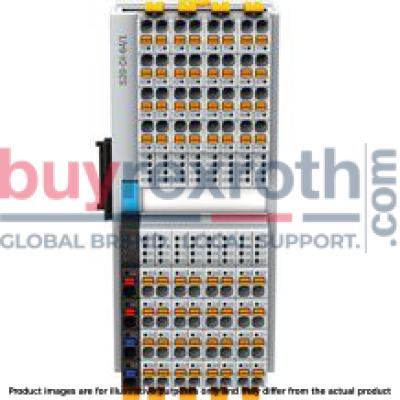

DIGITAL INPUT MODULE S20-DI-64/1

Manufacturer: Bosch Rexroth

Material #: R911173340

Model : S20-DI-64/1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth S20-DI-64/1 (R911173340) is a highly flexible and robust IO module designed to seamlessly integrate into custom machine concepts. This compact device boasts a modular design that enables easy handling and rapid installation, making it an ideal solution for both control cabinet and field applications. With forced ventilation provided by an axial fan, the S20-DI-64/1 ensures maximum availability and efficient operation within any system. This specific module excels in acquiring digital signals within an S station environment, offering adjustable filter times to enhance interference immunity. Its capability to adjust filter times to less than 1 µs, 3 µs, or 10 µs allows for the implementation of counting functions with an input frequency of up to 100 kHz. The S20-DI-64/1 features a minimum update time of less than 1 µs, ensuring swift response times for critical applications. Equipped with diagnostic and status indicators, the module provides users with essential feedback on system performance and potential issues. It accommodates eight digital inputs according to EN type 1 and type 3 at 24 VDC, 2 mA. These inputs facilitate the connection of sensors and actuators using two-wire technology. In terms of construction, the space-saving IO technology is designed for top hat rail mounting, which contributes to its compact footprint within installations. The innovative assembly concept underscores its user-friendly nature, allowing for quick configuration changes when necessary. With open communication standards supported by this module, users can expect seamless integration into various control systems. The S20-DI-64/1 represents a component of Bosch Rexroth's commitment to providing individually combinable modules that embody their innovative approach to automation technology.

$1,065.76 USD

More are expected on December 19, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 19, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

DIGITAL INPUT MODULE S20-DI-64/1

Cabinet I/O S20

The modular, compact device design of the I/O systems from Rexroth provides you with maximum flexibility for cost-effective implementation of your custom machine concepts. The I/O modules have a robust design and mechanics, Forced ventilated - Axial fan 230Vre easy to handle, have a fast reaction time and are quick to install – both in the control cabinet as well as in the field. Open communication standards allow you to perfectly integrate the I/O modules with maximum availability.

Unpacked Weight: 0.3 kg

Maximum input frequency: 5 kHz Electronic device nameplate Diagnostic and status indicators

This module is designed for use within an S20 station. It is used to acquire digital signals. The filter times for the inputs can be adjusted to increase the interference immunity. Filter times of 100 μs allow the user to applicatively implement a counting function using an input frequency of maximum 5 kHz.

Innovative assembly and installation concept
Individually combinable modules
Space-saving I/O technology for top hat rail mounting
Compact, modular and simple

2D CAD	Download 2D CAD
3D CAD	Download 3D CAD

Type code extension	S20-DI-64/1
Productgroup ID	4,6
ctrlX configurator	https://www.boschrexroth.com/ctrlx-configurator/
Number of channels	64
EPLAN	https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-DI-64%2F1**&downloads=true
Weight	0.3

General data

Type		S20-DI-64/1
Color		Gray
Weight 1)	g	231
Ambient temperature (operation)		-25 °C ... +60 °C
Ambient temperature (storage/transport)		-40 °C ... +85 °C
Permissible relative humidity (operation)		5 % ... 95 %, no dewing
Permissible relative humidity (storage/transport)		5 % ... 95 %, no dewing
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20
Protection class		III, IEC 61140, EN 61140, VDE 0140-1
Installation position		Any (no temperature derating)

1)	Including plug and bus base module

Connection data

Type		S20-DI-64/1
Designation		S20 connector
Connection type		Push-in technology
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16
Stripping length	mm	8

Interface local bus

Type		S20-DI-64/1
Connection type		Bus base module
Transmission speed	MBit/s	100

Power supply to logic

Type		S20-DI-64/1
Logic voltage UBus 1)	V DC	5
Maximum current consumption from UBus	mA	120
Maximum power consumption from UBus	mW	600

1)	Via bus base module

Power supply to peripherals

Type		S20-DI-64/1
Feed to digital input modules UI	V DC	24
Maximum permitted voltage range 1)		19.2 V DC ... 30 V DC
Current consumption from UI	mA	60
Typical power consumption from UI	W	1.1
Maximum power consumption from UI	W	1.8
Overvoltage/reverse polarity protection supply voltage		Electronic (35 V, 0.5 s) / parallel diode; with external security 5 A (only for commissioning)
Guarantee 2)	A	≤ 8

1)	Including all tolerances, including ripple
2)	Reverse polarity protection up to 5 A

Digital inputs

Type		S20-DI-64/1
Number of digital inputs		64
Connection type		Push-in technology
Connectivity technology		1-wire technology
Description of the input		Acc. to EN 61131-2 type 1 and type 3
Nominal input voltage	V DC	24
Nominal input current	mA	2.4
Current profile		Linear up to nominal current, then constant around 2.4 mA
Input voltage range "0" signal		-3 V DC ... 5 V DC
Input voltage range "1" signal		11 V DC ... 30 V DC
Input filter time		3000 μs (default); 1000 μs; < 100 μs
Process data update 1)	µs	< 100
Reverse polarity protection		Parallel diode (30 V, 5 s)

1)	Bus synchronous

PROFIBUS telegram data

Type		S20-DI-64/1
Need for parameter data	byte	3
Need for configuration data	byte	6

Error messages to the higher-level control or computer system

Type		S20-DI-64/1
Error message		Failure in peripheral supply

Electrical isolation/insulation of the voltage ranges

Type		S20-DI-64/1
Test distance		Test voltage
5 V supply (logic)/24 V supply (peripherals)		500 V AC, 50 Hz, 1 min.
5 V supply (logic)/function earth		500 V AC, 50 Hz, 1 min.
24 V supply (peripherals)/function earth		500 V AC, 50 Hz, 1 min.

Mechanical tests

Type		S20-DI-64/1
Vibration resistance 1)	g	5
Shock 2)	g	30
Continuous shock 2)	g	10

1)	Acc. to EN 60068-2-6/IEC 60068-2-6
2)	Acc. to EN 60068-2-27/IEC 60068-2-27

Conformity

Type		S20-DI-64/1
Conforms with
Testing of interference immunity acc. to EN 61000-6-2	Discharge of static electricity (ESD)	Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2
	Electro-magnetic fields	Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3
	Fast transients (burst)	Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4
	Transient overvoltage (surge)	Criterion B; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5
	Line-fed disturbances	Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6
Testing of disturbance transmission acc. to EN 61000-6-3	Radio disturbance characteristics	Class B acc. to EN 55022

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		S20-DI-64/1
A	mm	53.6
B	mm	129.9
C	mm	54
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
