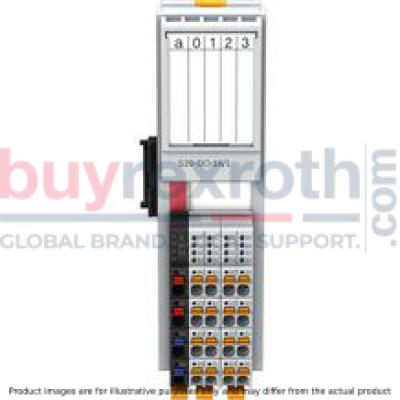

DIGITAL OUTPUT MODULE S20-DO-16/1

Manufacturer: Bosch Rexroth

Material #: R911172542

Model : S20-DO-16/1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth S20-DO-16/1 (R911172542) is a state-of-the-art digital output module designed to integrate seamlessly into S IO cabinet configurations. This module boasts 16 digital outputs, each capable of handling 24 V DC with a current up to 0.5 A, making it suitable for a wide range of applications requiring reliable digital signal processing. The outputs are designed with the conductor connection technique, ensuring secure and efficient connectivity. Compact and modular, the S20-DO-16/1 is engineered for space-saving installation on top hat rails, allowing for optimal use of cabinet space without compromising performance. Its innovative assembly and installation concept ensures that modules can be combined individually, providing flexibility and customization according to specific system requirements. The module also features diagnostic and status indicators that allow for easy monitoring and troubleshooting. Each output is short-circuit proof and protected against overload, enhancing the durability and reliability of the system it's integrated into. The unit also includes an electronic device nameplate for easy identification and management within complex systems. With its robust design and advanced features, the Bosch Rexroth S20-DO-16/1 digital output module represents a versatile solution for controlling actuators using 2-wire connection technology. It excels in environments where precise control of digital signals is crucial, ensuring uninterrupted operation and system integrity.

$481.66 USD

Availability: 16 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as May 9, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

DIGITAL OUTPUT MODULE S20-DO-16/1

S20 I/O cabinet

Digital output module, 16 outputs, 24 V DC, 500 mA, 1-conductor connection technique

Unpacked Weight: 0.184 kg

Diagnostic and status indicators

This module is designed for use within an S20 station. It is used to output digital signals. The outputs are protected against short circuits and overload.

Innovative assembly and installation concept
Individually combinable modules
Space-saving I/O technology for top hat rail mounting
Compact, modular and simple

2D CAD	Download 2D CAD
3D CAD	Download 3D CAD

Type code extension	S20-DO-16/1
Productgroup ID	4,6
ctrlX configurator	https://www.boschrexroth.com/ctrlx-configurator/
Number of channels	16
EPLAN	https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.S20-DO-16%2F1**&downloads=true
Weight	0.184

General data

Type		S20-DO-16/1
Color		Gray
Weight 1)	g	134
Ambient temperature (operation)		-25 °C ... +60 °C
Ambient temperature (storage/transport)		-40 °C ... +85 °C
Permissible relative humidity (operation)		5 % ... 95 %, no dewing
Permissible relative humidity (storage/transport)		5 % ... 95 %, no dewing
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20
Protection class		III, IEC 61140, EN 61140, VDE 0140-1

1)	Including plug and bus base module

Connection data

Type		S20-DO-16/1
Designation		S20 connector
Connection type		Spring-cage connection with direct plug technology
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16
Stripping length	mm	8

Interface local bus

Type		S20-DO-16/1
Connection type		Bus base module
Transmission speed	MBit/s	100

Power supply to logic

Type		S20-DO-16/1
Logic voltage UBus 1)	V DC	5
Maximum current consumption from UBus	mA	180
Maximum power consumption from UBus	mW	900

1)	Via bus base module

Power supply to peripherals

Type		S20-DO-16/1
Feed to digital output modules UO	V DC	24
Maximum permitted voltage range 1)		19.2 V DC ... 30 V DC
Current consumption from UO 2)	A	8
Typical power consumption from UO 3)	mW	320
Maximum power consumption from UO 4)	W	240
Overvoltage/reverse polarity protection supply voltage		Electronic (35 V, 0.5 s) / parallel diode; with external security 5 A (only for commissioning)
Guarantee 5)	A	≤ 8

1)	Including all tolerances, including ripple
2)	Secure externally
3)	Without actuators
4)	From that, 560 mW internal losses
5)	Reverse polarity protection up to 5 A

Digital outputs

Type				S20-DO-16/1
Number of digital outputs				16
Connection type				Direct plug-in technology
Connectivity technology				1-wire technology
Nominal output voltage				24 V DC
Output current per channel			mA	≤ 500
Output current per device 1)			A	≤ 8
Nominal load	Ohmic	48 Ω; for nominal voltage	W	≤ 12
	Lamps	for nominal voltage	W	≤ 12
	Inductance	1.2 H, 48 Ω; for nominal voltage	VA	≤ 12
Signal delay upon activation			µs	≤ 100
Signal delay upon deactivation 2)			µs	≤ 100
Switching frequency				Max. 10000 per second (for minimum 50 mA load current) Max. 1 per second (for inductive nominal load) Max. 16 per second (for lamp nominal load)
Load			Ω	≥ 10
Energy consumption				See diagram
Limited inductive cut-off voltage				-25.8 V ... -15 V
Output voltage in deactivated state			V	≤ 1
Output current in deactivated state			μA	≤ 300
Behavior	For overload			Shutdown with automatic restart
Behavior	For inductive overload			Output can be destroyed
Reverse voltage protection from short pulses				Limited reverse voltage protection up to 0.5 A for 1 s
Overcurrent cutoff			A	> 0.7
Output current upon overvoltage in deactivated state			mA	< 1
Short-circuit protection, overload protection of the outputs				Electronic

1)	Secure externally
2)	With at least 50 mA load current

PROFIBUS telegram data

Type		S20-DO-16/1
Need for parameter data	byte	3
Need for configuration data	byte	6

Error messages to the higher-level control or computer system

Type		S20-DO-16/1
Error message		Short-circuit/overload of digital outputs

Electrical isolation/insulation of the voltage ranges

Type		S20-DO-16/1
Test distance		Test voltage
5 V supply (logic)/24 V supply (peripherals)		500 V AC, 50 Hz, 1 min.
5 V supply (logic)/function earth		500 V AC, 50 Hz, 1 min.
24 V supply (peripherals)/function earth		500 V AC, 50 Hz, 1 min.

Mechanical tests

Type		S20-DO-16/1
Vibration resistance 1)	g	5
Shock 2)		30 g, 11 ms duration, semi-sinusoidal shock pulse
Continuous shock 2)	g	10

1)	Acc. to EN 60068-2-6/IEC 60068-2-6
2)	Acc. to EN 60068-2-27/IEC 60068-2-27

Conformity

Type		S20-DO-16/1
Conforms with
Testing of interference immunity acc. to EN 61000-6-2	Discharge of static electricity (ESD)	Criterion B; 6 kV contact discharge; 8 kV air discharge acc. to EN 61000-4-2/IEC 61000-4-2
	Electro-magnetic fields	Criterion A; field strength: 10 V/m acc. to EN 61000-4-3/IEC 61000-4-3
	Fast transients (burst)	Criterion B; 2 kV acc. to EN 61000-4-4/IEC 61000-4-4
	Transient overvoltage (surge)	Criterion B; supply lines DC: ±0.5 kV/±0.5 kV (symmetric/asymmetric) acc. to EN 61000-4-5/IEC 61000-4-5
	Line-fed disturbances	Criterion A; test voltage 10 V acc. to EN 61000-4-6/IEC 61000-4-6
Testing of disturbance transmission acc. to EN 61000-6-3	Radio disturbance characteristics	Class B acc. to EN 55022

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		S20-DO-16/1
A	mm	35
B	mm	126.1
C	mm	54
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
