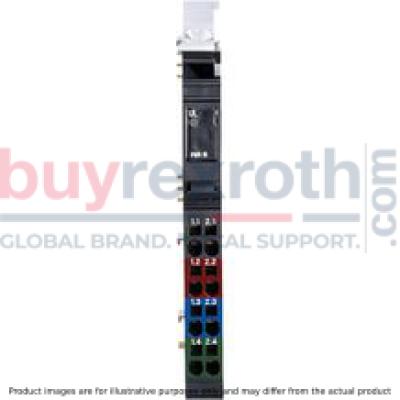

INTERFACE MODULE R-IB IL 24 PWR IN/R/L-0.8A-PAC

Manufacturer: Bosch Rexroth

Material #: R911172896

Model : R-IB IL 24 PWR IN/R/L-0.8A-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL 24 PWR IN/R/L-0.8A-PAC (R911172896) is a specialized module designed to enhance the performance of an Inline station by providing an additional logic voltage UL when the maximum load on the bus coupler has been reached. This module operates by applying a 24 V DC input voltage U V, which is then converted into the necessary logic voltage to support continuous system operations. It ensures a stable and reliable power supply with its output capability of 0.8A, catering specifically to systems that demand a higher logic voltage supply for optimal functionality. Equipped with essential accessories, including a connection plug and a labeling field, this Inline boost module is engineered for seamless integration into existing setups. The labeling field allows for easy identification and maintenance, contributing to an organized and efficient industrial environment. As an integral component of power management within automated systems, the R-IB IL 24 PWR IN/R/L-0.8A-PAC module represents Bosch Rexroth's commitment to high-quality and durable products that meet the rigorous demands of modern industrial applications. Its robust design ensures long-term performance, making it a valuable addition to any operation requiring enhanced power distribution capabilities within their Inline stations.

$414.03 USD

More are expected on February 3, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as February 3, 2025 when ordered in

INTERFACE MODULE R-IB IL 24 PWR IN/R/L-0.8A-PAC

Inline connector

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Unpacked Weight: 0.089 kg

This module is designed for use within an Inline station. If the maximum load on the bus coupler for the logic voltage (UL) has been reached, then you can use this module in order to provide this voltage again. To do so, a 24 V DC voltage (U24 V) is applied at the module; this voltage generates the logic voltage (UL).

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual

Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Width	12.2
Productgroup ID	4,6
Height	120
Maximum current	0.8
International protection code	IP20
Permissible air humidity (storage)	10-95
Permissible air humidity (transport)	10-95
Connection type	Zugfederanschluss
Depth	71.5
Weight	0.089
Ambient temperature (during operation)	-25-55
Ambient temperature (storage and transport)	-25-85
Conductor cross-section	Rigid: 0.08-0.5 mm²,Flexible: 0.08-0.5 mm²,AWG: 28 ... 16

General data

Type		R-IB IL 24 PWR IN/R/L-0.8A-PAC
Color		Gray
Weight 1)	g	65
Mounting type		Support rail
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 %, EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 %, EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20
Protection class		III, IEC 61140, EN 61140, VDE 0140-1

1)	Including plug

Connection data

Type		R-IB IL 24 PWR IN/R/L-0.8A-PAC
Designation		Inline connection plug
Connection type		Spring-cage connection
Conductor cross-section solid/flexible/AWG		0.08 mm² ... 1.5 mm² 0.08 mm² ... 1.5 mm² 28 ... 16

Interface local bus

Type		R-IB IL 24 PWR IN/R/L-0.8A-PAC
Transmission speed	kBit/s MBit/s	500 2

Inline potentials/performance balance

Type		R-IB IL 24 PWR IN/R/L-0.8A-PAC
24 V power feed U24V for generating UL	V DC	24
Supply voltage range U24V		19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Minimum current consumption from U24V	mA	13
Maximum current consumption from U24V	mA	274
Logic voltage UL 1)		7.5 V DC ±5 %
Power supply to UL	A	≤ 0.8
Overvoltage protection		Yes; input protection diodes are destroyed by permanent overload. Pulse loads up to 1500 W are short-circuited by the input protection diode.
Reverse polarity protection		Serial diode in the feed path of the mains power supply; in the event of a fault, only low current flows. In the event of a fault no fuse is tripped in the external mains power supply. If you want to install a fuse for the 24-V power feed, use a fuse with 2 A time-lag.

1)	Via potential jumpers

Power dissipation

Type		R-IB IL 24 PWR IN/R/L-0.8A-PAC
Power dissipation (device)		≤0.6 W (device total)

PROFIBUS telegram data

Type		R-IB IL 24 PWR IN/R/L-0.8A-PAC
Need for parameter data	byte	0
Need for configuration data	byte	0

Electrical isolation/insulation of the voltage ranges

Type		R-IB IL 24 PWR IN/R/L-0.8A-PAC
Test distance		Test voltage
7.5 V-logic, 24 V analog supply/function earth		500 V AC, 50 Hz, 1 min.
7.5 V logic, 24 V analog supply/24 V main, 24 V segment supply		500 V AC, 50 Hz, 1 min.
24 V main, 24 V segment supply/function earth		500 V AC, 50 Hz, 1 min.

Error messages to the higher-level control or computer system

Type		R-IB IL 24 PWR IN/R/L-0.8A-PAC
Error message		None

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		R-IB IL 24 PWR IN/R/L-0.8A-PAC
A	mm	12.2
B	mm	120
C	mm	71.5
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
