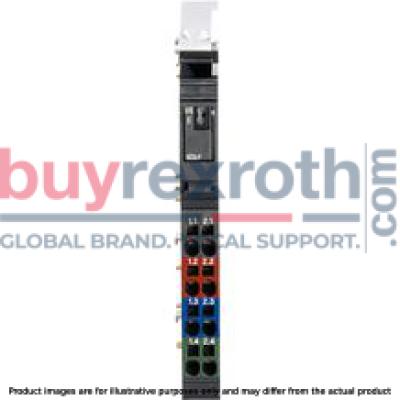

INTERFACE MODULE R-IB IL 24 SEG/F-PAC

Manufacturer: Bosch Rexroth

Material #: R911170790

Model : R-IB IL 24 SEG/F-PAC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth R-IB IL 24 SEG/F-PAC (R911170790) is a specialized module designed for integration within an Inline station, enabling the construction of a fuse-protected subcircuit segment within a main electrical circuit. This particular model is characterized by its ability to function as part of a voltage distribution control system, utilizing DC voltage. It is important to note that this module is not equipped to supply power on its own and, as such, lacks reverse polarity and overvoltage protection features. The R-IB IL 24 SEG/F-PAC module comes complete with essential accessories including a connection plug and a labeling field, which facilitate easy installation and maintenance. The inclusion of these accessories ensures that users have everything necessary for straightforward implementation into their systems. The module's design allows for efficient organization of electrical circuits by providing fuse protection for specific segments, enhancing safety and reliability in various applications. In summary, the Bosch Rexroth R-IB IL 24 SEG/F-PAC is an integral component for users looking to improve their electrical circuit management through the creation of secure, fuse-protected segments within larger systems. Its compatibility with Inline stations makes it a versatile choice for those in need of segmented voltage distribution solutions.

$97.01 USD

More are expected on December 26, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as December 26, 2024 when ordered in

INTERFACE MODULE R-IB IL 24 SEG/F-PAC

Inline connector

The modular, compact equipment configuration of the I/O systems from Rexroth offers you maximum flexibility for the cost-effective implementation of your individual machine concepts. The I/O modules have robust design and mechanics, are easy to use, have a quick reaction time and are quick to install – both in the control cabinet and in the field. Open communication standards allow you perfect integration of the I/O modules with maximum availability.

Unpacked Weight: 0.088 kg

This module is designed for use within an Inline station. It can be used to build a fuse-protected sub-circuit (segment circuit) within a main circuit. The module cannot be used to supply power, so it does not come with any reverse polarity or overvoltage protection.

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual

Air pressure (operation)	70-106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport)	70-106 kPa (up to 3,000 m above sea level)
Rated value; 24V periphery (main circuit UM)	The voltage is fed in the bus coupler or the power terminal. At the segment terminal, no connections are required for the supply voltage. The corresponding terminal points are only available for test purposes.
Width	12.2
Productgroup ID	4,6
Height	120
Maximum current	8
International protection code	IP20
Permissible air humidity (storage)	10-95
Permissible air humidity (transport)	10-95
Connection type	Zugfederanschluss
Depth	71.5
Weight	0.088
Ambient temperature (during operation)	-25-55
Ambient temperature (storage and transport)	-25-85
Conductor cross-section	Rigid: 0.2-1.5 mm²,Flexible: 0.2-1.5 mm²,AWG: 24 ... 16

General data

Type		R-IB IL 24 SEG/F-PAC
Weight 1)	g	59
Ambient temperature (operation)		-25 °C ... +55 °C
Ambient temperature (storage/transport)		-25 °C ... +85 °C
Permissible relative humidity (operation)		10 % ... 95 %, EN 61131-2
Permissible relative humidity (storage/transport)		10 % ... 95 %, EN 61131-2
Air pressure (operation)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)		70 kPa ... 106 kPa (up to 3000 m above sea level)
Protection type		IP20, IEC 60529
Protection class		III, EN 61113-2, IEC 61113-2

1)	Including plug

Connection data

Type		R-IB IL 24 SEG/F-PAC
Designation		Inline connection plug
Connection type		Tension spring modules
Conductor cross-section solid/flexible/AWG		0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 24 ... 16

Interface local bus

Type		R-IB IL 24 SEG/F-PAC
Transmission speed 1)	kBit/s MBit/s	500 2

1)	Can be used with this transmission speed in Inline stations, if required

24 V peripheral supply
The voltage is fed in the bus coupler or in the feed module. Connections for the supply voltage are not needed at the segment module. The corresponding module points are available only for test purposes.

Permissible total current in the potential jumpers of the main and segment circuits

Type		R-IB IL 24 SEG/F-PAC
Permissible total current in the potential jumpers	A	8
Nominal module current	A	6

Protective devices

Type		R-IB IL 24 SEG/F-PAC
Overload/short-circuit protection in the segment circuit		Safety fuse 5 x 20 mm with 6.3 A time-lag (maximum value of fuse 8 A. For fuses with a value of greater than 2 A, only use slow fuses!)
Reverse polarity protection		Protection components in the feed module or in the bus coupler
Overvoltage protection		Protection components in the feed module or in the bus coupler

Electrical isolation/insulation of the voltage ranges

Type		R-IB IL 24 SEG/F-PAC
Common potentials
24 V main voltage UM, 24 V segment voltage US and GND are on the same potential. FE represents a separate potential area.
Separate potentials in the system of bus coupler/feed module and I/O module
Test distance		Test voltage
5 V supply incoming remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
5 V supply to further remote bus/7.5 V supply (bus logic)		500 V AC, 50 Hz, 1 min.
7.5 V supply (bus logic)/24 V supply (peripherals)		500 V AC, 50 Hz, 1 min.
24 V supply (peripherals)/function earth		500 V AC, 50 Hz, 1 min.

Error messages to the higher-level control or computer system

Type		R-IB IL 24 SEG/F-PAC
Error message		None

Approvals
The current approvals can be found at www.boschrexroth.com.

Dimensions

Type		R-IB IL 24 SEG/F-PAC
A	mm	12.2
B	mm	120
C	mm	71.5
Note on dimensions		The depth applies when using a support rail TH 35-7.5 (acc. to EN 60715).
