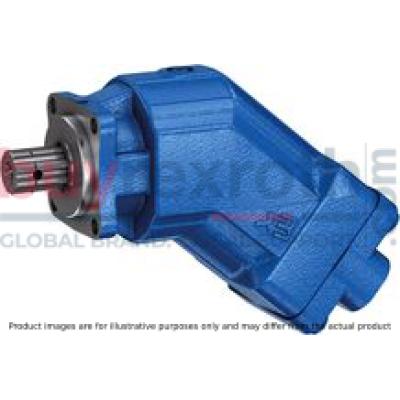

AXIAL-PISTON PUMP A17FO080/10NLWK0E81-0

Manufacturer: Bosch Rexroth

Material #: R902162396

Model : A17FO080/10NLWK0E81-0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth A17FO080/10NLWK0E81-0 (R902162396) is a high-quality axial piston pump designed for hydrostatic drives in open circuits. This fixed displacement unit is part of the AFO series, recognized for its bent axis design that ensures efficient operation across various commercial vehicle applications, including street tippers, dump trucks, HGV loading cranes, tankers, and municipal vehicles. With a nominal pressure of 280 bar and a maximum pressure of 350 bar, it is engineered to handle medium-pressure demands with ease. The A17FO080/10NLWK0E81-0 excels in providing a flow that is proportional to drive speed and displacement. Its high total efficiency and long service life make it a reliable component in demanding work environments. The pump's design allows for simple adjustments of both drive and rotational direction without the need for drain lines at switching points. It features an optimized weight due to its diecast aluminum housing which contributes to lower operating noise levels and excellent suction characteristics. This model boasts an impressive maximum rotational speed and can operate without a test certificate. It comes with a splined shaft similar to DIN ISO 14 standards and uses FKM fluorocarbon rubber seals for enhanced durability under various conditions. The flange and shaft are specifically designed for direct mounting on the power takeoff of commercial vehicles, ensuring a secure fit and straightforward installation. With its robust construction, the A17FO080/10NLWK0E81-0 guarantees reliable performance in open circuit applications where medium pressure capabilities are required. Its optimized design not only extends the service life but also maximizes operational efficiency in commercial vehicle applications.

$3,956.00 USD

More are expected on October 29, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as October 29, 2024 when ordered in

AXIAL-PISTON PUMP A17FO080/10NLWK0E81-0

A17FO, fixed displacement unit, open circuit, medium pressure, size: 80 cm³

A17FNO is a displacement pump with axial tapered piston transmission in bent axis design for hydrostatic drives in the open circuit. The pump has been especially designed for use in commercial vehicles, e.g. street tippers, dump trucks, HGV loading cranes, tankers, municipal vehicles. The flow is proportional to the drive speed and the displacement.

Unpacked Weight: 14 kg

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Port plate for service lines	Threaded port A a. S rear
Suction port S	DIN ISO 228 - G 1 1/4 open
Paint/top coat	without
Max. rotational speed	2130
Port R	DIN 3852 M10x1 plugged
Test certificate	without
Series	10
Productgroup ID	7,21,22,23,24,25
Shaft end	Splined shaft similar to DIN ISO 14
Sealing material	FKM (fluorocarbon rubber) 2 WDR
Type of actuation	Pump, open circuit
Test certificate language code	Without
Additional functions	without
Product family	A17F
Connection and fastening threads	metric
Max. operating pressure	350.0
Suction adapter	without
Classification society (external)	Standard without acceptance
Paint/base coat	without
Max. flow	171.0
Direction of rotation	counter-clockwise
Port A	DIN ISO 228 - G 1 open
Product (axial piston unit)	A17FO
Mounting flange	ISO 7653-1985
Size (displacement)	80
Weight	14

Flange and shaft designed for direct mounting on the power take-off of commercial vehicles Optimized weight by cast aluminum housing No drain line required Low operating noise Simple adjustment of rotatonal direction Excellent suction characteristics High total efficiency Long service life Bent-axis design

01	02	03		04	05	06	07	08	09	10		11
A17F	O		/	10	N	L	W	K0	E8	1	‒

Axial piston unit
01	Bent-axis design, fixed, for commercial vehicles (truck)							A17F
Operating mode
02	Pump, open circuit							O
Nominal size
03	Geometric displacement, see tables of values	023	032	045	063	080	107
Series
04	Series 1, index 0							10
Design of ports and fastening threads
05	Metric, port threads with profiled sealing ring according to DIN 3852							N
Direction of rotation1)
06	Viewed on drive shaft, counter-clockwise							L
Seal material
07	FKM (fluor-caoutchouc) including the 2 shaft seal rings in FKM							W
Mounting flange
08	Special flange ISO 7653-1985 (for trucks)							K0
Drive shaft
09	Splined shaft similar to DIN ISO 14 (for trucks)							E8
Working port
10	Threaded ports A and S at rear							1
Standard/ special version
11	Standard version							0
	Special version							S

1)	For changing the direction of rotation: see Technical data, chapter "Direction of rotation"

Table of values

Size				23	32	45	63	80	107
Displacement geometric, per revolution		Vg	cm³	22.9	32	45.6	63	80.4	106.7
Nominal pressure		pnom	bar	350	350	350	350	350	350
Maximum pressure		pmax	bar	400	400	400	400	400	400
Maximum speed		nnom 1)	rpm	3050	2750	2650	2200	2150	2000
Maximum speed		nmax 2)	rpm	4300	3900	3800	3200	3100	2800
Flow	at nnom	qV	l/min	70	88	121	139	173	213
Power	at nnom and pnom	P	kW	41	51	71	81	101	124
Torque	at pnom	M	Nm	127	178	254	351	448	594
Rotary stiffness		c	kNm/rad	2.56	3.12	4.18	6.25	8.73	11.2
Moment of inertia for rotary group		JTW	kg·m²	0.0012	0.0012	0.003	0.0042	0.0072	0.0116
Maximum angular acceleration		ɑ	rad/s²	6500	6500	14600	7500	6000	4500
Case volume		V	l	0.25	0.29	0.4	0.5	0.6	0.75
Mass moment		MG	Nm	4.7	4.7	8.6	9.9	15.3	20
Weight (approx.)		m	kg	5.9	5.9	8.4	9.3	12.3	15

1)	These values are valid at: - an absolute pressure of pabs = 1 bar at suction port S - for the optimum viscosity range from vopt = 36 to 16 mm2/s - with hydraulic fluid based on mineral oils
2)	Maximum speed (limiting speed) with increased inlet pressure pabs at suction port S, see the following diagram.

Maximum speed

Note

The values in the table are theoretical values, without consideration of efficiencies and tolerances. The values are rounded. Exceeding the maximum or falling below the minimum permissible values can lead to a loss of function, a reduction in operational service life or total destruction of the axial piston unit. Other permissible limit values, such as speed variation, reduced angular acceleration as a function of the frequency and the permissible angular acceleration at start (lower than the maximum angular acceleration) can be found in data sheet 90261.

Determining the operating characteristics
Flow		[l/min]
Torque		[Nm]
Power		[kW]

Key
Vg	Displacement per revolution [cm3]
Δp	Differential pressure [bar]
n	Rotational speed [rpm]
ηv	Volumetric efficiency
ηhm	Hydraulic-mechanical efficiency
ηt	Total efficiency (ηt = ηv • ηhm)

Hydraulic fluid

The axial piston unit is designed for operation with HLP mineral oil according to DIN 51524.

Application instructions and requirements for hydraulic fluids should be taken from the following data sheets before the start of project planning:

90220: Hydraulic fluids based on mineral oils and related hydrocarbons 90221: Environmentally acceptable hydraulic fluids 90222: Fire-resistant, water-free hydraulic fluids (HFDR, HFDU)

The axial piston unit is not suitable for operation with water-containing HF hydraulic fluids.

For operation with HFD hydraulic fluids please note limitations regarding technical data. Please contact us.

Viscosity and temperature of hydraulic fluids

	Viscosity	Temperature1)	Comment
Cold start	νmax ≤ 1600 mm²/s	ϑSt ≥ -25 °C	t ≤ 3 min, without load (p ≤ 50 bar), n ≤ 1000 rpm, permissible temperature difference between axial piston unit and hydraulic fluid max. 25 K
Warm-up phase	ν = 400 … 1600 mm²/s		t ≤ 15 min, p ≤ 0.7 • pnom and n ≤ 0.5 • nnom
Continuous operation	ν = 10 … 400 mm²/s3)	ϑ ≤ +103 °C	measured at bleed port R (ΔT = ca. 12 K between the bearing/shaft seal and port R)
Continuous operation	νopt = 16 … 36 mm²/s		range of optimum operating viscosity and efficiency
Short-term operation	νmin = 7 … 10 mm²/s	ϑ ≤ +103 °C	t ≤ 3 min, p ≤ 0.3 • pnom

1)	If the specified temperatures cannot be maintained due to extreme operating parameters, please contact us.
2)	The FKM shaft seal may be used for case drain temperatures from -25 °C to +115 °C. For the temperature range below -25 °C, please contact us.
3)	Equates e.g. with the VG 46 a temperature range of +5 °C to +85 °C (see selection diagram)

Explanatory note regarding the selection of hydraulic fluid

The hydraulic fluid should be selected such that the operating viscosity in the operating temperature range is within the optimum range (vopt see selection diagram).

Selection diagram

Filtration of the hydraulic fluid

Finer filtration improves the cleanliness level of the hydraulic fluid, which increases the service life of the axial piston unit.

A cleanliness level of at least 20/18/15 is to be maintained according to ISO 4406.

At a hydraulic fluid viscosity of less than 10 mm²/s (e.g. due to high temperatures in short-term operation) at the drain port, a cleanliness level of at least 19/17/14 according to ISO 4406 is required.

For example, the viscosity is 10 mm²/s at:

HLP 32 a temperature of 73°C HLP 46 a temperature of 85°C

Operating pressure range

Pressure at working port A or B (high-pressure side)			Definition
Nominal pressure	pnom	350 bar	The nominal pressure corresponds to the maximum design pressure.
Maximum pressure	pmax	400 bar	The maximum pressure corresponds to the maximum operating pressure within the single operating period. The sum of the single operating periods must not exceed the total operating period.
Single operating period		5 s
Total operating period		50 h
Minimum pressure	pHP min	10 bar	Minimum pressure on high-pressure side (port A or B) required to prevent damage to the axial piston unit.
Rate of pressure change	RA max	9000 bar/s	Maximum permissible rate of pressure build-up and reduction during a pressure change over the entire pressure range.
Pressure at suction port S (inlet)			Definition
Minimum pressure	ps min	0.8 bar absolute	Minimum pressure at inlet (suction port S) that is required to avoid damage to the axial piston unit. The minimum required pressure is dependent on the speed of the axial piston unit. (see diagram "Maximum speed")
Maximum pressure	ps max	2 bar absolute

Note

Working pressure range valid when using hydraulic fluids based on mineral oils. Values for other hydraulic fluids, please contact us.

Pressure definition

1)	Total operating period = t1 + t2 + ... + tn

Rate of pressure change

Permissible axial forces of the drive shaft

Size			23	32	45	63	80	107
Maximum axial force, when standstill or in non-pressurized conditions	+ Fax max	N	0
	- Fax max	N	24	33	43	53	60	71

Notes

The values given are maximum values and do not apply to continuous operation. The axial force in direction Faxmust be avoided as this would reduce the bearing life service. Radial forces are not permissible.

Direction of rotation

The direction of rotation of the axial piston unit is defined by means of a pressure nipple screwed into the service line port and can easily be changed.

By changing the pressure nipple, the service line port and the suction port are exchanged. This is e.g. required when mounting at a PTO with an counter-clockwise direction of rotation.

The process of converting the pressure nipple can be seen from the instruction manual (91520-01-B, chapter 6.4.2 “Direction of rotation and changing the direction of rotation”).

Direction of rotation on delivery

On delivery, the pressure nipple (1) is pre-assembled in the right service line port of the axial piston unit. The permissible drive direction of the pump looking at the drive shaft: counter-clockwise. The power take-off turns clockwise.

Note

The pressure nipple is pre-assembled on delivery and must be tightened to the torque specified for the thread size before installation (see instruction manual).

1)	Center bore according to DIN 332 (thread according to DIN 13)

Size	D1	D3	D4	D5	D6	D7	D8	D9	D11	D12	D13	D14	D15	D16	D17	D18	D19	D20	D21	D22	D23	D24	D25	D26	D27	D28	D29
Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
23	80	185	103	58	105	-	15	9	43	25.8	81	88	173	-	159	76	88	91	88	51.8	0.7	96	105	107	80	80	13
32	80	185	103	58	105	-	15	9	43	25.8	81	88	173	-	159	76	88	91	88	51.8	0.7	96	105	107	80	80	13
45	80	223	119	63	108	103	15	9	43	29	104	102	210	132	194	89	108	108	108	58.8	0.8	96	105	107	80	80	13
63	80	232	126	63	108	103	15	9	43	32	109	110	219	132	203	96	108	-	108	64	0.8	96	105	107	80	80	13
80	80	261	140	67.5	121	114	15	9	43	36	127	120	245	118	227	105	117	124	117	69	1	96	105	107	80	80	13
107	80	272	149	73.5	133	120	15	9	43	41	136	129	256	-	238	114	129	-	129	77	1	96	105	107	80	80	13

Ports

Size			23	32	45	63	80	107
A	Working port	Size	G 1/2; 14 mm deep		G 3/4; 16 mm deep		G 1; 18 mm deep
		Standard	DIN ISO 228
		State on delivery	With protective cover (must be connected)
S	Suction port	Size	G 3/4; 16 mm deep		G 1; 18 mm deep		G 1 1/4; 20 mm deep
		Standard	DIN ISO 228
		State on delivery	With protective cover (must be connected)
R	Air bleed port	Size	M10 x 1; 8 mm deep
		Standard 1)	DIN 3852
		State on delivery 2)	Plugged

1)	The spot face can be deeper than specified in the appropriate standard.
2)	Unless otherwise specified. Other layouts on request.

Installation instructions

General

During commissioning and operation, the axial piston unit must be filled with hydraulic fluid and air bled. This must also be observed following a relatively long standstill as the axial piston unit may drain back to the reservoir via the hydraulic lines. The pump housing is internally connected to the suction chamber. A separate drain line from the housing to the reservoir is not needed. To achieve favorable noise values, all connecting lines should be decoupled by using elastic elements and above-reservoir installation is to be avoided. In all operating conditions, the suction and drain lines must lead into the reservoir below the minimum fluid level. The permissible suction height hS results from the overall loss of pressure; it must not, however, be higher than hS max = 800 mm. The minimum suction pressure at port S must also not fall below 0,8 bar absolute during operation and during cold start.

Installation position

See the following examples 1 to 4.

Further installation positions are possible upon request. Recommended installation position: 1 and 2.

Below-tank installation (standard)

Below-tank installation is at hand if the axial piston unit is installed below the minimum liquid level outside the tank.

Installation position	Air bleeding	Filling
1	R	S
2	‒	S

Above-reservoir installation

Above-reservoir installation means that the axial piston unit is installed above the minimum fluid level of the reservoir.

Installation position	Air bleeding	Filling
3	R	F
4	S	S

Key
F	Filling / Air bleeding
R	Air bleed port
S	Suction port
ht min	Minimum required immersion depth (200 mm)
hmin	Minimum required spacing to reservoir bottom (100 mm)
hS max	Maximum permissible suction height (800 mm)

Note

Connection F is part of the external piping and must be provided on the customer side to simplify the filling and bleeding.

General project planning notes

The axial piston unit is designed to be used in open circuits. The project planning, installation and commissioning of the axial piston unit require the involvement of qualified skilled personnel. Before using the axial piston unit, please read the corresponding instruction manual completely and thoroughly. If necessary, request it from Bosch Rexroth. Before finalizing your design, request a binding installation drawing. The specified datas and notes must be observed. Preservation: Our axial piston units are supplied as standard with preservative protection for a maximum of 12 months. If longer preservative protection is required (maximum 24 months), please specify this in plain text when placing your order. The preservation times are valid under optimal storage conditions. Details of these conditions can be found in the data sheet 90312 or the instruction manual. A pressure relief valve is to be provided in the hydraulic system. Observe the instructions in the instruction manual regarding tightening torques of connection threads and other threaded joints used. The notes in the instruction manual on tightening torques of the port threads and other screw joints must be observed. The ports and fastening threads are designed for the permissible maximum pressure pmax (see instruction manual). The machine or system manufacturer must ensure that the connecting elements and lines correspond to the specified operating conditions (pressure, flow, hydraulic fluid, temperature) with the necessary safety factors. The working ports and function ports are designated only to accommodate hydraulic lines.

Suction adapter

Pump size	Version	Hose nom. width	Material number	Thread K0	K1	K2	K3	K4	K5	K6	K7	K8	K9	SW
Pump size	Version	Hose nom. width	Material number	Thread K0	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
23	straight	1 1/2"	R909831856	G3/4	39	18	33.5	70	54	-	221	132	186	41
	45°	1 1/2"	R909831601	G3/4	39	20	31	101	82	43	259	126	180	36
	90°	1 1/2"	R909831602	G3/4	39	20	31	62	43	81	265	117	171	36
32	straight	1 1/2"	R909831856	G3/4	39	18	33.5	70	54	-	221	132	186	41
	45°	1 1/2"	R909831601	G3/4	39	20	31	101	82	43	259	126	180	36
	90°	1 1/2"	R909831602	G3/4	39	20	31	62	43	81	265	117	171	36
45	straight	1 1/2"	R902600251	G1	39	23.5	33.5	72	54	-	248	139	197	41
	45°	1 1/2"	R909831600	G1	39	26	31	101	82	45	287	132	190	41
	90°	1 1/2"	R909831599	G1	39	26	31	64	44	85	296	127	185	41
63	straight	1 1/2"	R902600251	G1	39	23.5	33.5	72	54	-	257	146	204	41
	straight	2"	R902602028	G1	51	26	44	82	64	-	268	157	215	55
	45°	1 1/2"	R909831600	G1	39	26	31	101	82	45	296	139	197	41
	45°	2"	R902602029	G1	51	26	43	100	81	44	295	145	203	41
	90°	1 1/2"	R909831599	G1	39	26	31	64	44	85	305	134	192	41
	90°	2"	R902602030	G1	51	26	43	62	42	81	305	138	196	41
80	straight	2"	R902600252	G1 1/4	51	30	44	85	65	-	295	168	232	55
	45°	2"	R909831597	G1 1/4	51	34	43	101	81	40	317	156	220	50
	90°	2"	R909831598	G1 1/4	51	35	43	63	43	80	330	144	208	50
107	straight	2"	R902600252	G1 1/4	51	30	44	85	65	-	306	177	245	55
	straight	2 1/2"	R902601630	G1 1/4	63	31	54	82	64	-	308	180	248	65
	45°	2"	R909831597	G1 1/4	51	34	43	101	81	40	328	165	234	50
	45°	2 1/2"	R902601631	G1 1/4	63	35	54	100	81	44	331	169	237	50
	90°	2"	R909831598	G1 1/4	51	35	43	63	43	80	341	153	221	50

The suction adapter is not included in the scope of delivery and must be ordered separately.

Notes on suction line

Keep as short and straight as possible, without bend Use a supporting ring for plastic hoses Use two hose clamps to protect the suction hose against air suction Note pressure resistance of suction hose compared to ambient pressure

Replacing seals

The O-rings used as seals to prevent air from entering the suction line are to be replaced after every removal and new installation in order to guarantee complete sealing.

Material number for O-rings

R909083796: O-ring for suction stud G3/4 R909083802: O-ring for suction stud G1 R909083808: O-ring for suction stud G1¼

Coupling flange

There are special, modified coupling flanges in 4-hole and 6-hole design for the cardan shaft drive.

The coupling flange is not included in the scope of delivery and must be ordered separately.

4-hole coupling flange, complete – ⌀90 mm

Material number: R902060152

6-hole coupling flange, complete – ⌀100 mm

Material number: R902060153

Notes

Assembly of the coupling flange is carried out by pulling onto the drive shaft with the aid of the threaded bore in the drive shaft end. The coupling flange must be clamped on the drive shaft using a socket-head screw. In addition, permanent lubrication should be applied between the drive shaft and the coupling flange. The socket-head screw should be secured in a suitable manner (e.g. gluing with Loctite 276) and tightened with a tightening torque of 130 Nm. Sudden axial impact upon the drive shaft will lead to rotary group damage and therefore must be strictly avoided.

During and shortly after operation, there is a risk of burns on the axial piston unit. Take appropriate safety measures (e.g. by wearing protective clothing).

AXIAL-PISTON PUMP A17FO080/10NLWK0E81-0

Manufacturer: Bosch Rexroth

Material #: R902162396

Model : A17FO080/10NLWK0E81-0

More are expected on October 29, 2024

Table of values

Maximum speed

Note

Hydraulic fluid

Viscosity and temperature of hydraulic fluids

Explanatory note regarding the selection of hydraulic fluid

Selection diagram

Filtration of the hydraulic fluid

Operating pressure range

Note

Pressure definition

Rate of pressure change

Permissible axial forces of the drive shaft

Notes

Direction of rotation

Direction of rotation on delivery

Ports

Installation instructions

General

Installation position

Below-tank installation (standard)

Above-reservoir installation

Note

General project planning notes

Other related documents

Suction adapter

Notes on suction line

Replacing seals

Coupling flange

4-hole coupling flange, complete – ⌀90 mm

6-hole coupling flange, complete – ⌀100 mm

Notes

Related Products

Information

Account
