Z1S10TA05-2TB9-4X/F-120
Manufacturer: Bosch Rexroth
Material #: R901307248
Model : Z1S10TA05-2TB9-4X/F-120
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

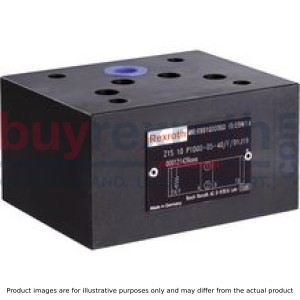

The Bosch Rexroth Z1S10TA05-2TB9-4X/F-120 (R901307248) is a direct operated check valve designed for precise and leakage-free blocking in one direction, while allowing free flow in the opposite direction. This sandwich plate valve is suitable for vertical stackings and adheres to ISO porting patterns, ensuring compatibility with international standards. The valve features a plastic poppet with limited stroke, controlled by a plastic socket that also serves as a seal when mounted at the plate side. The spring installed within the valve aids in the closing movement and maintains the poppet in a closed position when there's no fluid flow, achieving optimal leak-tightness even at low pressures.
The Z1S10TA05-2TB9-4X/F-120 is notable for its various one and two-channel blocking functions and its corrosion-resistant design. Its high-performance plastic poppet contributes to perfect leak-tightness, which is critical for maintaining system integrity. Additionally, users can adjust the valve to specific hydraulic fluids by exchanging external seal rings, enhancing its versatility across different applications.
This model offers ease of maintenance and cost efficiency due to individually available check valve installation sets that allow for replacement of wear parts without needing to replace the entire unit. Optional features include measuring ports and a throttle check valve that can be added according to user requirements.
With a size component series X, this Bosch Rexroth check valve can withstand maximum operating pressures up to bar and facilitate maximum flow rates measured in liters per minute (l/min), making it suitable for various hydraulic applications where unidirectional flow control is essential.
$536.00 USD
More are expected on November 26, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as November 26, 2024 when ordered in
This product is eligible for factory repair.
The valve type Z1S is a direct operated check valve in sandwich plate design.
It is used for the leakage-free blocking in one direction and allows for free flow in the opposite direction.
The stroke of the plastic poppet (1) is limited by the plastic socket (2). The installed spring (3) supports the closing movement. When no fluid flows through the valve, the spring (3) keeps the plastic poppet (1) in closed position. Optimum leak-tightness is already achieved at low pressures (0.1 x pmax).
Notice:
For all installation positions in which the plastic socket (2) is mounted at the plate side ➁, no additional seal ring may be used at this position! At the component side ➀, the seal ring (as usual) seals the assembly installed downstream.
The installed plastic socket (2) has a sealing function and may not be removed or damaged. Protrusion of the plastic socket (2) is required for design reasons (preload). Dependent on the included hydraulic fluid volume and its temperature variations, static pressure changes, which are not caused by leakage at the seat face, may occur.
Type Z1S 10 P.-1.TB.-2-4X/…
|
① |
component side |
|
② |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
① |
component side |
|
② |
plate side |
Version "A.-1"
(check valve in channel A)
Version "B.-2"
(Check valve in channel B)
Version "A.-2B"
(Check valve in channel A and B)
Version "TA.-2-TB9"
(Check valve in channel TA, TB closed)
Version "TA.-2D10"
(Check valve in channel A with orifice Ø1.0 mm)
Version "P.-1TA-2TB9"
(Check valve in channel TA and P, TB closed)
Version "TA.-2TB"
(Check valve in channel TA and TB)
Version "P.-1-.F/XY"
(Check valve in channel P, additionally channels X and Y)
Version "P.-1-4X/F/.MPB"
(check valve in channel P, measuring port P Out G1/4)
Version "TB.-2-TA9"
(Check valve in channel TB, TA closed)
Special versions
Version "P.-1…-068"
(Check valve in channel P, measuring port P (G1/2)
Version "TA.-2-TB9…-120"
(Check valve in channel TA, with tank bracket)
Dimensions in mm
| 1) | on request (depending on order option) |
|
|
Required surface quality of the valve contact surface |
|
① |
component side |
|
② |
plate side |
|
1 |
Name plate |
|
2 |
Identical seal rings for ports A, B, P, TA, and TB; identical seal rings for ports X and Y (plate side) |
|
3 |
Plastic socket (position and number dependent on order option) |
|
4 |
Valve mounting bores |
|
5 |
Porting pattern according to ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05 |
|
6 |
Plug screw for measuring port (position and quantity depend on order option) Connection G1/4: Tightening torque MA = 30 Nm +10 % Connection G1/2 (Version "068"): Tightening torque MA = 80 Nm +10 % |
|
7 |
Dimension of version "120" |
Valve mounting screws (separate order)
|
Size |
Quantity |
Hexagon socket head cap screws |
Material number |
|
10 |
4 |
ISO 4762 - M6 10.9 |
- |
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Check valve installation set: Disassembly and assembly
Disassembly/assembly without causing damage is achieved by using the special multi-purpose tool (1) (separate order, material no. R901182853).
Disassembly:
Push out the check valve installation set.
Assembly:
Insert the check valve installation set and push in the plastic socket (2).
With correct assembly using the special multi-purpose tool (1), the protrusion of the plastic socket (2) is approx. 0.3 mm.
Notice:
Once removed, plastic sockets may no not be used again.
