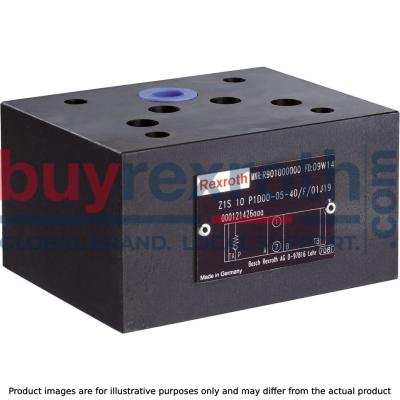

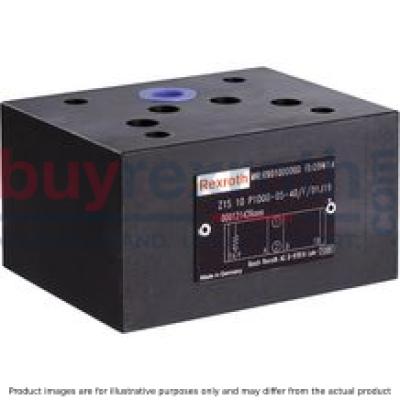

CHECK VALVE SANDWICH PLATE Z1S10A05-2-4X/F
Manufacturer: Bosch Rexroth
Material #: R901274762
Model : Z1S10A05-2-4X/F
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z1S10A05-2-4X/F (R901274762) is a high-performance, mechanically actuated industrial hydraulic valve designed for reliable blocking of oil flow at selected ports. This seat valve is directly actuated with a spool symbol A A and is capable of handling a maximum pressure with an electrical connection. It falls under the product group ID and features multiple ports for versatile applications. The type of actuation is mechanical, and it has been designed to accommodate a specific size and max flow rate.
This valve boasts an interim assembly with connections that adhere to NFPA T.. R D SizeCETOP D and ISO standards for porting patterns, ensuring compatibility with various systems. It has a designated number of switching positions and comes with FKM seals that are compatible with a range of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR.
The Z1S10A05-2-4X/F valve type ZS operates as a direct check valve in a sandwich plate design. It's crafted for the leakage-free blocking of flow in one direction while allowing free flow in the opposite direction. The plastic poppet within the valve is designed for limited stroke controlled by a plastic socket which also aids in closing movement along with an installed spring. This ensures optimal leak tightness even at low pressures.
Furthermore, this sandwich plate valve is suitable for vertical stackings and offers various one- and two-channel blocking functions. The high-performance plastic poppet ensures perfect leak tightness while its corrosion-protected design increases durability. For specific hydraulic fluid requirements, external seal rings can be exchanged easily to adjust the valve accordingly. Additionally, wear parts can be replaced cost-effectively due to the availability of individual check valve installation sets. Optional features include measuring ports and throttle check valves.
In terms of specifications: it belongs to component series X; it can withstand maximum operating pressure (bar) and allows for maximum flow (l/min). The design requires that no additional seal ring be used when the plastic socket is mounted on the plate side due to its integral sealing function which must not be removed or damaged as it's essential for preload purposes based on hydraulic fluid volume and temperature variations.
$536.00 USD
More are expected on March 26, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as March 26, 2025 when ordered in
This product is eligible for factory repair.
Size 10, A2 → A1, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.
Unpacked Weight: 2.260 kg
Sandwich plate valve for use in vertical stackings Porting pattern according to ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05 Various one and two-channel blocking functions Perfect leak-tightness due to poppet made of high-performance plastic Corrosion-protected design Easily adjustable to special hydraulic fluids by exchanging the external seal rings Cost-effective replacement of wear parts thanks to individually available check valve installation sets With measuring ports, optional Throttle check valve, optional
The valve type Z1S is a direct operated check valve in sandwich plate design.
It is used for the leakage-free blocking in one direction and allows for free flow in the opposite direction.
The stroke of the plastic poppet (1) is limited by the plastic socket (2). The installed spring (3) supports the closing movement. When no fluid flows through the valve, the spring (3) keeps the plastic poppet (1) in closed position. Optimum leak-tightness is already achieved at low pressures (0.1 x pmax).
Notice:
For all installation positions in which the plastic socket (2) is mounted at the plate side ➁, no additional seal ring may be used at this position! At the component side ➀, the seal ring (as usual) seals the assembly installed downstream.
The installed plastic socket (2) has a sealing function and may not be removed or damaged. Protrusion of the plastic socket (2) is required for design reasons (preload). Dependent on the included hydraulic fluid volume and its temperature variations, static pressure changes, which are not caused by leakage at the seat face, may occur.
Type Z1S 10 P.-1.TB.-2-4X/…
|
① |
component side |
|
② |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
① |
component side |
|
② |
plate side |
Version "A.-1"
(check valve in channel A)
Version "B.-2"
(Check valve in channel B)
Version "A.-2B"
(Check valve in channel A and B)
Version "TA.-2-TB9"
(Check valve in channel TA, TB closed)
Version "TA.-2D10"
(Check valve in channel A with orifice Ø1.0 mm)
Version "P.-1TA-2TB9"
(Check valve in channel TA and P, TB closed)
Version "TA.-2TB"
(Check valve in channel TA and TB)
Version "P.-1-.F/XY"
(Check valve in channel P, additionally channels X and Y)
Version "P.-1-4X/F/.MPB"
(check valve in channel P, measuring port P Out G1/4)
Version "TB.-2-TA9"
(Check valve in channel TB, TA closed)
Special versions
Version "P.-1…-068"
(Check valve in channel P, measuring port P (G1/2)
Version "TA.-2-TB9…-120"
(Check valve in channel TA, with tank bracket)
Dimensions in mm
| 1) | on request (depending on order option) |
|
|
Required surface quality of the valve contact surface |
|
① |
component side |
|
② |
plate side |
|
1 |
Name plate |
|
2 |
Identical seal rings for ports A, B, P, TA, and TB; identical seal rings for ports X and Y (plate side) |
|
3 |
Plastic socket (position and number dependent on order option) |
|
4 |
Valve mounting bores |
|
5 |
Porting pattern according to ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05 |
|
6 |
Plug screw for measuring port (position and quantity depend on order option) Connection G1/4: Tightening torque MA = 30 Nm +10 % Connection G1/2 (Version "068"): Tightening torque MA = 80 Nm +10 % |
|
7 |
Dimension of version "120" |
Valve mounting screws (separate order)
|
Size |
Quantity |
Hexagon socket head cap screws |
Material number |
|
10 |
4 |
ISO 4762 - M6 10.9 |
- |
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Check valve installation set: Disassembly and assembly
Disassembly/assembly without causing damage is achieved by using the special multi-purpose tool (1) (separate order, material no. R901182853).
Disassembly:
Push out the check valve installation set.
Assembly:
Insert the check valve installation set and push in the plastic socket (2).
With correct assembly using the special multi-purpose tool (1), the protrusion of the plastic socket (2) is approx. 0.3 mm.
Notice:
Once removed, plastic sockets may no not be used again.
