Z1S10B50-2-4X/F
Manufacturer: Bosch Rexroth
Material #: R901285189
Model : Z1S10B50-2-4X/F
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

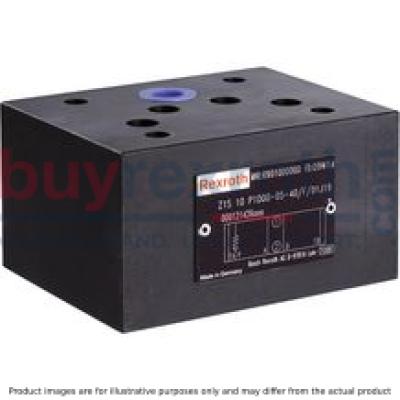

The Bosch Rexroth Z1S10B50-2-4X/F (R901285189) is a high-performance check valve designed for seamless integration into hydraulic systems requiring precise, leak-free blocking in one direction and free flow in the opposite. This direct-operated check valve is characterized by its sandwich plate design, which makes it an ideal choice for vertical stacking applications. It conforms to ISO porting patterns, ensuring compatibility with a wide range of systems.
The valve's functionality is driven by a durable plastic poppet that ensures optimum leak tightness even at low pressures. The poppet's motion is restricted by a plastic socket, which also serves as a seal when mounted on the plate side of the assembly. A pre-installed spring aids in the closing action of the valve and maintains the poppet in a closed position when there's no fluid flow.
Designed with corrosion protection in mind, the Z1S10B50-2-4X/F ensures longevity even in harsh working environments. For systems with special hydraulic fluid requirements, external seal rings can be exchanged to accommodate various fluid types. Additionally, this model offers flexibility through optional features such as measuring ports and throttle check valves.
With a component series X marking, this Bosch Rexroth valve can withstand maximum operating pressures up to bar and handle maximum flow rates of l/min. Its construction allows for cost-effective maintenance; wear parts can be replaced easily thanks to individually available check valve installation sets.
In summary, the Bosch Rexroth Z1S10B50-2-4X/F (R901285189) offers reliable performance for hydraulic applications needing unidirectional blocking capabilities coupled with ease of maintenance and adaptability to specific hydraulic fluid requirements.
$625.00 USD
More are expected on January 21, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as January 21, 2025 when ordered in
This product is eligible for factory repair.
The valve type Z1S is a direct operated check valve in sandwich plate design.
It is used for the leakage-free blocking in one direction and allows for free flow in the opposite direction.
The stroke of the plastic poppet (1) is limited by the plastic socket (2). The installed spring (3) supports the closing movement. When no fluid flows through the valve, the spring (3) keeps the plastic poppet (1) in closed position. Optimum leak-tightness is already achieved at low pressures (0.1 x pmax).
Notice:
For all installation positions in which the plastic socket (2) is mounted at the plate side ➁, no additional seal ring may be used at this position! At the component side ➀, the seal ring (as usual) seals the assembly installed downstream.
The installed plastic socket (2) has a sealing function and may not be removed or damaged. Protrusion of the plastic socket (2) is required for design reasons (preload). Dependent on the included hydraulic fluid volume and its temperature variations, static pressure changes, which are not caused by leakage at the seat face, may occur.
Type Z1S 10 P.-1.TB.-2-4X/…
|
① |
component side |
|
② |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
① |
component side |
|
② |
plate side |
Version "A.-1"
(check valve in channel A)
Version "B.-2"
(Check valve in channel B)
Version "A.-2B"
(Check valve in channel A and B)
Version "TA.-2-TB9"
(Check valve in channel TA, TB closed)
Version "TA.-2D10"
(Check valve in channel A with orifice Ø1.0 mm)
Version "P.-1TA-2TB9"
(Check valve in channel TA and P, TB closed)
Version "TA.-2TB"
(Check valve in channel TA and TB)
Version "P.-1-.F/XY"
(Check valve in channel P, additionally channels X and Y)
Version "P.-1-4X/F/.MPB"
(check valve in channel P, measuring port P Out G1/4)
Version "TB.-2-TA9"
(Check valve in channel TB, TA closed)
Special versions
Version "P.-1…-068"
(Check valve in channel P, measuring port P (G1/2)
Version "TA.-2-TB9…-120"
(Check valve in channel TA, with tank bracket)
Dimensions in mm
| 1) | on request (depending on order option) |
|
|
Required surface quality of the valve contact surface |
|
① |
component side |
|
② |
plate side |
|
1 |
Name plate |
|
2 |
Identical seal rings for ports A, B, P, TA, and TB; identical seal rings for ports X and Y (plate side) |
|
3 |
Plastic socket (position and number dependent on order option) |
|
4 |
Valve mounting bores |
|
5 |
Porting pattern according to ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05 |
|
6 |
Plug screw for measuring port (position and quantity depend on order option) Connection G1/4: Tightening torque MA = 30 Nm +10 % Connection G1/2 (Version "068"): Tightening torque MA = 80 Nm +10 % |
|
7 |
Dimension of version "120" |
Valve mounting screws (separate order)
|
Size |
Quantity |
Hexagon socket head cap screws |
Material number |
|
10 |
4 |
ISO 4762 - M6 10.9 |
- |
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Check valve installation set: Disassembly and assembly
Disassembly/assembly without causing damage is achieved by using the special multi-purpose tool (1) (separate order, material no. R901182853).
Disassembly:
Push out the check valve installation set.
Assembly:
Insert the check valve installation set and push in the plastic socket (2).
With correct assembly using the special multi-purpose tool (1), the protrusion of the plastic socket (2) is approx. 0.3 mm.
Notice:
Once removed, plastic sockets may no not be used again.
