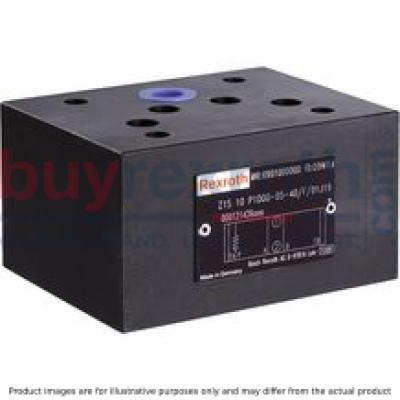

CHECK VALVE SANDWICH PLATE Z1S10P05-2-4X/F

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z1S10P05-2-4X/F (R901280744) is a seat valve characterized by its direct actuation and specialization in mechanically blocking the oil flow at selected ports. This industrial hydraulic valve is part of the high performance range, designed to ensure reliable operation in critical applications. It features a spool symbol P P and is capable of handling a maximum pressure with an electrical connection description that adheres to stringent quality standards. The Z1S10P05-2-4X/F valve boasts a compact size and is equipped with mechanical actuation, allowing for precise control over the max flow through the system. The type of connection for this valve is designed for interim assembly, ensuring compatibility with various hydraulic systems. The connection diagram follows NFPA T.. R D SizeCETOP D standards, as well as ISO connection diagram specifications. This model comes with multiple ports and switching positions, which adds to its versatility in application. The weight and dimensions are optimized for seamless integration into existing systems without adding undue bulk or disrupting the flow dynamics. The seals are made from FKM, which provides excellent resistance to high temperatures and chemical exposure, ensuring durability and longevity. Hydraulic fluids compatible with this valve include HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR types. This variety allows for flexible usage across different systems with diverse fluid requirements. The Z1S10P05-2-4X/F valve is engineered as a sandwich plate valve suitable for vertical stackings with porting patterns conforming to ISO standards. Its unique design features a poppet made from high-performance plastic that ensures perfect leaktightness even at low pressures. Additionally, the corrosion-protected design increases its suitability for harsh environments while maintaining cost-effectiveness through easy adjustment to special hydraulic fluids by exchanging external seal rings. For maintenance or repair purposes, wear parts can be replaced efficiently using individually available check valve installation sets. Optional features such as measuring ports and throttle check valves offer further customization based on specific application needs.
