Z1S10P05-1-4X/F/MPB-068
Manufacturer: Bosch Rexroth
Material #: R901274750
Model : Z1S10P05-1-4X/F/MPB-068
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

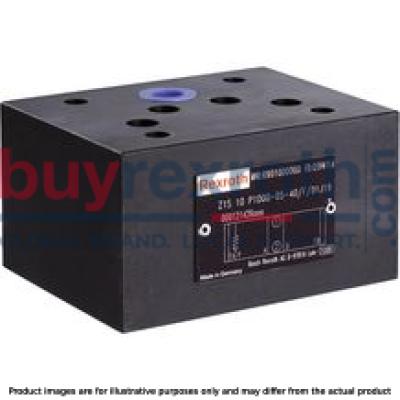

The Bosch Rexroth Z1S10P05-1-4X/F/MPB-068 (R901274750) is a high-performance direct operated check valve designed for leak-free blocking in one direction while allowing free flow in the opposite direction. This sandwich plate valve is suitable for vertical stacking applications and adheres to ISO porting patterns, ensuring compatibility with a wide range of hydraulic systems. It features a high-performance plastic poppet that ensures perfect leaktightness even at low pressures, which is crucial for efficient and reliable operation in hydraulic circuits.
The design of the Z1S10P05-1-4X/F/MPB-068 incorporates a plastic socket that limits the poppet's stroke and doubles as a sealing element when mounted at the plate side of the assembly. This unique feature eliminates the need for an additional seal ring in this position, simplifying installation and maintenance. The spring installed within the valve aids in closing movement and maintains the poppet in a closed position when there's no fluid flow, enhancing the valve's sealing capabilities.
For ease of maintenance and cost efficiency, individual check valve installation sets are available for replacing wear parts. The corrosion-protected design extends the valve's service life even in harsh operating environments. Additionally, this model offers customization options such as throttle check valves and measuring ports to accommodate specific application requirements. With its robust construction and versatile design, including various one-channel and two-channel blocking functions, the Bosch Rexroth Z1S10P05-1-4X/F/MPB-068 check valve is an optimal choice for ensuring secure hydraulic operations across numerous applications. It supports a maximum operating pressure of up to 350 bar and can handle maximum flow rates up to 60 l/min, making it suitable for a broad range of hydraulic control tasks.
$922.00 USD
More are expected on November 29, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as November 29, 2024 when ordered in
This product is eligible for factory repair.
The valve type Z1S is a direct operated check valve in sandwich plate design.
It is used for the leakage-free blocking in one direction and allows for free flow in the opposite direction.
The stroke of the plastic poppet (1) is limited by the plastic socket (2). The installed spring (3) supports the closing movement. When no fluid flows through the valve, the spring (3) keeps the plastic poppet (1) in closed position. Optimum leak-tightness is already achieved at low pressures (0.1 x pmax).
Notice:
For all installation positions in which the plastic socket (2) is mounted at the plate side ➁, no additional seal ring may be used at this position! At the component side ➀, the seal ring (as usual) seals the assembly installed downstream.
The installed plastic socket (2) has a sealing function and may not be removed or damaged. Protrusion of the plastic socket (2) is required for design reasons (preload). Dependent on the included hydraulic fluid volume and its temperature variations, static pressure changes, which are not caused by leakage at the seat face, may occur.
Type Z1S 10 P.-1.TB.-2-4X/…
|
① |
component side |
|
② |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
① |
component side |
|
② |
plate side |
Version "A.-1"
(check valve in channel A)
Version "B.-2"
(Check valve in channel B)
Version "A.-2B"
(Check valve in channel A and B)
Version "TA.-2-TB9"
(Check valve in channel TA, TB closed)
Version "TA.-2D10"
(Check valve in channel A with orifice Ø1.0 mm)
Version "P.-1TA-2TB9"
(Check valve in channel TA and P, TB closed)
Version "TA.-2TB"
(Check valve in channel TA and TB)
Version "P.-1-.F/XY"
(Check valve in channel P, additionally channels X and Y)
Version "P.-1-4X/F/.MPB"
(check valve in channel P, measuring port P Out G1/4)
Version "TB.-2-TA9"
(Check valve in channel TB, TA closed)
Special versions
Version "P.-1…-068"
(Check valve in channel P, measuring port P (G1/2)
Version "TA.-2-TB9…-120"
(Check valve in channel TA, with tank bracket)
Dimensions in mm
| 1) | on request (depending on order option) |
|
|
Required surface quality of the valve contact surface |
|
① |
component side |
|
② |
plate side |
|
1 |
Name plate |
|
2 |
Identical seal rings for ports A, B, P, TA, and TB; identical seal rings for ports X and Y (plate side) |
|
3 |
Plastic socket (position and number dependent on order option) |
|
4 |
Valve mounting bores |
|
5 |
Porting pattern according to ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05 |
|
6 |
Plug screw for measuring port (position and quantity depend on order option) Connection G1/4: Tightening torque MA = 30 Nm +10 % Connection G1/2 (Version "068"): Tightening torque MA = 80 Nm +10 % |
|
7 |
Dimension of version "120" |
Valve mounting screws (separate order)
|
Size |
Quantity |
Hexagon socket head cap screws |
Material number |
|
10 |
4 |
ISO 4762 - M6 10.9 |
- |
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Check valve installation set: Disassembly and assembly
Disassembly/assembly without causing damage is achieved by using the special multi-purpose tool (1) (separate order, material no. R901182853).
Disassembly:
Push out the check valve installation set.
Assembly:
Insert the check valve installation set and push in the plastic socket (2).
With correct assembly using the special multi-purpose tool (1), the protrusion of the plastic socket (2) is approx. 0.3 mm.
Notice:
Once removed, plastic sockets may no not be used again.
