Z1S10P30-1-4X/F
Manufacturer: Bosch Rexroth
Material #: R901274737
Model : Z1S10P30-1-4X/F
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

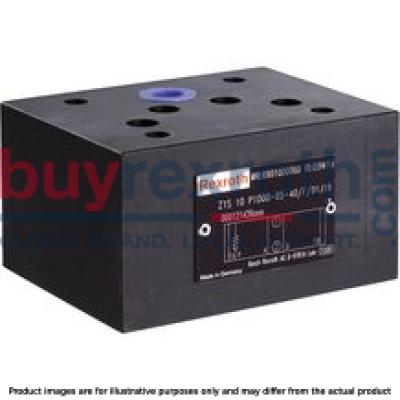

The Bosch Rexroth Z1S10P30-1-4X/F (R901274737) is a direct operated check valve designed for sandwich plate mounting, ensuring leakage-free blocking in one direction and allowing free flow in the opposite. This valve is characterized by its high-performance plastic poppet, which is limited in stroke by a plastic socket to guarantee secure closure and provide optimal leak tightness even at low pressures. A spring supports the closing movement of the poppet and ensures it remains closed when there's no fluid flow.
This model is engineered for various applications requiring precise one-way flow control. It can be used in vertical stacking assemblies and features porting patterns that comply with ISO standards. The Z1S10P30-1-4X/F offers exceptional sealing performance due to its design, which prohibits the use of an additional seal ring on the plate side while maintaining the necessary seal on the component side.
For enhanced functionality, this valve can be easily adjusted to special hydraulic fluids by simply exchanging external seal rings, and it also allows for cost-effective maintenance through individually available check valve installation sets. The design includes corrosion protection and optional features such as measuring ports and a throttle check valve. With a maximum operating pressure of up to 315 bar and a maximum flow rate specified by the manufacturer, this Bosch Rexroth check valve meets rigorous industry standards for performance and reliability.
$536.00 USD
More are expected on April 25, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 25, 2025 when ordered in
This product is eligible for factory repair.
The valve type Z1S is a direct operated check valve in sandwich plate design.
It is used for the leakage-free blocking in one direction and allows for free flow in the opposite direction.
The stroke of the plastic poppet (1) is limited by the plastic socket (2). The installed spring (3) supports the closing movement. When no fluid flows through the valve, the spring (3) keeps the plastic poppet (1) in closed position. Optimum leak-tightness is already achieved at low pressures (0.1 x pmax).
Notice:
For all installation positions in which the plastic socket (2) is mounted at the plate side ➁, no additional seal ring may be used at this position! At the component side ➀, the seal ring (as usual) seals the assembly installed downstream.
The installed plastic socket (2) has a sealing function and may not be removed or damaged. Protrusion of the plastic socket (2) is required for design reasons (preload). Dependent on the included hydraulic fluid volume and its temperature variations, static pressure changes, which are not caused by leakage at the seat face, may occur.
Type Z1S 10 P.-1.TB.-2-4X/…
|
① |
component side |
|
② |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves
|
① |
component side |
|
② |
plate side |
Version "A.-1"
(check valve in channel A)
Version "B.-2"
(Check valve in channel B)
Version "A.-2B"
(Check valve in channel A and B)
Version "TA.-2-TB9"
(Check valve in channel TA, TB closed)
Version "TA.-2D10"
(Check valve in channel A with orifice Ø1.0 mm)
Version "P.-1TA-2TB9"
(Check valve in channel TA and P, TB closed)
Version "TA.-2TB"
(Check valve in channel TA and TB)
Version "P.-1-.F/XY"
(Check valve in channel P, additionally channels X and Y)
Version "P.-1-4X/F/.MPB"
(check valve in channel P, measuring port P Out G1/4)
Version "TB.-2-TA9"
(Check valve in channel TB, TA closed)
Special versions
Version "P.-1…-068"
(Check valve in channel P, measuring port P (G1/2)
Version "TA.-2-TB9…-120"
(Check valve in channel TA, with tank bracket)
Dimensions in mm
| 1) | on request (depending on order option) |
|
|
Required surface quality of the valve contact surface |
|
① |
component side |
|
② |
plate side |
|
1 |
Name plate |
|
2 |
Identical seal rings for ports A, B, P, TA, and TB; identical seal rings for ports X and Y (plate side) |
|
3 |
Plastic socket (position and number dependent on order option) |
|
4 |
Valve mounting bores |
|
5 |
Porting pattern according to ISO 4401-05-04-0-05 and ISO 4401-05-05-0-05 |
|
6 |
Plug screw for measuring port (position and quantity depend on order option) Connection G1/4: Tightening torque MA = 30 Nm +10 % Connection G1/2 (Version "068"): Tightening torque MA = 80 Nm +10 % |
|
7 |
Dimension of version "120" |
Valve mounting screws (separate order)
|
Size |
Quantity |
Hexagon socket head cap screws |
Material number |
|
10 |
4 |
ISO 4762 - M6 10.9 |
- |
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Check valve installation set: Disassembly and assembly
Disassembly/assembly without causing damage is achieved by using the special multi-purpose tool (1) (separate order, material no. R901182853).
Disassembly:
Push out the check valve installation set.
Assembly:
Insert the check valve installation set and push in the plastic socket (2).
With correct assembly using the special multi-purpose tool (1), the protrusion of the plastic socket (2) is approx. 0.3 mm.
Notice:
Once removed, plastic sockets may no not be used again.
