PRESSURE RED.VALVE INTERMEDIATE PLATE Z3DR6VP2-1X/100MSV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

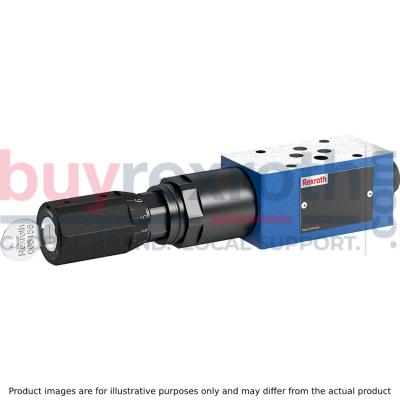

The Bosch Rexroth Z3DR6VP2-1X/100MSV (R901160162) is a high-performance industrial hydraulic valve designed for reliable pressure reduction to a preset value. This spool valve is pilot-operated and comes with a pressure adjustment range in bar, featuring a sleeve with hexagon and protective cap. It is part of component series X, displaying the spool symbol P P, and can handle a maximum pressure of 315 bar. The product group ID indicates the valve’s various specifications including its number of ports and type of actuation, which in this case is mechanical. With a size 6 designation, the Z3DR6VP2-1X/100MSV can manage a maximum flow rate and employs a sandwich plate type of connection that adheres to both NFPA T3.5.1 R2 D03 Size and CETOP RP121H standards, as well as ISO 4401 porting patterns. The valve has two switching positions and weighs approximately 4 kg with FKM seals suitable for various hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, and HFDR. This Bosch Rexroth valve stands out for its flat discharge pressure curves offering high stability with minimal hysteresis. An additional feature includes version MS which allows for the measurement and monitoring of secondary pressure via a measuring port—adding to the functionality for maintenance or system checks. The Z3DR6VP2-1X/100MSV operates by setting the secondary pressure through an adjustment type mechanism. In situations where the secondary pressure at actuator port P exceeds the set value, the valve opens a third line to tank port T to protect against excessive pressure build-up. Moreover, users have options when it comes to adjustment types; they can opt for either spindle with internal hexagon and protective cap or lockable rotary knob with scale. The design also incorporates corrosion protection measures ensuring durability in demanding environments.
