Z1S6P05-4X/VSO68
Manufacturer: Bosch Rexroth
Material #: R901086600
Model : Z1S6P05-4X/VSO68
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

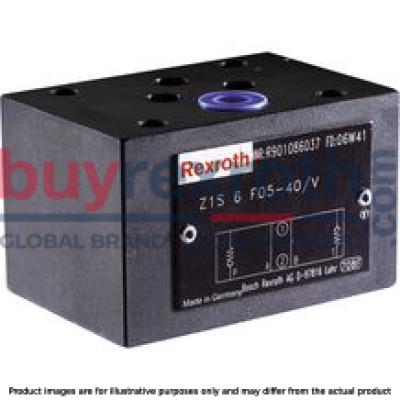

The Bosch Rexroth Z1S6P05-4X/VSO68 (R901086600) is a high-quality sandwich plate check valve designed for efficient hydraulic flow control. This direct operated check valve facilitates leakage-free blocking in one direction while permitting free flow in the opposite, making it an ideal solution for systems requiring unidirectional flow. The valve's poppet stroke is precisely limited by a durable plastic socket, which, along with an installed spring, ensures the poppet remains closed when the valve is inactive. The spring aids in the closing movement of the poppet to maintain system integrity.
This model offers versatility through its straight-through and angle valve sections. The straight-through section allows for simple linking of channels, while the angle valve section can connect or isolate up to three internal channels with ease. The plug screw plays a crucial role in stopping and sealing functions within the system.
The Z1S6P05-4X/VSO68 is designed with careful attention to installation requirements; it specifies that no additional seal ring should be used when the blue plastic socket is mounted on the plate side to prevent any compromise to its sealing function. However, on the component side, a seal ring ensures a secure seal for downstream assembly components.
This Bosch Rexroth check valve stands out with its corrosion-protected design and compatibility with various hydraulic fluids by simply exchanging external seal rings. Additional features include optional measuring ports and availability as a throttle check valve upon request. It supports maximum operating pressures up to bar and can accommodate maximum flow rates of l/min, making it suitable for diverse hydraulic applications where precise fluid control is essential.
$526.00 USD
More are expected on June 16, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as June 16, 2025 when ordered in
This product is eligible for factory repair.
The valve type Z1S is a direct operated check valve in sandwich plate design.
It is used for the leakage-free blocking in one direction and allows for free flow in the opposite direction.
The stroke of the poppet (1) is limited by the plastic socket (2). The installed spring (3) supports the closing movement. When no fluid flows through the valve, the spring (3) keeps the poppet (1) in closed position.
In contrast to the straight-through valve (section 1), the angle valve (section 2) links or closes off up to three internal channels. Stop and sealing function are taken over by the plug screw (4).
Notice:
For all installation positions in which the blue plastic socket (2) is mounted at the plate side ➁, no additional seal ring may be used at this position!
At the component side ➀, the seal ring (5) (as usual) seals the assembly installed downstream.
The installed plastic socket (2) has a sealing function and may not be removed or damaged.
Section 1: Type Z12 6 F (straight-through valve)
Section 2: Type Z1S 6 B-A (angle valve)
(measured with HLP46, ϑOil = 40 ±5 °C)
Straight-through valve
∆p-qV-characteristic curves (A2 → A1)
Angle valve
Straight-through valve (➀ = component side, ➁ = plate side)
Version "A"
Version "D"
Version "P"
Version "B"
Version "E"
Version "T"
Version "C"
Version "F"
Angle valve (➀ = component side, ➁ = plate side)
Version "AB-P"
Version "T-P"
Version "B-A"
Examples of special versions (➀ = component side, ➁ = plate side)
Version "SO68"
(check valve in channel P, measuring port P Out G1/4)
Version "SO118"
(check valve in channel P, measuring port P Out G1/4)
Version "SO90"
(check valve in channel P, measuring port A and B G1/4)
Version "SO2"
(check valve in channel P, measuring port T G1/4)
Version "SO104"
(check valve in channel P, direction of flow P1 → P2)
Straight-through valve
Dimensions in mm
|
|
Required surface quality of the valve contact surface |
|
Type |
B1 |
B2 |
H1 |
H2 |
|
mm |
mm |
mm |
mm |
|
| Z1S 6 C...SO68 | 22 | - | 13.5 | - |
| Z1S 6 P...SO68 | - | 26.5 | - | 13 |
| Z1S 6 P...SO118 | 26.5 | - | 13 | - |
| Z1S 6 P...SO90 | 22 | 22 | 20 | 20 |
| Z1S 6 P...SO2 | - | 17.5 | - | 20 |
|
① |
component side |
|
② |
plate side |
|
1 |
Name plate |
|
2 |
Identical seal rings for ports A, B, P, T (plate side) |
|
3 |
Plastic socket, blue (plate side) |
|
4 |
Valve mounting bores |
|
5 |
Porting pattern according to ISO 4401-03-02-0-05 |
|
6 |
Plug screw for measuring port, tightening torque MA = 30 Nm + 10 % |
|
7 |
Locking pin ISO 8752-3x8-St (only version "60" and "62") |
|
8 |
Bore for locking pin (only version "60" and "62") |
Valve mounting screws (separate order)
|
Size |
Quantity |
Hexagon socket head cap screws |
Material number |
|
6 |
4 |
ISO 4762 - M5 10.9 |
- |
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Angle valve
Dimensions in mm
|
|
|
Required surface quality of the valve contact surface |
|
Type |
B3 |
|
mm |
|
| Z1S 6 AB-P | 24.5 |
| Z1S 6 T-P | 24.5 |
| Z1S 6 B-A | 22 |
|
1 |
Name plate |
|
2 |
Identical seal rings for ports A, B, P, T (plate side) |
|
3 |
Plastic socket, blue (plate side) |
|
4 |
Valve mounting bores |
|
5 |
Porting pattern according to ISO 4401-03-02-0-05 |
|
7 |
Locking pin ISO 8752-3x8-St (only version "60" and "62") |
|
8 |
Bore for locking pin (only version "60" and "62") |
|
9 |
Plug screw, tightening torque MA = 55 Nm + 10 % |
|
① |
component side |
|
② |
plate side |
Valve mounting screws (separate order)
|
Size |
Quantity |
Hexagon socket head cap screws |
Material number |
|
6 |
4 |
ISO 4762 - M5 10.9 |
- |
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Check valve installation set: Disassembly and assembly
Disassembly/assembly without causing damage is achieved by using the special multi-purpose tool (1) (separate order, material no. R901182853).
Disassembly:
Push out the check valve installation set.
Assembly:
Insert the check valve installation set and push in the plastic socket (2).
With correct assembly using the special multi-purpose tool (1), the protrusion of the plastic socket (2) is approx. 0.3 mm.
Notice:
Once removed, plastic sockets may no not be used again.
