PREFILL VALVE SFE40P0-1X/M

Manufacturer: Bosch Rexroth

Material #: R901057417

Model : SFE40P0-1X/M

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth SFE40P0-1X/M (R901057417) is a high-performance industrial hydraulic valve designed for reliable blocking of oil flow at selected ports. This seat valve is pilot-operated and belongs to the component series X. It features a spool symbol A B and is capable of handling a maximum pressure, ensuring robust performance in various hydraulic applications. The SFE40P0-1X/M has a specified number of ports and utilizes hydraulic actuation for its operation. With its cartridge valve design, this model ensures easy integration into block or cylinder installations, making it versatile for diverse industrial setups. Its connection diagram adheres to ISO standards, which facilitates compatibility and standardization across systems. The valve offers multiple switching positions and comes with NBR seals which are suitable for use with a range of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. The Bosch Rexroth SFE40P0-1X/M has been engineered to deliver maximum flow rates within its size category while maintaining the maximum operating pressure in bar units. The product's weight has been optimized to contribute to its ease of installation without compromising durability or functionality. Additionally, this model can be equipped with an optional cover type LFF (Typenbsp;SEFnbsp;.nbsp;Z), enhancing its capability for specific applications that require such customization. Overall, the Bosch Rexroth SFE40P0-1X/M represents a sophisticated solution for users seeking a pilot-operated prefill valve check valve that provides precise control in hydraulic systems.

$2,042.00 USD

More are expected on October 10, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as October 10, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

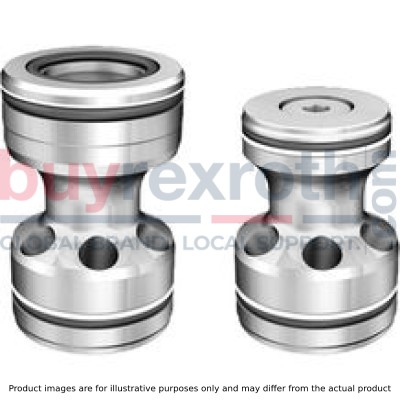

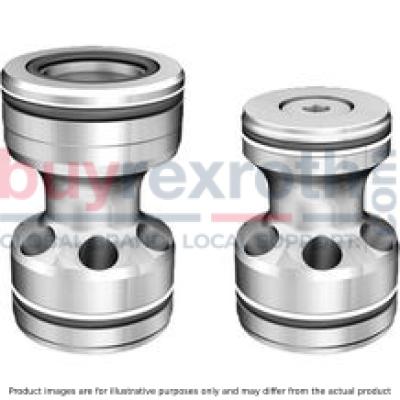

PREFILL VALVE SFE40P0-1X/M

Size 40, A → B, hydraulically actuated

Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.

Unpacked Weight: 1.260 kg

Cartridge valve Pilot operated prefill valve (check valve) Block or cylinder installation

Type "SEF . Z" (with optional cover type "LFF")

Seat valve
Pilot-operated
Component series 1X
Size 25 … 100
Maximum operating pressure 350 bar
Maximum flow 2000 l/min

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Spool symbol	A → B
Max. pressure	350
Productgroup ID	9,10,11,12,13,14
Number of ports	2
Type of actuation	with hydraulic actuation
Size	40
Max. flow	275
Type of connection	Cartridge valve
Connection diagram	ISO 7368
Number of switching positions	2
Weight	1.260
Seals	NBR
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HFC

01	02	03	04		05		06	07
SFE			0	–	1X	/	M	*

01	Prefill valves	SFE
02	Size 25	25
	Size 32	32
	Size 40	40
	Size 50	50
	Size 63	63
	Size 80	80
	Size 100	100

03	Block installation	P
	Cylinder installation 1)	Z
04	without pre-decompression	0
05	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions) - Size 10	1X
Seal material
06	NBR seals (other seals on request)	M
06	Observe compatibility of seals with hydraulic fluid used.
07	Further details in the plain text	*

1) Control cover type “LFF” incl. matching mounting kit (separate order, see page 8):

With NG25 and 32, alternative control covers type "LFA.D-7X/....F…" (see RE 21010) may be used.

general

Size		25	32	40	50	63	80	100
Weight	kg	0.53	1.05	1.94	3.2	6.48	10.3	22.15
Installation position		any
Ambient temperature range 1)	°C	-30 … +80

1)	NBR seals

hydraulic

Size			25	32	40	50	63	80	100
Maximum operating pressure	Port P	bar	350
	Anschluss A	bar	16
	Port B	bar	350
	Anschluss X	bar	150
Cracking pressure 1)		bar	≈ 0.12
Maximum flow 2)	Case of application 1	l/min	100	170	240	360	580	810	1210
	Case of application 2	l/min	90	140	200	320	510	710	1070
	Case of application 3	l/min	60	100	140	220	350	480	730
	Case of application 4	l/min	50	70	100	160	260	360	540
Druckflüssigkeit			Mineral oil (HL, HLP) to DIN 51524;fast bio-degradable hydraulic fluids according to VDMA 24568; HETG (rape seed oil); other hydraulic fluids on enquiry
Hydraulic fluid temperature range		°C	-30 … +80
Viscosity range		mm²/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid 3)			Class 20/18/15 according to ISO 4406 (c)

1)	Pressure differential at the main poppet for overcoming the spring force
2)	Pulling function (A to B)
3)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Flow ‒ case of application 1 (A to B)

Flow ‒ case of application 2 (A to B)

Size of the filling tank at least 1.5 x cylinder content

Flow ‒ case of application 3 (A to B)

Flow ‒ case of application 4 (A to B)

Attention!

Faulty dimensioning of prefill valves and connection lines may lead to cavitation effects. The consequences affect the reliability and durability of products!

Attention!

An underdimensioned prefill valve and/or an underdimensioned line leads to gas leaks from the hydraulic fluid with corresponding consequences and often to long-term damage at the cylinder seals.

Notice!

For limit areas, please contact us. It is often sufficient, to select a pipeline which is one size larger.

1	Cylinders
2	Prefill valve
a	at least 300 mm with extended cylinder
b	up to 1000 mm with the specified maximum flows
c	≤ 500 mm
h	300 mm ≤ h ≤ 500 mm

For applications outside these parameters, please consult us!
