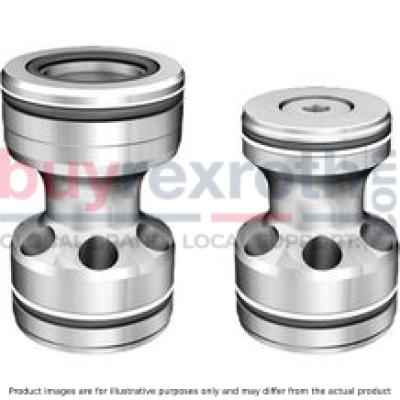

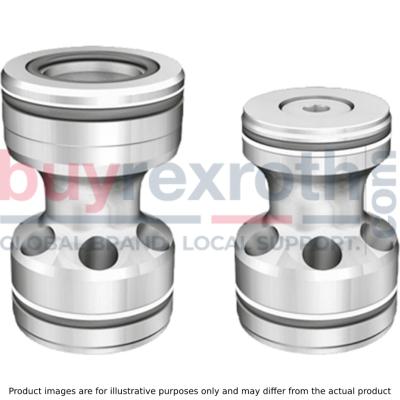

PREFILL VALVE SFE63Z0-1X/M
Manufacturer: Bosch Rexroth
Material #: R901066620
Model : SFE63Z0-1X/M
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth SFE63Z0-1X/M (R901066620) is a high-performance, hydraulically actuated industrial hydraulic seat valve designed for reliable blocking of oil flow at selected ports. This pilot-operated component from series X features the spool symbol A B and is capable of handling a maximum pressure as specified by the manufacturer's standards. It belongs to Productgroup ID and is equipped with a number of ports suitable for various hydraulic applications.
The SFE63Z0-1X/M valve offers hydraulic actuation, ensuring precise control and operation in demanding environments. The max flow rate and the maximum operating pressure in bars are determined by its size, making it versatile for different system requirements. This valve is a cartridge type with an ISO connection diagram, facilitating easy integration into existing systems.
Designed for block or cylinder installation, this model comes with NBR seals that are compatible with a range of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC types. The SEF Z type valve can be optionally covered with type LFF for additional protective measures if required.
This pilot-operated prefill valve also functions as a check valve and has been constructed to ensure durability and reliability in industrial settings. With its specific number of switching positions and weight details provided by Bosch Rexroth, customers can expect an efficient performance tailored to their system's needs.
Overall, the Bosch Rexroth SFE63Z0-1X/M valve is engineered to meet rigorous industrial standards, offering robustness and precision for various hydraulic applications without compromising on quality or performance.
$2,218.00 USD
More are expected on February 21, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as February 21, 2025 when ordered in
This product is eligible for factory repair.
Size 63, A → B, hydraulically actuated
Industrial hydraulic valve in a high performance range. Reliable blocking of the oil flow at selected ports.
Unpacked Weight: 6.520 kg
Cartridge valve Pilot operated prefill valve (check valve) Block or cylinder installation
Type "SEF . Z" (with optional cover type "LFF")
general
|
Size |
25 | 32 | 40 | 50 | 63 | 80 | 100 | |
|
Weight |
kg |
0.53 | 1.05 | 1.94 | 3.2 | 6.48 | 10.3 | 22.15 |
|
Installation position |
any | |||||||
|
Ambient temperature range 1) |
°C |
-30 … +80 | ||||||
| 1) | NBR seals |
hydraulic
|
Size |
25 | 32 | 40 | 50 | 63 | 80 | 100 | ||
|
Maximum operating pressure |
Port P |
bar |
350 | ||||||
|
Anschluss A |
bar |
16 | |||||||
|
Port B |
bar |
350 | |||||||
|
Anschluss X |
bar |
150 | |||||||
|
Cracking pressure 1) |
bar |
≈ 0.12 | |||||||
|
Maximum flow 2) |
Case of application 1 |
l/min |
100 | 170 | 240 | 360 | 580 | 810 | 1210 |
|
Case of application 2 |
l/min |
90 | 140 | 200 | 320 | 510 | 710 | 1070 | |
|
Case of application 3 |
l/min |
60 | 100 | 140 | 220 | 350 | 480 | 730 | |
|
Case of application 4 |
l/min |
50 | 70 | 100 | 160 | 260 | 360 | 540 | |
|
Druckflüssigkeit |
Mineral oil (HL, HLP) to DIN 51524;fast bio-degradable hydraulic fluids according to VDMA 24568; HETG (rape seed oil); other hydraulic fluids on enquiry | ||||||||
|
Hydraulic fluid temperature range |
°C |
-30 … +80 | |||||||
|
Viscosity range |
mm²/s |
10 … 800 | |||||||
|
Maximum admissible degree of contamination of the hydraulic fluid 3) |
Class 20/18/15 according to ISO 4406 (c) | ||||||||
| 1) | Pressure differential at the main poppet for overcoming the spring force |
| 2) | Pulling function (A to B) |
| 3) | The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter. |
Flow ‒ case of application 1 (A to B)
Flow ‒ case of application 2 (A to B)
Size of the filling tank at least 1.5 x cylinder content
Flow ‒ case of application 3 (A to B)
Flow ‒ case of application 4 (A to B)
Attention!
Faulty dimensioning of prefill valves and connection lines may lead to cavitation effects. The consequences affect the reliability and durability of products!
Attention!
An underdimensioned prefill valve and/or an underdimensioned line leads to gas leaks from the hydraulic fluid with corresponding consequences and often to long-term damage at the cylinder seals.
Notice!
For limit areas, please contact us. It is often sufficient, to select a pipeline which is one size larger.
|
1 |
Cylinders |
|
2 |
Prefill valve |
|
a |
at least 300 mm with extended cylinder |
|
b |
up to 1000 mm with the specified maximum flows |
|
c |
≤ 500 mm |
|
h |
300 mm ≤ h ≤ 500 mm |
For applications outside these parameters, please consult us!
(measured with HLP46, ϑOil {ν = [si]40 mm2/s[/si][imp]40 cSt[/imp]) = [si]40 ±5 °C[/si][imp]104 ±41 °F[/imp])
NG25
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG25
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
Size 32
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
Size 32
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG40
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG40
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG50
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG50
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG63
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG63
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG80
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
NG80
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
Size 100
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
Size 100
Pressure differential Δp between ports A and B dependent on the flow qV in suction direction.
Prefill valve type SFE
Prefill valve type SFE with control cover type LFF
Installation bore for block installation type SFE . P
Dimensions in mm
| 1) | Fit |
Installation bore for block installation type SFE . P
Dimensions in mm
| 1) | Fit |
|
1 |
Port A can be positioned anywhere around the central axis. However, it must be observed that the control bores and the mounting bores are not damaged! |
|
2 |
Block |
|
3 |
Cylinders |
|
NG |
ØD1H7 / ØD8 |
ØD2H7 / ØD7 |
ØD3 |
ØD4 |
ØD5 |
ØD6 |
H1 |
P1 1) |
P2 1) |
T1 |
T2 |
T3 |
T4 |
T5 |
||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 25 | 43 | 37 | 25 | - 5 | 36 | 25 | 7 | 7 | 30 | 13 | 70 | + 0.1 | 56 | 43.5 | 2.5 | 2.5 |
| 32 | 58 | 50 | 31 | - 5 | 46 | 32 | 7 | 9 | 30 | 13 | 78 | + 0.1 | 63 | 47 | 2.5 | 2.5 |
| 40 | 75 | 55 | 40 | - 5 | 58 | 40 | 7 | 11 | 26 | 16 | 81 | + 0.1 | 63 | 43 | 3 | 3 |
| 50 | 90 | 68 | 50 | - 5 | 71 | 50 | 7 | 14 | 31 | 20 | 100 | + 0.1 | 78 | 53 | 4 | 3 |
| 63 | 120 | 90 | 63 | - 5 | 90 | 60 | 7 | 16 | 32 | 23 | 114 | + 0.1 | 89 | 59 | 4 | 4 |
| 80 | 145 | 110 | 78.5 | - 5 | 107 | 76 | 7 | 18 | 36 | 23 | 134 | + 0.1 | 109 | 71 | 5 | 5 |
| 100 | 180 | 135 | 95 | - 5 | 132 | 93 | 7 | 30 | 60 | 30 | 180 | + 0.1 | 148 | 101 | 8 | 8 |
| 1) | Fit |
Installation bore for cylinder installation type SFE . Z
Dimensions in mm
| 1) | Fit |
Installation bore for cylinder installation type SFE . Z
Dimensions in mm
| 1) | Fit |
|
1 |
Port A can be positioned anywhere around the central axis. However, it must be observed that the control bores and the mounting bores are not damaged! |
|
2 |
Cover |
|
3 |
Cylinders |
|
NG |
ØD1H7 / ØD8 |
ØD2H7 / ØD7 |
ØD3 |
ØD4 |
ØD5 |
ØD6 |
H1 |
P1 1) |
P2 1) |
T1 |
T2 |
T3 |
T4 |
||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 25 | 43 | 45 | 25 | - 5 | 36 | 25 | 7 | 7 | 27 | 83 | 85 | + 0.1 | 60 | 41 | 2.5 |
| 32 | 58 | 60 | 31 | - 5 | 46 | 32 | 7 | 9 | 28 | 89.5 | 91.5 | + 0.1 | 66 | 44 | 2.5 |
| 40 | 75 | 78 | 40 | - 5 | 58 | 40 | 7 | 11 | 30 | 91 | 93 | + 0.1 | 71 | 50 | 3 |
| 50 | 90 | 90 | 50 | - 5 | 71 | 50 | 7 | 14 | 34 | 110 | 112 | + 0.1 | 85 | 59 | 4 |
| 63 | 120 | 123 | 63 | - 5 | 90 | 60 | 7 | 16 | 40 | 128 | 130 | + 0.1 | 101 | 71 | 4 |
| 80 | 145 | 150 | 78.5 | - 5 | 107 | 76 | 7 | 18 | 40 | 148 | 150 | + 0.1 | 117 | 79 | 5 |
| 100 | 180 | 185 | 95 | - 5 | 132 | 100 | 7 | 30 | 50 | 188 | 200 | + 0.1 | 152 | 101 | 8 |
| 1) | Fit |
Installation bore and connection dimensions according to ISO 7368
Dimensions in mm
Installation bore and connection dimensions according to ISO 7368
Dimensions in mm
Tolerances:
General tolerances ISO 2768-mK Tolerancing principle ISO 8015Dimensions
|
NG |
ØD2 |
ØD3H13 |
L1 |
L2 |
L3 |
L4 |
L5 |
H1 |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 25 | 6 | - 0.5 | 5 | 85 | 58 | 29 | 33 | 16 | 25 |
| 32 | 8 | - 0.5 | 5 | 102 | 70 | 35 | 41 | 17 | 35 |
| 40 | 10 | - 0.5 | 5 | 125 | 85 | 42.5 | 50 | 23 | 45 |
| 50 | 10 | - 0.5 | 8 | 140 | 100 | 50 | 58 | 30 | 45 |
| 63 | 12 | - 0.5 | 8 | 180 | 125 | 62.5 | 75 | 38 | 65 |
| 80 | 16 | - 0.5 | 10 | 250 | 200 | - | - | - | 50 |
| 100 | 20 | - 0.5 | 10 | 300 | 245 | - | - | - | 63 |
Poppet geometry and determination of the minimum pilot pressure
Dimensions in mm
Poppet geometry and determination of the minimum pilot pressure
Dimensions in mm
|
A1 |
Effective area of the main poppet |
|
A2 |
Effective area of the control spool |
|
s1 |
Stroke of the main poppet |
|
s2 |
Stroke of the control spool |
|
F1 |
Spring force of the valve spring |
|
F2 |
Spring force of the compression spring of the control spool |
|
Vst X |
Pilot volume for opening the valve |
|
pÖ |
Cracking pressure (pressure differential at the main poppet for overcoming the spring force F1) |
|
pSt |
Pilot pressure at port X |
|
pB |
System pressure at port B |
|
|
NG |
A1 |
A2 |
s1 |
s2 |
F1 |
F2 |
VstX |
Unchecking ratio |
|
cm² |
cm² |
mm |
mm |
N |
N |
cm³ |
||
| 25 | 5.31 | 1.33 | 6.2 | 5 | 6 … 14 | 38 … 70 | 0.66 | 4 |
| 32 | 8.04 | 2.01 | 8.5 | 6.5 | 9 … 22 | 58 … 109 | 1.3 | 4 |
| 40 | 13.52 | 3.14 | 10 | 7 | 14 … 29 | 93 … 162 | 2.2 | 4.3 |
| 50 | 21.24 | 4.71 | 12.5 | 9 | 23 … 49 | 149 … 261 | 4.2 | 4.5 |
| 63 | 32.67 | 7.07 | 14.5 | 11 | 35 … 63 | 206 … 348 | 7.8 | 4.6 |
| 80 | 49.02 | 10.18 | 17 | 13 | 57 … 127 | 310 … 579 | 13.2 | 4.8 |
| 100 | 73.13 | 15.9 | 22 | 16 | 81 … 193 | 476 … 952 | 25.5 | 4.6 |
Example: Type SFE32...
pB = 30 bar [435 psi];
pSt = 4.0 x 30 bar [435 psi] = 129 bar [1740 psi]
