DIRECTIONAL SPOOL VALVE Z4WEH10E63-4X/6EW110NETK4/B10

Manufacturer: Bosch Rexroth

Material #: R901055318

Model : Z4WEH10E63-4X/6EW110NETK4/B10

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth Z4WEH10E63-4X/6EW110NETK4/B10 (R901055318) is a high-performance directional spool valve with electrohydraulic actuation, designed to function as either a shutoff through valve or shutoff short-circuit through valve. This advanced component offers versatility in hydraulic flow control, allowing P and T free flow in every spool position. The porting pattern is compliant with ISO standards, ensuring compatibility with a wide range of hydraulic systems. This model features wet-pin DC or AC solenoids which can be selected based on the application requirements. Additionally, it comes with the option for an auxiliary operating device that enhances its functionality. The electrical connection is designed to accommodate both individual and central connections as detailed in the RE documentation provided by Bosch Rexroth. For optimized performance, the Z4WEH10E63-4X/6EW110NETK4/B10 offers optional features such as switching time adjustment and stroke setting at the main spool. These options provide users with greater control over the valve's response times and spool movement, respectively. Moreover, for precise monitoring of valve position, this model can be equipped with inductive position switches and proximity sensors that operate without contact. The directional spool valve boasts a size component series X which corresponds to its physical dimensions and mounting specifications. It is capable of handling maximum operating pressures up to bar units and facilitating a maximum flow rate measured in liters per minute (l/min), ensuring reliable performance even in demanding hydraulic applications. Whether implemented in complex industrial systems or more straightforward hydraulic setups, this Bosch Rexroth directional spool valve stands out for its adaptability and precision control capabilities.

$2,360.00 USD

More are expected on October 7, 2024

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as October 7, 2024 when ordered in

This product is eligible for factory repair.

Start Repair

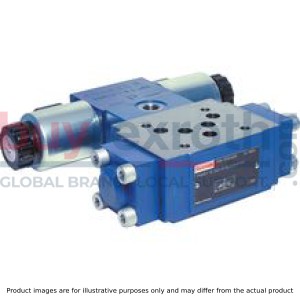

DIRECTIONAL SPOOL VALVE Z4WEH10E63-4X/6EW110NETK4/B10

Size 10, symbol E63, with solenoid actuation, 110 VAC 50/60Hz

Industrial hydraulic valve in the medium performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Unpacked Weight: 4.32 kg

Directional spool valve, pilot-operated Type of actuation: electro-hydraulic Functioning as shut-off through valve or shut-off short-circuit through valve P and T free flow in every spool position Porting pattern according to ISO 4401-05-04-0-05 Wet-pin DC or AC solenoids, optional Optional auxiliary operating device Electrical connection as individual or central connection, see RE 23178 Switching time adjustment, optional Stroke setting at main spool, optional Inductive position switch and proximity sensors (contactless)

➀	component side
➁	plate side

Spool valve
Pilot-operated
Internal pilot oil supply, internal pilot oil return
with manual override
Component series 4X
Maximum flow 160 l/min
Size 10
Maximum operating pressure 315 bar

Data Sheet	Download Data Sheet
Manual	Download Manual

Spool symbol	Symbol E63
Max. pressure	315
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
Productgroup ID	9,10,11,12,13,14
Number of ports	4
Type of actuation	with solenoid actuation
Conformity description	CE – Low-Voltage Directive 2014/35/EU
Size	10
Electrical connector	Connector 3-pole (2 + PE)
Max. flow	160
Type of connection	Sandwich plate
Connection diagram NFPA	NFPA T3.5.1 R2-2002 D05
Size_CETOP	D05
Connection diagram	ISO 4401-05-04-0-05
Supply voltage	110 VAC 50/60Hz
Number of switching positions	2
Weight	4.32
Seals	NBR
Hydraulic fluid	HL,HLP,HETG
Conformity	CE

01	02	03	04		05		06	07	08	09	10	11	12	13	14	15	16	17	18
Z4	WEH	10		–	4X	/						K4							*

01		Z4
Type of actuation
02	electro-hydraulic	WEH
03	Size 10	10
Symbols
04	see symbols
05	Component series 40 to 49 (40 to 49: unchanged installation and connection dimensions)	4X
Pilot control valve
06	High-power valve (RE 23178)	6E 1)
07	Direct voltage 24 V	G24 1)
	Alternating voltage 230 V, 50/60 Hz	W230 1)
	DC voltage 205 V 50/60 Hz	G205 1;2)
	For other voltages, frequencies and electric data, see data sheet RE 23178
08	Without manual override	no code
	With manual override	N1)
	With concealed manual override (standard)	N9 1)
09	External pilot oil supply, external pilot oil return	no code
	Internal pilot oil supply, internal pilot oil return (standard)	ET
	External pilot oil supply, internal pilot oil return	T
	(for type Z4WH... only "no code" available!)
10	without switching time adjustment	no code
	Switching time adjustment as supply control	S
	Switching time adjustment as discharge control	S2
Electrical connection 1)
11	Without mating connector, individual connection with connector according to DIN EN 175301-803	K43)
11	For further electrical connections, see RE 23178
Spool position monitoring
12	Without position switch	no code
	Monitored spool position "a"	QMAG24
	Monitored spool position "b"	QMBG24
	Monitored spool position "a" and "b"	QMABG24
13	No additional details	Without slash
13	Additional details	/
Stroke setting
14	Without stroke setting	no code
	Stroke setting on side A and B	10
	Stroke setting on side A	11
	Stroke setting on side B	12
	For more information, see stroke setting, mounting options
Throttle insert 1)
15	Without throttle insert	no code
	Throttle Ø 0.8 mm [0.0315 inch]	B08
	Throttle Ø 1.0 mm [0.0394 inch]	B10
16	Without pressure reducing valve	no code
16	With pressure reducing valve (use for pilot pressure >250 bar)	D3 1;4)
Seal material
17	NBR seals	no code
	FKM seals	V
	Other seals on request
	Observe compatibility of seals with hydraulic fluid used.
18	Further details in the plain text	*

1)	For connection to the AC voltage mains, a DC solenoid must be used, which is controlled via a rectifier (see table).
	For individual connection, a mating connector with integrated rectifier can be used (separate order).
2)	Mating connectors (separate order).
3)	Version "D3" requires installation of a throttle insert "B08" in port P of the pilot control valve!

AC voltage mains (admissible voltage tolerance ± 10%)	Nominal voltage of the DC solenoid in case of operation with alternating voltage	Ordering code
110 V - 50/60 Hz 120 V - 60 Hz	96 V	G96
230 V - 50/60 Hz	205 V	G205

Preferred types and standard units are contained in the EPS (standard price list).

general

Size			10
Weight	Valve with one solenoid	kg	4.2
	Valve with two solenoids	kg	4.6
	Switching time adjustment	kg	0.8
	3-way pressure reducing valve	kg	0.4
	Plate for version "T"	kg	0.5
Installation position			any
Ambient temperature ranges (NBR seals)		°C	-30 … +50
Ambient temperature ranges (FKM seals)		°C	-20 … +50

hydraulic

Size				10
Maximum operating pressure	Port P	External pilot oil supply	bar	315
		Internal pilot oil supply (without pressure reducing valve)	bar	250
		Internal pilot oil supply (with pressure reducing valve)	bar	315
	Anschluss A		bar	315
	Port B		bar	315
	Port T	with DC solenoid	bar	210
	Port T	with AC solenoid	bar	160
Maximum flow			l/min	160
Minimum pilot pressure			bar	12
Pilot volume for switching process			cm³	1.3
Hydraulic fluid 1)				see table
Hydraulic fluid temperature range (NBR seals)			°C	-30 … +80
Hydraulic fluid temperature range (FKM seals)			°C	-20 … +80
Viscosity range			mm²/s	2.8 … 500
Maximum admissible degree of contamination of the hydraulic fluid 2)				Class 20/18/15 according to ISO 4406 (c)

1)	The ignition temperature of the process and operating medium used must be over the maximum solenoid surface temperature.
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oil		HL, HLP	NBR, FKM	DIN 51524
Fast bio-degradable hydraulic fluids				VDMA 24568
Environmentally compatible	Insoluble in water	HETG	NBR, FKM
Environmentally compatible	Insoluble in water	HEES	FKM
	Soluble in water	HEPG	NBR, FKM
Other hydraulic fluids on request

electrical

Switching time according to ISO 6403	At pilot pressure	bar	70		140		210
	Voltage type		Direct voltage	AC voltage	Direct voltage	AC voltage	Direct voltage	AC voltage
	On	ms	65	-	60	-	55	-
	On	ms	-	30	-	25	-	20
	Off	ms	-	30	-	30	-	30
	Off	ms	30	-	30	-	30	-

Notices!

Actuation of the manual override is only possible up to a tank pressure of approx. 50 bar. Avoid damage to the bore of the manual override! (Special tool for the operation, separate order, material no. R900024943). When the manual override is blocked, the actuation of the solenoid must be prevented! The simultaneous actuation of the solenoids must be prevented!

Inductive position switch type QM: electrical connection

electrical

Connection voltage (DC voltage)			V	24
Voltage tolerance (connection voltage)				+30 %/-15 %
Admissible residual ripple			%	≤ 10
Max. load capacity			mA	400
Switching outputs				PNP transistor outputs, load between switching outputs and GND
Pinout	1		V	24
	2, 4	Switching output	mA	400
	3	Earthing (GND)	V	0

The electric connection is realized via a 4-pole mating connector (separate order) with connection thread M12 x 1.

For applications outside these parameters, please consult us!

(measured with HLP46, ϑOil = 40 ±5 °C)

Δp-qV characteristic curves

E62

Version "ET"

E62

Version "T"

E63

Version "ET"

E63

Version "T"

E68

Version "ET"

E68

Version "T"

E501)

Version "ET"

1)	Opening cross-section in spool position "a" (A2 → B2) = 50 mm2

E50

Version "T"

1)	Opening cross-section in spool position "a" (A2 → B2) = 50 mm2

E51

Version "ET"

E51

Version "T"

E521)

Version "ET"

1)	Opening cross-section in spool position "b" (A2 → B2) = 35 mm2

E52

Version "T"

1)	Opening cross-section in spool position "b" (A2 → B2) = 35 mm2

➀	component side
➁	plate side

Inductive position switch type QM Switching logics

Version QMA

(Position switch on side B, monitored spool position of the main stage "a")

Version QMA

(Position switch on side B, monitored spool position of the main stage "a")

Version QMB

(Position switch on side A, monitored spool position of the main stage "b")

Version QMB

(Position switch on side A, monitored spool position of the main stage "b")

version QMAB

(Position switch on side A and B, monitored spool position "a" and "b")

Version QM0

(Position switch on side A and B, monitored spool position "0")

	1) No signal change at the position switch on side B with spool position "a"
	2) No signal change at the position switch on side A with spool position "b"

Version QM0

(Position switch on side B, monitored spool position of the main stage "0")

Version QM0

(Position switch on side A, monitored spool position of the main stage "0")

Dimensions in mm

1	Name plate complete valve
2	Name plate pilot control valve
3	Main valve
4	Sandwich plate for external pilot control (use for operating pressure > 210 bar)
5	Pressure reducing valve "D3" (to be used for pilot pressures above 250 bar)Material no.:NBR seals: R900323180FKM seals: R900323664
6	Space required to remove the mating connector
7	Switching time adjustment (throttle check valve); dependent on supply or discharge control installation position (representation: supply control)
8	R-ring plate
9	Pilot control valve- Type 4WE 6 J.. at symbol E62- Type 4WE 6 Y.. at symbol E50, E51, E52, E63, E68Dimensions () for valve with AC solenoid
10	Dimension for valve without manual override
11	Dimension for valve with manual override "N";Dimensions () for valve with AC solenoid
12	Dimension for valve with concealed manual override "N9"; dimensions () for valve with AC solenoid without manual override
13	Solenoid "a" and "b" (rotatable by 90°)
14	Identical seal rings for ports A, B, P, TA and TB
15	Identical seal rings for ports A, B, P and T
17	Valve mounting bores Valve mounting screws (separate order) 4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
18	Valve mounting screws (separate order)4 hexagon socket head cap screws ISO 4762 - M5 - 10.9

Notice!

Length and tightening torque of the valve mounting screws must be calculated according to the components mounted.

Mounting options	L1	L2
Mounting options	mm	mm
Stroke setting on side A and B	95	149
Stroke setting on side A	95	-
Stroke setting on side B	-	149

Stroke setting, mounting options

The stroke of the main spool is limited by the stroke setting.

The piston stroke is shortened by untightening the lock nut (17) and clockwise rotation of the adjustment spindle (18). For this, the control chamber has to be depressurized.

Stroke 6 mm (1 rotation = 1 mm stroke)

17	Lock nut SW27
18	Adjustment spindle, internal hexagon SW5

Spool position monitoring

Notice:

The dimensions are nominal dimensions which are subject to tolerances.

Dimensions in mm

Inductive position switch type QM

Type Z4WEH 10
Dimensions in mm

Mounting options:
Monitored spool position	Ordering code	Position switch on side
Monitored spool position	Ordering code	„a“	„b“	"a" and "b"
„a“	QMAG24		X
„b“	QMBG24	X
"a" and "b"	QMABG24			X

Stroke setting, mounting options

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

Mating connectors for valves with connector “K4”, without circuitry, standard

3P Z4

For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)

Data sheet

Spare parts & repair

Mating connectors for valves with connector “K4”, with indicator light

3P Z5L

Mating connectors for valves with connector “K4”, with indicator light

3P Z5L

For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)

Data sheet

Spare parts & repair

DIRECTIONAL SPOOL VALVE Z4WEH10E63-4X/6EW110NETK4/B10

Manufacturer: Bosch Rexroth

Material #: R901055318

Model : Z4WEH10E63-4X/6EW110NETK4/B10

More are expected on October 7, 2024

This product is eligible for factory repair.

general

hydraulic

Notices!

Inductive position switch type QM: electrical connection

electrical

(measured with HLP46, ϑOil = 40 ±5 °C)

Δp-qV characteristic curves

E62

E62

E63

E63

E68

E68

E501)

E50

E51

E51

E521)

E52

Inductive position switch type QM Switching logics

Version QMA

Version QMA

Version QMB

Version QMB

version QMAB

Version QM0

Version QM0

Version QM0

Notice!

Stroke setting, mounting options

Spool position monitoring

Notice:

Inductive position switch type QM

Stroke setting, mounting options

Related Products

Information

Account
