DZ6DP2-5X/150XY/12

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

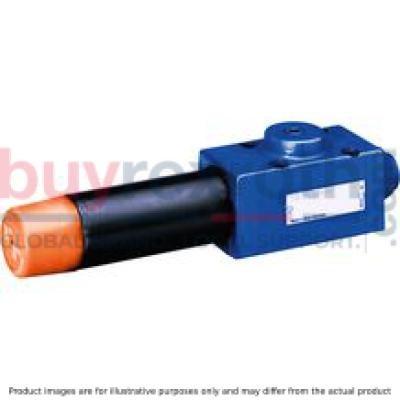

The Bosch Rexroth DZ6DP2-5X/150XY/12 (R900565822) is a highly functional direct operated pressure sequence valve designed for effectively managing the pressure-dependent connection of secondary systems. This robust valve operates by utilizing a compression spring to maintain the control spool in its initial position, ensuring the valve remains blocked until the pressure in channel P attains a preset value. Once this pressure value is reached, the control spool shifts, creating an open connection from P to A, allowing for seamless system engagement without pressure loss. The DZ6DP2-5X/150XY/12 valve boasts an internal or external control signal reception through its control line from channel P or via port B X, respectively. This versatility is complemented by options for leakage oil discharge which can be executed externally through port T Y or internally via A, depending on the specific application requirements. It's important to note that with internal leakage oil discharge, there's an increase in set cracking pressure influenced by the pressure present in channel A. In addition to these features, this model allows for the optional installation of a check valve to enable free hydraulic fluid return from channel A back to P, enhancing its functionality. Monitoring and controlling sequencing pressure is made easy with a dedicated pressure gauge connection. The DZ6DP2-5X/150XY/12 comes with various options for subplate mounting and porting patterns that comply with DIN form A standards without locating holes and ISO standards with locating holes. Subplates are available as separate orders. Users can also select from different adjustment types according to their needs—options include a rotary knob, threaded pin with hexagon and protective cap, lockable rotary knob with scale, or rotary knob with scale. This versatile valve supports maximum operating pressures up to bar levels and accommodates maximum flow rates measured in liters per minute (l/min), making it suitable for a wide range of hydraulic applications where precise sequence control is necessary.
