F10P3-3X/16Q
Manufacturer: Bosch Rexroth
Material #: R900459500
Model : F10P3-3X/16Q
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

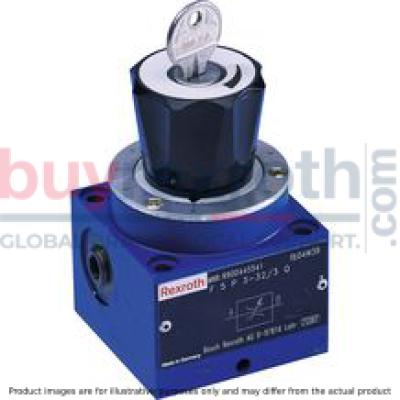

The Bosch Rexroth F10P3-3X/16Q (R900459500) is a state-of-the-art flow control valve designed for precise throttling of fluid flow with minimal temperature dependency. This fine throttle valve features a robust housing, an adjustable element, and an orifice that together ensure reliable performance in regulating flow rates. The component is engineered for versatility with options for subplate mounting, threaded connections, or block installation, catering to a wide range of system configurations.
With its lockable rotary knob, the F10P3-3X/16Q allows for secure settings to maintain consistent flow rates even in demanding applications. The valve's design incorporates an orifice window where the flow from port A to B is meticulously throttled by rotating the curved bolt, allowing for fine-tuned control over the hydraulic system's performance. The precision of this mechanism ensures that adjustments can be made smoothly and with high accuracy.
This model belongs to component series X and can withstand a maximum operating pressure of up to 315 bar while handling maximum flow rates as specified by the manufacturer. The F10P3-3X/16Q's durable construction and reliable operation make it an essential component for systems requiring precise fluid control with stable characteristics across varying temperatures. It is particularly suitable for applications where exact flow regulation is critical to the system’s operation and efficiency.
$3,977.00 USD
More are expected on April 15, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 15, 2025 when ordered in
The flow control valve type F is a fine throttle valve with an orifice-type throttling point. It basically consists of housing (1), adjustment element (2) and orifice (3) and is used for throttling of a flow with low temperature dependency.
The flow from A to B is throttled at the orifice window (4). The throttle cross-section is set by rotation of the curved bolt (5). Low temperature dependency is achieved thanks to the orifice design of the throttling point.
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – progressive
Δp-qV characteristic curves: NG10 – progressive
Δp-qV characteristic curves: NG10 – progressive
Δp-qV characteristic curves: NG10 – progressive
Threaded port and subplate mounting
Dimensions in mm
|
NG |
H1 |
H2 |
H3 |
H4 |
H5 |
H6 |
H7 |
H8 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 5 | 56 | 42 | 95 | 122 | 26 | 30 | 12 | 10 |
| 10 | 58 | 42 | 97 | 124 | 22 | 27 | 14 | 10 |
Pipe thread "G" according to ISO 228/1
|
1 |
Rotary knob security lock (all positions can be locked), rotation range 300° corresponds to 10 scale sections |
|
2 |
Scaling |
|
3 |
Name plate |
|
4 |
Seal ring |
|
5 |
Blind plate (with threaded port only) |
|
6 |
Connection bores closed at version "P". |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 7 Nm ± 10 %,
Material no. R913000064
|
NG |
H1 |
H2 |
H3 |
H4 |
|
mm |
mm |
mm |
mm |
|
| 5 | 16 | 93 | 120 | 10.3 |
| 10 | 18 | 95 | 122 | 12.4 |
for block installation
Dimensions in mm
|
1 |
Rotary knob security lock (all positions can be locked), rotation range 300° corresponds to 10 scale sections |
|
2 |
Scaling |
|
3 |
Name plate |
|
4 |
Depth of fit |
|
5 |
Attention! Install port A and B outside the range of the mounting bores M5 – Risk of breaking! |
|
6 |
NG5: 4 hexagon socket head cap screws ISO 4762 - M5 x 16 - 10.9-flZn-240h-L (Friction coefficient μtotal = 0.09 to 0.14); Tightening torque MA = 7 Nm ± 10 % Material no. R913000468 |
|
NG10: 4 hexagon socket head cap screws ISO 4762 - M5 x 20 - 10.9-flZn-240h-L (Friction coefficient μtotal = 0.09 to 0.14); Tightening torque MA = 7 Nm ± 10 % Material no. R913000488 |
Dimensions in mm
