F10P3-3X/10LV
Manufacturer: Bosch Rexroth
Material #: R900402099
Model : F10P3-3X/10LV
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

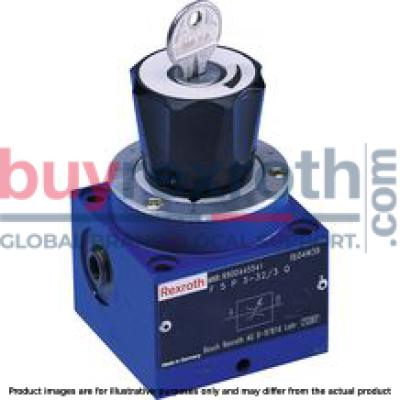

The Bosch Rexroth F10P3-3X/10LV (R900402099) is a precision-engineered flow control valve designed for regulating fluid flow with minimal temperature dependency. This fine throttle valve features a robust housing, an adjustable element, and an orifice that collectively ensure precise throttling of fluid flow. The mechanism operates by adjusting the throttle cross-section through the rotation of a curved bolt located at the orifice window, allowing for fine-tuned control from port A to B.
The F10P3-3X/10LV valve is versatile in its installation options, supporting subplate mounting, threaded connections, and block installation. It comes with a lockable rotary knob that secures settings against unintended adjustments. The size and component series X designation indicate its compatibility with specific hydraulic system requirements. With its capability to withstand a maximum operating pressure and manage a substantial maximum flow rate per minute, this valve is well-suited for applications requiring precise flow regulation under varying temperature conditions.
Constructed to meet high standards of performance and reliability, the Bosch Rexroth F10P3-3X/10LV valve represents an essential component for hydraulic systems where controlled fluid management is critical. Its design reflects Bosch Rexroth's commitment to quality and efficiency in hydraulic system components.
$4,884.00 USD
More are expected on June 27, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as June 27, 2025 when ordered in
The flow control valve type F is a fine throttle valve with an orifice-type throttling point. It basically consists of housing (1), adjustment element (2) and orifice (3) and is used for throttling of a flow with low temperature dependency.
The flow from A to B is throttled at the orifice window (4). The throttle cross-section is set by rotation of the curved bolt (5). Low temperature dependency is achieved thanks to the orifice design of the throttling point.
(measured with HLP46, ϑOil = 40 ±5 °C)
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG5
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – linear
Δp-qV characteristic curves: NG10 – progressive
Δp-qV characteristic curves: NG10 – progressive
Δp-qV characteristic curves: NG10 – progressive
Δp-qV characteristic curves: NG10 – progressive
Threaded port and subplate mounting
Dimensions in mm
|
NG |
H1 |
H2 |
H3 |
H4 |
H5 |
H6 |
H7 |
H8 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 5 | 56 | 42 | 95 | 122 | 26 | 30 | 12 | 10 |
| 10 | 58 | 42 | 97 | 124 | 22 | 27 | 14 | 10 |
Pipe thread "G" according to ISO 228/1
|
1 |
Rotary knob security lock (all positions can be locked), rotation range 300° corresponds to 10 scale sections |
|
2 |
Scaling |
|
3 |
Name plate |
|
4 |
Seal ring |
|
5 |
Blind plate (with threaded port only) |
|
6 |
Connection bores closed at version "P". |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M5 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 7 Nm ± 10 %,
Material no. R913000064
|
NG |
H1 |
H2 |
H3 |
H4 |
|
mm |
mm |
mm |
mm |
|
| 5 | 16 | 93 | 120 | 10.3 |
| 10 | 18 | 95 | 122 | 12.4 |
for block installation
Dimensions in mm
|
1 |
Rotary knob security lock (all positions can be locked), rotation range 300° corresponds to 10 scale sections |
|
2 |
Scaling |
|
3 |
Name plate |
|
4 |
Depth of fit |
|
5 |
Attention! Install port A and B outside the range of the mounting bores M5 – Risk of breaking! |
|
6 |
NG5: 4 hexagon socket head cap screws ISO 4762 - M5 x 16 - 10.9-flZn-240h-L (Friction coefficient μtotal = 0.09 to 0.14); Tightening torque MA = 7 Nm ± 10 % Material no. R913000468 |
|
NG10: 4 hexagon socket head cap screws ISO 4762 - M5 x 20 - 10.9-flZn-240h-L (Friction coefficient μtotal = 0.09 to 0.14); Tightening torque MA = 7 Nm ± 10 % Material no. R913000488 |
Dimensions in mm
