DR6DP1-5X/150YMV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

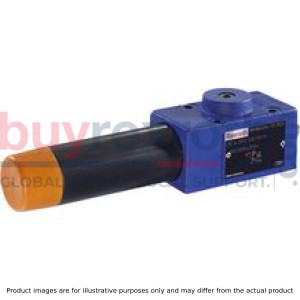

The Bosch Rexroth DR6DP1-5X/150YMV (R900450073) is a high-performance direct operated pressure reducing valve designed for subplate mounting, with way version and pressure limitation capabilities for secondary circuits. This valve ensures the limitation of system pressure by setting the secondary pressure via an adjustment type, which can be selected from options such as a rotary knob, threaded pin with hexagon and protective cap, lockable rotary knob with scale, or a rotary knob with scale. In its initial position, the DR6DP1-5X/150YMV valve allows unrestricted flow from channel P to channel A, while simultaneously applying pressure through a control line at the piston area opposite the compression spring. The set pressure in channel A is maintained at a constant level by the movement of the control spool in response to any excess over the value set by the compression spring. Internal signal and pilot oil are routed via the control line from channel A. The valve is engineered to respond to increased pressure in channel A caused by external forces on the actuator by pushing the control spool against the compression spring and connecting channel A to channel TY through the control edge on the spool. This action enables hydraulic fluid to be discharged into the tank, maintaining only a slight increase in pressure. Leakage oil from the spring chamber is discharged externally via channel TY. For free flow back from channel A to channel P, there's an option to install a check valve. Monitoring of secondary pressure is facilitated through a pressure gauge connection. This Bosch Rexroth valve conforms to DIN form A and ISO porting patterns and comes with an optional locating hole. It supports various adjustment types for precise operation, offering versatility in application use. The DR6DP1-5X/150YMV has specific size components within series X, maximum operating pressures measured in bar, and maximum flow rates detailed in liters per minute (l/min), ensuring compatibility across different hydraulic systems requiring reliable pressure regulation.
