2FRM10-3X/5Q
Manufacturer: Bosch Rexroth
Material #: R900424732
Model : 2FRM10-3X/5Q
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

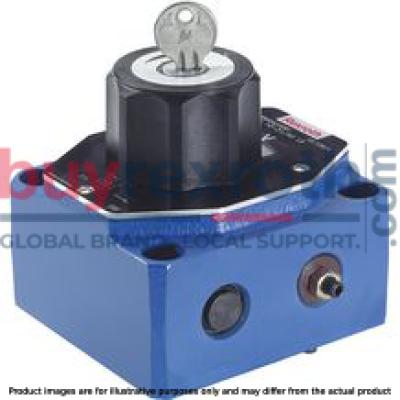

The Bosch Rexroth 2FRM10-3X/5Q (R900424732) is a meticulously engineered flow control valve designed to maintain a consistent flow rate, largely unaffected by fluctuations in pressure and temperature. This precision is achieved through its robust construction that includes a housing, an orifice bush, and a pressure compensator with an optional stroke limitation feature. The valve integrates a check valve and an adjustment element for precise flow regulation.
A key feature of the 2FRM10-3X/5Q is its mechanically adjustable curved bolt, which sets the throttle cross-section via the adjustment element, allowing for fine-tuned control over fluid flow rates. Additionally, the geared piston drive comes with an adjustable stroke limitation to secure the desired adjustment range. A built-in pressure compensator ensures a stable and constant flow at the throttling point despite external pressure changes.
The valve's design also accounts for temperature variations, maintaining consistent operation through its orifice design at the throttling point. Fluid return from channel B to channel A is facilitated by the check valve without affecting the regulated flow from channel A to B.
For applications involving oscillating flows, this model can be paired with a rectifier sandwich plate type ZS installed beneath it for controlled forward and reverse flows. The 2FRM10-3X/5Q is designed for subplate mounting with porting patterns conforming to DIN form G and ISO standards. It offers mechanical actuation and features options such as pressure compensator stroke limitation and startup jump reduction.
With its size 10 designation and Component series X, this Bosch Rexroth flow control valve can withstand maximum operating pressures up to bar levels specified in its technical documentation and can manage maximum flow rates measured in liters per minute (l/min). These specifications make it suitable for various hydraulic applications requiring precise flow control.
$1,118.00 USD
More are expected on October 7, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as October 7, 2024 when ordered in
This product is eligible for factory repair.
Flow control valves type 2FRM are 2-way flow control valves. They are used to maintain a constant flow, mostly independent of pressure and temperature.
Generally, the valves consist of housing (1), orifice bush (2), pressure compensator (3) with optional stroke limitation (3.1), check valve (4), adjustment element (5) at type 2FRM as well as geared piston drive (6), and directional valve (7). The flow from channel A to channel B is throttled at the throttling point (9). The throttle cross-section of type 2FRM is set by mechanically turning the curved bolt (10) over the adjustment element (5). The positioning velocity can be set by means of the throttle check valve (6.3 and 6.4). To fix the required adjustment range, the geared piston drive (6) is equipped with an adjustable stroke limitation (6.1 and 6.2) on both sides. An upstream pressure compensator (3) is included to ensure a pressure-independent and constant flow at throttling point (9).
Temperature independence is achieved thanks to the orifice design of the throttling point.
The free return flow from channel B to channel A is directed via the check valve (4).
The regulated flow only flows from channel A to B.
For oscillating flows (forward and return flow), a rectifier sandwich plate type Z4S can be installed under the flow control valve.
Type 2 FRM...
Section X–X
(measured with HLP46, ϑOil = 40 ±5 °C)
Flow control (A to B)
NG10
Flow control (A to B)
NG16
Free return flow (B to A)
NG10
Free return flow (B to A)
NG16
|
simplified |
Detailed |
|
|
Type 2FRM |
|
|
Dimensions in mm
|
NG |
B1 |
B2 |
B3 |
B4 |
B5 |
B6 |
ØD1 |
ØD2 |
D3 |
H1 |
H2 |
H3 |
H4 |
H5 |
L1 |
L2 |
L3 |
L4 |
T1 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 10 | 101.5 | 82.5 | 9.5 | 68 | 58.7 | 35.5 | 9 | 15 | 6 | 125 | 95 | 26 | 51 | 60 | 95 | 76 | 9.5 | 79.4 | 13 |
| 16 | 123.5 | 101.5 | 11 | 81.5 | 72.5 | 41.5 | 11 | 18 | 6 | 147 | 117 | 34 | 72 | 82 | 123.5 | 101.5 | 11 | 102.4 | 12 |
Subplates (separate order)
Size 10:
G 279/01 (G 1/2)
G 280/01 (G 3/4)
Size 16:
G 281/01 (G 1)
G 282/01 (G 1 1/4)
Valve mounting screws (separate order)
Size 10:4 hexagon socket head cap screws ISO 4762 - M8 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 30 Nm ± 10 %,
Material no. R913000543
Size 16:4 hexagon socket head cap screws ISO 4762 - M10 x 80 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 64 Nm ±10 %,
Material no. R913000496
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
