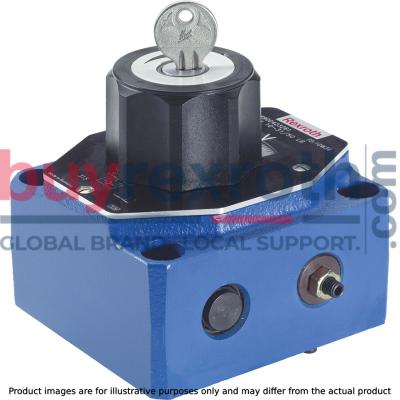

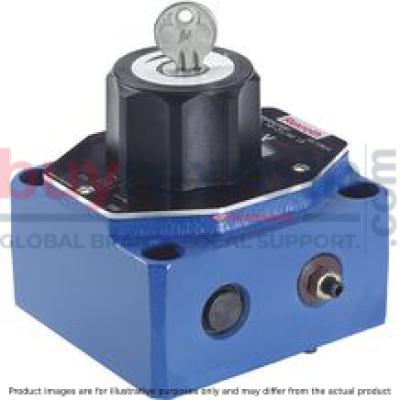

FLOW-CONTROL VALVE 2FRM10-3X/50LB
Manufacturer: Bosch Rexroth
Material #: R900423261
Model : 2FRM10-3X/50LB
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 2FRM10-3X/50LB (R900423261) is a high-performance industrial hydraulic valve, specifically designed for reliable control of flow to the set value. It is a direct-actuated, size 10 valve with a maximum operating pressure and features a lockable rotary knob with scale for precise adjustments. The valve is characterized by its mechanical actuation and includes a pressure compensator with optional stroke limitation, ensuring consistent flow regardless of pressure fluctuations.
This model comes equipped with NBR seals and is compatible with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. Its robust construction includes an orifice bush and check valve that facilitate a constant flow largely independent of pressure and temperature changes. The flow control valves type FRM are two-way valves that throttle the flow from channel A to B, while allowing free return flow from B to A through the check valve. Additionally, for applications requiring oscillating flows in both directions, an optional rectifier sandwich plate type ZS can be installed under the valve.
The 2FRM10-3X/50LB has subplate mounting capabilities with porting patterns according to DIN form G and ISO standards. It also features startup jump reduction for smoother operation upon system activation. The component series X of this model indicates its recency in design evolution within Bosch Rexroth's product offerings.
Designed for precision and durability, this Bosch Rexroth hydraulic valve is suitable for various applications where controlled fluid dynamics are critical. With its ability to maintain steady flow rates despite external factors such as pressure changes or temperature variations, it ensures optimal performance in industrial settings that demand reliability and accuracy in fluid control systems.
$1,128.00 USD
More are expected on April 21, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as April 21, 2025 when ordered in
This product is eligible for factory repair.
Size 10, A → B, B → A, mechanically actuated
Industrial hydraulic valve in a high performance range. Reliable control of the flow to setting value.
Unpacked Weight: 3.36 kg
For subplate mounting Porting pattern according to DIN 24340 form G and ISO 6263 Mechanical actuation Pressure compensator stroke limitation, optional Start-up jump reduction Flow control in both directions through rectifier sandwich plate
Flow control valves type 2FRM are 2-way flow control valves. They are used to maintain a constant flow, mostly independent of pressure and temperature.
Generally, the valves consist of housing (1), orifice bush (2), pressure compensator (3) with optional stroke limitation (3.1), check valve (4), adjustment element (5) at type 2FRM as well as geared piston drive (6), and directional valve (7). The flow from channel A to channel B is throttled at the throttling point (9). The throttle cross-section of type 2FRM is set by mechanically turning the curved bolt (10) over the adjustment element (5). The positioning velocity can be set by means of the throttle check valve (6.3 and 6.4). To fix the required adjustment range, the geared piston drive (6) is equipped with an adjustable stroke limitation (6.1 and 6.2) on both sides. An upstream pressure compensator (3) is included to ensure a pressure-independent and constant flow at throttling point (9).
Temperature independence is achieved thanks to the orifice design of the throttling point.
The free return flow from channel B to channel A is directed via the check valve (4).
The regulated flow only flows from channel A to B.
For oscillating flows (forward and return flow), a rectifier sandwich plate type Z4S can be installed under the flow control valve.
Type 2 FRM...
Section X–X
(measured with HLP46, ϑOil = 40 ±5 °C)
Flow control (A to B)
NG10
Flow control (A to B)
NG16
Free return flow (B to A)
NG10
Free return flow (B to A)
NG16
|
simplified |
Detailed |
|
|
Type 2FRM |
|
|
Dimensions in mm
|
NG |
B1 |
B2 |
B3 |
B4 |
B5 |
B6 |
ØD1 |
ØD2 |
D3 |
H1 |
H2 |
H3 |
H4 |
H5 |
L1 |
L2 |
L3 |
L4 |
T1 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| 10 | 101.5 | 82.5 | 9.5 | 68 | 58.7 | 35.5 | 9 | 15 | 6 | 125 | 95 | 26 | 51 | 60 | 95 | 76 | 9.5 | 79.4 | 13 |
| 16 | 123.5 | 101.5 | 11 | 81.5 | 72.5 | 41.5 | 11 | 18 | 6 | 147 | 117 | 34 | 72 | 82 | 123.5 | 101.5 | 11 | 102.4 | 12 |
Subplates (separate order)
Size 10:
G 279/01 (G 1/2)
G 280/01 (G 3/4)
Size 16:
G 281/01 (G 1)
G 282/01 (G 1 1/4)
Valve mounting screws (separate order)
Size 10:4 hexagon socket head cap screws ISO 4762 - M8 x 50 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 30 Nm ± 10 %,
Material no. R913000543
Size 16:4 hexagon socket head cap screws ISO 4762 - M10 x 80 - 10.9-flZn-240h-L
(friction coefficient μtotal = 0.09 to 0.14);
Tightening torque MA = 64 Nm ±10 %,
Material no. R913000496
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
Mating connectors for valves with connector “K4”, without circuitry, standard
3P Z4
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
Mating connectors for valves with connector “K4”, with indicator light
3P Z5L
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
Mating connectors for valves with connector “K4”, with indicator light and Zener diode suppression circuit
3P Z5L1
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
Mating connectors for valves with connector “K4”, with rectifier
3P RZ5
For valves with connector “K4” according to EN 175301-803 and ISO 4400, 2-pole + PE, “large cubic connector” Mating connectors for valves with one or two solenoids (individual connection)Data sheet
Spare parts & repair
