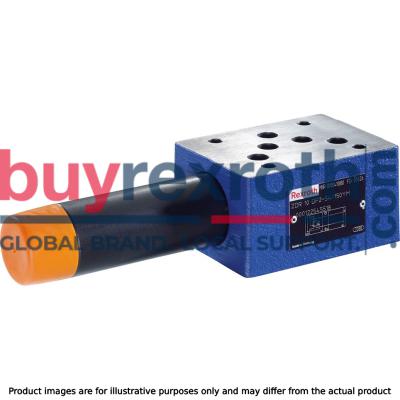

PRESSURE RED.VALVE INTERMEDIATE PLATE ZDR10DP2-5X/75YM
Manufacturer: Bosch Rexroth
Material #: R900410875
Model : ZDR10DP2-5X/75YM
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth ZDR10DP2-5X/75YM (R900410875) is a meticulously engineered industrial hydraulic valve designed for direct operation and reliable pressure reduction in various hydraulic systems. This valve, part of the high-performance range, features a spool valve that is directly operated and allows for mechanical actuation. It comes with an adjustment range up to 75 bar and can maintain a consistent pressure level thanks to its robust design.
The ZDR10DP2-5X/75YM valve is characterized by its size 10 interface, conforming to both NFPA T3.5.1 R2 D03 and ISO 4401 standards, which ensures compatibility with a wide range of sandwich plate connections. The maximum operating pressure this valve can withstand is 315 bar, while it can facilitate a maximum flow of 80 liters per minute, making it suitable for various hydraulic applications requiring precise pressure control.
Equipped with NBR seals, the ZDR10DP2-5X/75YM is compatible with multiple types of hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. Its versatility extends to the number of ports available and includes an option for mechanical actuation. Additionally, this model offers different versions (A, P, B) to cater to specific circuit configurations and requirements.
The unit's design incorporates a control spool sided by a compression spring that allows users to set secondary pressures accurately through an adjustment type mechanism. The inclusion of an optional check valve facilitates free flow back from channel A in version A of the valve. For monitoring purposes, there is also provision for a pressure gauge connection.
In summary, the Bosch Rexroth ZDR10DP2-5X/75YM (R900410875) stands out as a high-quality pressure reducing valve suitable for applications where precise control over system pressure is essential. Its robust construction and adaptability make it an ideal choice for demanding hydraulic tasks.
$714.00 USD
Availability: 1 In Stock
Available for immediate shipmentQty: Delivered as early as May 14, 2024 when ordered in
This product is eligible for factory repair.
Size 10, P2 → P1, mechanical
Industrial hydraulic valve in a high performance range. Reliable pressure reduction to setting value.
Unpacked Weight: 2.48 kg
Sandwich plate valve Porting pattern according to ISO 4401-05-04-0-05 4 pressure ratings 4 optional adjustment types:• Rotary knob• Sleeve with hexagon and protective cap• Lockable rotary knob with scale• Rotary knob with scale Check valve, optional (version "A") Pressure reduction in channel A, B or channel P
The valve type ZDR is a direct operated pressure reducing valve in sandwich plate design with pressure limitation of the secondary circuit. It is used to reduce the system pressure.
The pressure reducing valve basically comprises housing (1), control spool (2), compression spring (3), adjustment type (4) and an optional check valve.
The secondary pressure is set via the adjustment type (4).
Version “A”
The valve is open in initial position. Hydraulic fluid can flow from channel A➀ to channel A➀ without restrictions. The pressure in channel A➀ is simultaneously applied via the control line (5) at the piston area opposite the compression spring (3). If the pressure in channel A➀ exceeds the value set at the compression spring (3), the control spool (2) is pushed against the compression spring (3) to control position and keeps the set pressure in channel A➀ at a constant level.
Control signal and pilot oil are supplied internally via the control line (5) from channel A➀.
If the pressure in channel A➀ increases further due to an external force effect at the actuator, it pushes the control spool (2) even further against the compression spring (3).
In this way, channel A➀ is connected to the tank (channel TB) via the control edge (6) at the control spool (2) and the housing (1). So much hydraulic fluid is discharged into the tank, that the pressure does not increase any further.
The leakage oil drain from the spring chamber (7) is always effected externally via channel TA.
A pressure gauge connection (8) allows for the control of the secondary pressure at the valve.
A check valve can be used for free flow back from channel A➀ to A➀ with version “A”.
Versions “P” and “B”
For version “P”, the pressure reduction is effected in channel P➀. Control signal and pilot oil are supplied internally from channel P➀.
For version “B”, the pressure is reduced in channel P➀; but the pilot oil is extracted from channel B. If the directional valve is in spool position P to A, the pressure in channel B may not exceed the set secondary pressure. Otherwise, there is pressure reduction in channel A.
Attention!
If used without directional valve, channels TA and TB are connected to each other (e. g. in the cover plate). During set-up of a directional seat valve NG 10, a sandwich plate type HSZ10A078-3X/M00 (material no. R900537264) has to be used.Type ZDR 10 DA …
|
➀ |
component side |
|
➁ |
plate side |
(measured with HLP46, ϑOil = 40 ±5 °C)
pA-qV characteristic curves
Version "A"
pA-qV characteristic curves
Version “B” and “P”
Notice!
The curve development is maintained if the pressure is set lower according to the pressure rating.
Δpmin-qV characteristic curves
Version "A"
Δpmin-qV characteristic curves
Version “B” and “P”
Δp-qV characteristic curves
Version "A"
The characteristic curves apply to the pressure at the valve output pT = 0 barbar across the entire flow range.
|
➀ |
component side |
|
➁ |
plate side |
Type ZDR 10 DP…YM…
Type ZDR 10 DA…YM…
Type ZDR 10 DB…YM…
Type ZDR 10 DA…Y…
Notice!
Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet.
Dimensions in mm
|
Version |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
B1 |
B2 |
B3 |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
| A | 254 | 230 | 210 | 104 | 93 | 31.5 | 3.8 | 32.9 | 51 | 12 |
| B, P | 242 | 218 | 198 | 91 | - | 18.5 | 15.8 | 35 | - | - |
|
1 |
Name plate |
|
2 |
Adjustment type "1" |
|
3 |
Adjustment type "2" |
|
4 |
Adjustment type "3" |
|
5 |
Adjustment type "7" |
|
6 |
Space required to remove the key |
|
7 |
Valve mounting bores |
|
8 |
Lock nut SW24 |
|
9 |
Hexagon SW10 |
|
10 |
Identical seal rings for ports A, B, P, TA, TB |
|
11 |
Pressure gauge connection G1/4; 12 mm deep; internal hexagon SW6 |
|
➀ |
component side – Porting pattern according to ISO 4401-05-04-0-05 |
|
➁ |
plate side – Porting pattern according to ISO 4401-05-04-0-05 |
Valve mounting screws (separate order)
4 hexagon socket head cap screws ISO 4762 - M6 - 10.9
Notices!
Length and tightening torque of the valve mounting screw must be calculated in connection with the components mounted underneath and above the sandwich plate valve. To port X and Y bored according to ISO 4401-05-05-0-05 (e. g. for pilot-operated directional valve NG 10), version “SO30” applies at the end of the ordering code! Deviating from ISO 4401, port T is referred to as TA and port T1 is referred to as TB in this data sheet.Related Products
