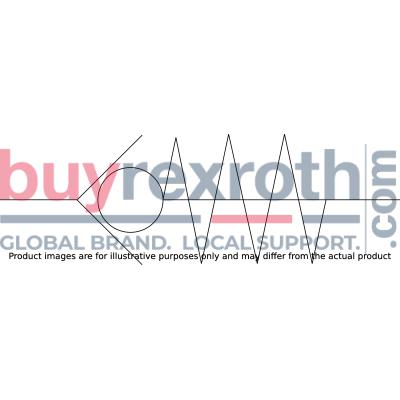

HY-CHECK VALVE M-SR 25 KE50-1X/
Manufacturer: Bosch Rexroth
Material #: R900351943
Model : M-SR 25 KE50-1X/
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth M-SR 25 KE50-1X (R900351943) is a high-performance check valve designed for hydraulic applications that require reliable, leakage-free blocking in one direction. This direct-acting cartridge valve is crafted to ensure precise control of fluid flow within hydraulic systems. With its poppet-type spool, the M-SR 25 KE50-1X ensures a secure seal when closed, preventing reverse flow and potential system damage.
Capable of handling a maximum operating pressure of up to 315 bar (4568 psi) and a nominal flow rate, this valve is built for demanding applications. Its robust design allows for installation in block designs, functioning as either an angle valve or a straight-through valve depending on system requirements. The sealing material used in the construction of this valve is NBR (Nitrile Butadiene Rubber), which provides excellent resistance to hydraulic fluids such as HL, HLP, and HFC.
The M-SR 25 KE50-1X does not come with a pressure presetting, offering flexibility for various cracking pressures which are available optionally to suit different application needs. The product's weight and dimensions are optimized for ease of integration into existing systems without adding excessive bulk or complexity.
Overall, the Bosch Rexroth M-SR 25 KE50-1X check valve is a versatile component that delivers consistent performance and reliability for industrial hydraulic systems requiring controlled flow direction with minimal leakage risk.
$374.37 USD
More are expected on September 26, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as September 26, 2024 when ordered in
This product is eligible for factory repair.
Angle valve (measured with HLP46, ϑOil = 40 ±5 °C)
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 8
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 10
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 15
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 20
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 25
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 30
Straight-through valve (measured with HLP46, ϑOil = 40 ±5 °C)
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 6
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 8
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 10
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 15
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 20
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 25
Pressure differential Δp dependent on the flow qV at cracking pressure
Size 30
With spring
Without spring
Angle valve "KE"
Dimensions in mm
Straight-through valve "KD"
Dimensions in mm
| 1) | For dimensions, see installation bores |
|
NG |
L-0,1 |
|
mm |
|
| 6 | - |
| 8 | 36.3 |
| 10 | 39.3 |
| 15 | 45.8 |
| 20 | 55.3 |
| 25 | 74.3 |
| 30 | 83.3 |
|
1 |
Plug screws, separate order, see "Accessories" |
|
2 |
Seat with -60 °C shrink-fitted |
|
3 |
Poppet stroke |
Installation bores
Installation bore: Angle valve "KE" – plug screw according to ZN 10001
Dimensions in mm
| 1) | Dimensions for countersinking the screw head. For lower installation of the installation kit, dimension T7 has to be extended accordingly. |
| 2) | Depth of fit |
| 3) | Pipe thread "G" according to ISO 228/1 |
|
1 |
Range for outlet bore |
|
NG |
pN |
ØD1 |
ØD2 |
D3 |
ØD4H8 |
ØD5 |
ØD6H7 |
T1 |
T2 |
T3 |
T4 |
T5 |
T6 |
T7 |
X |
Z |
||
|
bar |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
| 8 | 420 | 23 | 17.1 | G3/8 | 14 | 8 | 13 | 48.5 | + 0.1 | 47.5 | 38.5 | 20 | 15 | 12 | 6 | + 0.5 | 18 | 0.05 |
| 10 | 420 | 28 | 21.4 | G1/2 | 18 | 10 | 17 | 53.5 | + 0.1 | 52.5 | 43.5 | 24 | 18 | 14 | 6 | + 0.5 | 19 | 0.05 |
| 15 | 420 | 33 | 26.8 | G3/4 | 24 | 15 | 22 | 62 | + 0.1 | 60.5 | 50 | 26 | 20.5 | 16 | 6 | + 0.5 | 24 | 0.05 |
| 20 | 420 | 41 | 33.8 | G1 | 30 | 20 | 28 | 71.5 | + 0.1 | 70 | 56.5 | 26 | 20.5 | 16 | 7 | + 0.5 | 30 | 0.05 |
| 25 | 250 | 51 | 42.5 | G1 1/4 | 38 | 25 | 36 | 90.5 | + 0.1 | 88 | 72.5 | 28 | 22 | 16 | 7 | + 0.5 | 43 | 0.1 |
| 30 | 250 | 56 | 48.5 | G1 1/2 | 44 | 30 | 42 | 99.5 | + 0.1 | 96.5 | 79.5 | 31 | 22 | 16 | 7 | + 0.5 | 48 | 0.1 |
Notice:
Plug screws, separate order, see "Accessories"
Oiling of plug screws prior to installation is recommended.
Installation bore: Angle valve – plug screw according to RN 143.28 – up to 315 bar
Dimensions in mm
| 1) | Dimensions for countersinking the screw head. For lower installation of the installation kit, dimension T7 has to be extended accordingly. |
| 2) | Depth of fit |
| 3) | Metric ISO fine thread according to DIN 13 |
|
1 |
Range for outlet bore |
|
NG |
pN |
ØD1 |
ØD2H8 |
D3 |
ØD4H8 |
ØD5 |
ØD6H7 |
T1 |
T2 |
T3 |
T4 |
T5 |
T6 |
T7 |
T8 |
X |
||||
|
bar |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
| 25 | 315 | 56 | + 0.5 | 44 | M42 x 1,5 | 38 | 25 | 36 | 106.5 | + 0.1 | 104 | 88.5 | 45 | 39 | 33 | 5 | + 0.5 | 12 | + 0.2 | 43 |
| 30 | 315 | 62 | + 0.5 | 50 | M48 x 1,5 | 44 | 30 | 42 | 115.5 | + 0.1 | 112.5 | 95.5 | 48 | 39 | 33 | 5 | + 0.5 | 12 | + 0.2 | 48 |
Notice:
Plug screws, separate order, see "Accessories"
To be replaced in case of maintenance.
Installation bore: Angle valve – plug screw according to RN 143.28 – up to 420 bar
Dimensions in mm
| 1) | Dimensions for countersinking the screw head. For lower installation of the installation kit, dimension T7 has to be extended accordingly. |
| 2) | Depth of fit |
| 3) | Metric ISO fine thread according to DIN 13 |
|
1 |
Range for outlet bore |
|
NG |
pN |
ØD1 |
ØD2H8 |
D3 |
ØD4H8 |
ØD5 |
ØD6H7 |
ØD7 |
ØD8 |
T1 |
T2 |
T3 |
T4 |
T5 |
T6 |
T7 |
T8 |
X |
||||
|
bar |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
||
| 25 | 420 | 51 | + 0.5 | 44 | M42 x 2 | 38 | 25 | 36 | 37.58 | 35.58 | 101.5 | + 0.1 | 100 | 83.5 | 40 | 34 | 27 | 6 | + 0.5 | 7.8 | + 0.2 | 43 |
| 30 | 420 | 61 | + 0.5 | 50 | M48 x 2 | 44 | 30 | 42 | 43.58 | 41.58 | 110.5 | + 0.1 | 108.5 | 90.5 | 43 | 34 | 27 | 6 | + 0.5 | 7.8 | + 0.2 | 48 |
Notice:
Plug screws, separate order, see "Accessories" Oiling of plug screws prior to installation is recommended. From an operating pressure larger 350 bar, the plug screw has to be glued by means of Loctite 243 over the complete thread circumference.Installation bore: Straight-through valve
Dimensions in mm
|
NG |
ØD1H7 |
ØD3H8 |
D4 1) |
ØD5 |
D4 2) |
ØD5 |
ØD6 |
T1 |
T2 3) |
T3 |
T4 3) |
T5 |
T6 |
Z |
Poppet stroke |
|||
|
mm |
mm |
mm 1) |
mm |
mm 2) |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||
| 6 | 10 | 11 | G1/4 | 13.6 | ± 0.1 | M14 x 1,5 | 14.4 | ± 0.1 | 25 | 29.8 | - 0.1 | 27.8 | 21.8 | 19 | 12 | 16 | 0.1 | 4 |
| 8 | 13 | 14 | G3/8 | 17.1 | ± 0.1 | M18 x 1,5 | 18.4 | ± 0.1 | 28 | 32.8 | - 0.1 | 30.8 | 22.8 | 18 | 12 | 16 | 0.1 | 4 |
| 10 | 17 | 18 | G1/2 | 21.4 | ± 0.1 | M22 x 1.5 | 22.4 | ± 0.1 | 34 | 38.8 | - 0.1 | 36.8 | 28.8 | 21 | 14 | 19 | 0.1 | 4 |
| 15 | 22 | 24 | G3/4 | 26.8 | ± 0.1 | M27 x 2 | 27.4 | ± 0.1 | 42 | 48.4 | - 0.1 | 46.4 | 36.4 | 27 | 16 | 21 | 0.2 | 5 |
| 20 | 28 | 30 | G1 | 33.8 | ± 0.1 | M33 x 2 | 33.5 | ± 0.1 | 47 | 59 | - 0.1 | 57 | 44 | 29 | 18 | 24 | 0.2 | 5 |
| 25 | 36 | 38 | G1 1/4 | 42.5 | ± 0.1 | M42 x 2 | 42.5 | ± 0.1 | 58 | 73 | - 0.1 | 71 | 55 | 39 | 20 | 26 | 0.2 | 7 |
| 30 | 42 | 44 | G1 1/2 | 48.5 | ± 0.1 | M48 x 2 | 48.5 | ± 0.1 | 65 | 83 | - 0.1 | 81 | 63 | 42 | 22 | 28 | 0.2 | 7 |
| 1) | Pipe thread "G" according to ISO 228/1 |
| 2) | Metric ISO fine thread according to DIN 13 |
| 3) | Depth of fit |
