M-3SED10CK1X/350CG24N9K4/B22

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

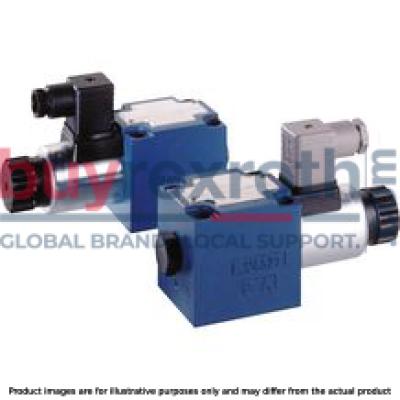

The Bosch Rexroth M-3SED10CK1X/350CG24N9K4/B22 (R900219646) is a high-performance directional seat valve designed for controlling the start, stop, and direction of fluid flow in hydraulic systems. This direct-operated valve features solenoid actuation and includes a manual override for operation without electrical power. The valve's basic principle relies on a spring-determined initial position, which can be either normally open (UK) or normally closed (CK), ensuring the system's reliability and responsiveness. This model incorporates a special closing element that allows ports P, A, and T to withstand maximum operating pressures, enabling bidirectional flow. The leak-free blockage of flow in its initial position is guaranteed by the spring-pressed closing element against the valve seat, while solenoid actuation presses it onto an alternate seat to allow flow. The M-3SED10CK1X/350CG24N9K4/B22 also includes a Plus plate for extended functionality, mimicking the capabilities of a 3/2-way directional seat valve when used with a sandwich plate. Additionally, this Bosch Rexroth valve offers several advanced features such as pressure compensation for stable operation regardless of external forces and an optional throttle insert to manage excessive flows under certain operating conditions. A check valve insert is available for scenarios requiring free flow from P to A while preventing backflow from A to P. The unit is engineered for dependable long-term use even when subjected to pressure over extended periods of downtime. It comes with wet-pin DC solenoids that have detachable coils for easy maintenance; AC voltage compatibility through an external rectifier; rotatable coils for installation flexibility; and options for concealed manual override. For enhanced monitoring capabilities, inductive position switches or contactless proximity sensors can be fitted to detect the valve's position without physical contact. This robust construction and thoughtful design make the M-3SED10CK1X/350CG24N9K4/B22 an essential component in sophisticated hydraulic systems requiring precise control and reliability.
