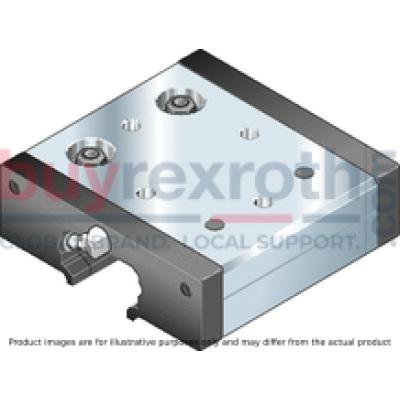

CAM ROLLER RUNNER BLOCK ALUMINUM LWA-020-SNS-FN-E-0

Manufacturer: Bosch Rexroth

Material #: R190211900

Model : C.ROL.R.BLOCK AL LWA-020-SNS-FN-E-0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth C.ROL.R.BLOCK AL LWA-020-SNS-FN-E-0 (R190211900) is a high-quality cam roller runner block designed for linear motion systems. This component is part of the size E profiled rail systems and is constructed with an aluminum body for a lightweight yet durable structure. The runner block features a slimline width, standard height, and normal length, falling under the economic accuracy class E. It boasts a standard load-carrying capacity suitable for various applications. Equipped with a two-row angular-contact ball bearing, this runner block is sealed and lubricated for life, ensuring reliable performance and minimal maintenance requirements. The guide tracks are secured and made from corrosion-resistant precision steel shafts, enhancing the system's longevity. Notably, the runner block can be adjusted to zero clearance using eccentric spigots, allowing for precise movement control. The Bosch Rexroth C.ROL.R.BLOCK AL has interchangeable elements that withstand high loads in all four main directions, including moments about all axes. It includes wiper and lubrication units on both sides with large oil reservoirs, further contributing to its efficiency and extended service life. With its self-aligning capabilities, the runner block compensates for any misalignments in the system, ensuring smooth operation even under less-than-ideal conditions. The product operates effectively within a temperature range of -10°C to +100°C and can handle maximum permissible speeds (vmax) for average loads without preload clearance. This cam roller runner block is part of product group ID 20 and has been specifically developed by Rexroth for use in handling and automation technology applications due to its robust design and dynamic performance capabilities. With an overall weight of 0.3 kg (nominal size), it offers an optimal balance between strength and maneuverability within linear motion systems.

$311.00 USD

More are expected on February 18, 2025

Add to Cart

Status: This product is temporarily out of stock.

Qty: Delivered as early as February 18, 2025 when ordered in

CAM ROLLER RUNNER BLOCK ALUMINUM LWA-020-SNS-FN-E-0

The cam roller runner block is characterized by the following product features: Format SNS, size 20, aluminum, accuracy economic, load class FN

The cam roller runner block is characterized by the following product features:
Size 20
Format SNS: Width = slimline, length = normal, height = standard
Runner block body made of aluminum
Standard load carrying capacity
Accuracy class E: Economic
Without preservation
Without initial lubrication
Attachment element, left (front reference edge): front lube unit with low-friction seal
Attachment element, right (front reference edge): Front lube unit with low-friction seal
Lube nipple included
Standard version
Overall length of the runner block = 86
Interchangeable element

Unpacked Weight: 0.18 kg

Rexroth cam roller guides were specially developed for handling and automation technology.

Product overview

High load capacity in all four main directions of loading including moments about all axes
Wiper and lubrication units with large oil reservoir on both sides
Lube nipples possible on both sides
The runner block can be simply adjusted to zero clearance by means of eccentric spigots
Two-row angular-contact ball bearing, sealed and lubricated for life
Secured guide tracks made of corrosion-resistant precision steel shafts

Data Sheet	Download Data Sheet
2D CAD	Download 2D CAD
2D CAD	Download 2D CAD
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Footnote for maximum static load due to a resulting force in the y-direction F0y max	Observe the permissible lateral force of the guide rail (see notes for mounting).
Maximum static load due to a resulting force in the y-direction F0y max	700
Height of runner block	8.5
Size SW2	2
Size E3 (profiled rail systems)	34
Dynamic load capacity in z-direction Cz	1336
Maximum operating temperature	+80
Static load capacity in z-direction C0z	783
Size E2 (profiled rail systems)	49
Maximum dynamic load in y-direction Fy max	700
Size SW3	2
Dynamic load capacity in y-direction Cy	2300
Max. acceleration amax	50
Minimum operating temperature	-20
Static load capacity in y-direction C0y	1600
Size A (profiled rail systems)	56
Size SW1	7
Self-aligning for compensation of misalignments	Without self-alignment
Maximum permissible linear speed vmax	10
Static torsional moment about the y-axis M0y	13,3
Lubrication	Without initial lubrication and without preservation
Ball chain	Without roller chain
Operating temperature	-20 °C ... +80 °C
Dynamic torsional moment around the z-axis Mz	39
Static torsional moment about the z-axis M0z	27
Maximum permissible dynamic torsional moment about the x-axis Mx max	3,2
Maximum permissible static torsional moment about the x-axis M0x max	4,8
Height of runner block with guide rail	22
Dynamic torsional moment around the y-axis My	22,7
Maximum static load due to a resulting force in the y-direction footnote	Observe the permissible lateral force of the guide rail (see notes for mounting).
Dynamic torsional moment around the x-axis Mx	10,7
Static torsional moment about the x-axis M0x	6,3
Maximum dynamic load in y-direction footnote	Observe the permissible lateral force of the guide rail (see notes for mounting).
Maximum dynamic load in z-direction Fz max	400
Size B2 (profiled rail systems)	7
Size B (profiled rail systems)	79
Note: Maximum permissible speed vmax	For average load.
Preload class	C0 – Without preload (clearance)
Maximum static load due to a resulting force in the z-direction F0z max	600
Maximum permissible dynamic torsional moment about the z-axis Mz max	12
Maximum permissible static torsional moment about the z-axis M0z max	12
Size B1 (profiled rail systems)	59
Size H (profiled rail system)	22
Size H3 (profiled rail systems)	20
Productgroup ID	17
Maximum permissible dynamic torsional moment about the y-axis My max	6,8
Size H2 (profiled rail systems)	13
Maximum permissible static torsional moment about the y-axis M0y max	10,2
Size E4	34
Runner block or guide rail	Runner block
Width of runner block	56
Length of runner block	79
Linear guide type	Cam roller guides
Size E1 (profiled rail systems)	39
Weight	0.18
Nominal size	20
Size H1 (profiled rail systems)	8.5
Note: Maximum dynamic load in y-direction Fy max	Observe the permissible lateral force of the guide rail (see instruction for mounting).

Technical data

Size		20	25	32	52	52-h	52-sh
Fy max 1)	N	700		1000	2500	4500	8000
F0y max 1)	N	700		1000	2500	4500	8000
Fz max	N	400		850	1500	2400	4800
F0z max	N	600	660	1400	2500	4000	7900
Mx max	Nm	3,2	3,8	11	32	50	101
M0x max	Nm	4,8	6	18	52	84	166
My max	Nm	6,8	9	26	45	126	288
M0y max	Nm	10,2	15	42	75	210	474
Mz max	Nm	12	16	30	75	236	480
M0z max	Nm	12	16	30	75	236	480
vmax 2)	m/s	10
amax	m/s²	50
Temperature stability		-20 °C ... +80 °C
Weight	kg	0.2	0.25	0.56	1.5	2.6	3.3

1)	Observe the permissible lateral force of the guide rail (see notes for mounting).
2)	For average load.
	Attention: Not to be used for the life expectancy calculation!
	For service life calculations use the load ratings and moments given in the tables for service life calculations.

Load ratings and moments for calculating the service life

Size		20	25	32	52	52-h	52-sh
Cy	N	2300	2550	7335	17150	27900	31000
C0y	N	1600	1780	4560	10200	15400	18200
Cz	N	1336	1357	4300	10050	16775	18400
C0z	N	783	803	2200	4900	7630	8750
MX	Nm	10,7	13	56	211	352	390
M0x	Nm	6,3	7,6	29	103	160	184
My	Nm	22,7	30,5	129	301	880	1100
M0y	Nm	13,3	18	66	147	400	520
Mz	Nm	39	57	220	515	1465	1860
M0z	Nm	27	40	137	306	808	1100

	Observe maximum permissible loads due to forces and moments as shown in the "Technical data” table!

Legend

Symbol	Description	Unit	Picture
Cy	Dynamic load capacity in y-direction	N
C0y	Static load capacity in y-direction	N
Cz	Dynamic load capacity in z-direction	N
C0z	Static load capacity in z-direction	N
Fy max	Maximum dynamic load in y-direction	N
F0y max	Maximum static load due to a resulting force in the y-direction	N
Fz max	Maximum dynamic load in z-direction	N
F0z max	Maximum static load due to a resulting force in the z-direction	N
Mx max	Maximum permissible dynamic torsional moment about the x-axis	Nm
M0x max	Maximum permissible static torsional moment about the x-axis	Nm
My max	Maximum permissible dynamic torsional moment about the y-axis	Nm
M0y max	Maximum permissible static torsional moment about the y-axis	Nm
Mz max	Maximum permissible dynamic torsional moment about the z-axis	Nm
M0z max	Maximum permissible static torsional moment about the z-axis	Nm
vmax	Maximum permissible speed	m/s
amax	Maximum acceleration travel	m/s2
MX	Dynamic torsional moment about the x-axis	Nm
M0x	Static torsional moment about the x-axis	Nm
My	Dynamic torsional moment about the y-axis	Nm
M0y	Static torsional moment about the y-axis	Nm
Mz	Dynamic torsional moment about the z-axis	Nm
M0z	Static torsional moment about the z-axis	Nm

Rigidity

An increased rigidity can be achieved with higher pre-tensioning force by using eccentric setting.

Acceleration

High accelerations are permitted if slippage is avoided. For this, the pre-tensioning force FV by increasing the eccentric setting; see diagram.

Attention: The maximum permissible load is reduced by the increase of the pre-tensioning force.

1)	Permissible range
2)	a = acceleration
3)	Fv/Cy = standard setting

1)	Eccentric setting
	Lube nipples
	Sizes 20 – 32:
	- Funnel-type lube nipple
	- Form B - thread M3
	Sizes 52 – 52-sh:
	- Hydraulic-type lube nipple
	- BM 6 DIN 71412
	Connection possible on two sides.

Dimensions

Size		20	25	32	52	52-h	52-sh
A	mm	56	65	86	130	145	155
B	mm	79	95	112	136	186	205
B1	mm	59	75	92	104	154	173
B2	mm	7			16
E1	mm	39	50	59	90	105	115
E2	mm	49	60	70		110	140
E3	mm	34	40	54	83.3	90	95
E4	mm	34	45	60		105	120
E5		M5		M8	M10		M12
H	mm	22	25	35.5	54.3	60.4
H1	mm	8.5	9	13	19.4	24
H2	mm	13	14.4	20.5	29.2	35.3
H3	mm	20	22.3	29.5	42.2	51
SW1	mm	7		10	16		18
SW2	mm	2		3	4		6
SW3	mm	2		4	6		8

Service life and load safety factor

Notes for mounting

Lubrication

Centric pins are already tightened when delivery.
