BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-U-1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

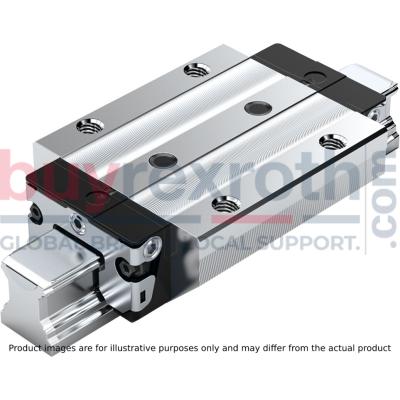

The Bosch Rexroth B.RUNNER BLOCK CS KWD-030-FLS-C1-U-1 (R16537192Z) is a high-precision ball runner block designed for linear motion applications requiring maximum precision and rigidity. This runner block features a size FLS format, which signifies a flange width, long length, and standard height. Made from unalloyed steel CS, it ensures durability and consistent performance. The runner block is classified under preload class C for low preload and accuracy class UP for ultra precision, ensuring smooth motion with minimal play. The B.RUNNER BLOCK CS KWD-030-FLS-C1-U-1 does not include a ball chain but comes with initial lubrication and preservation to reduce maintenance needs. It is equipped with roller bearing grease Dynalub for optimal operation. The product does not have attachment elements on the left or right front reference edges but does feature a straight lube connection that is loosely attached. With an overall length of the runner block at . mm, it offers interchangeability with guide rails of every accuracy level. This ball runner block excels in applications with stringent rigidity requirements by significantly reducing frictional oscillations and maintaining a low friction force level under external loads. Its dynamic characteristics are enhanced by the patented entry zone that increases travel accuracy up to six times. Additional features include long-term lubrication capabilities spanning several years, metal-threaded lube fittings on all sides, and an integrated all-around sealing system that contributes to its high torque load capacity. It also has two additional mounting screw holes at the center for improved rigidity under liftoff and side loading conditions. The Bosch Rexroth B.RUNNER BLOCK CS can be used with all SN/SNO ball guide rails and supports high load ratings in all four main directions of loading. Pre-lubricated at the factory, this component is ready to deliver maximum system rigidity right out of the box due to its preloaded O-arrangement design. Attachments can be mounted from both above and below the runner block, allowing for versatile installation options in various linear motion systems.
