BALL RUNNER BLOCK CARBON STEEL KWC-055-FNS-C1-H-2
Manufacturer: Bosch Rexroth
Material #: R165151310
Model : B.RUNNER BLOCK CS KWC-055-FNS-C1-H-2
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

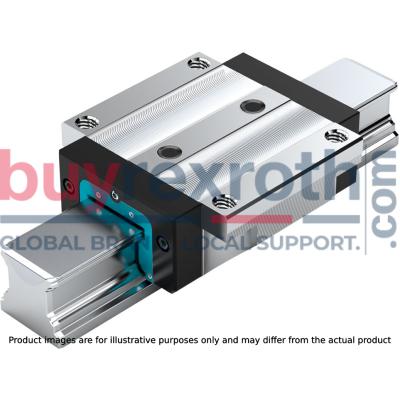

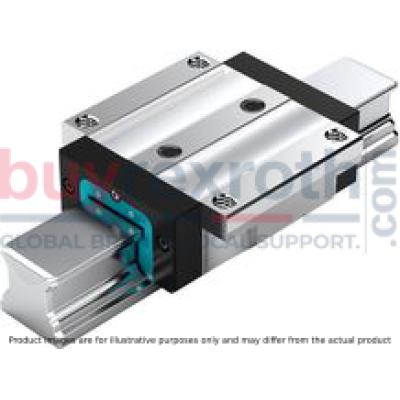

The Bosch Rexroth B.RUNNER BLOCK CS KWC-055-FNS-C1-H-2 (R165151310) is a high-precision ball runner block designed for linear motion applications requiring high rigidity and load-bearing capacity. This runner block, part of the Ball Rail Systems product line, is made from unalloyed steel CS and offers low preload in class C and high accuracy in class H, ensuring smooth and precise movement. It is notable for not including a ball chain and comes preserved without initial lubrication.
With an angular lube nipple loosely attached, this runner block body has a standard design with an overall length specified in the detailed product features. The B.RUNNER BLOCK CS is characterized by its ability to handle heavy-duty tasks in machine construction due to its extremely high load-bearing capacity. The robust design includes additional mounting screw holes at the center for improved stability under liftoff and side loading conditions.
This component allows for attachments from both above and below, which provides versatility in assembly. The innovative channel design ensures that only minimal lubrication quantities are needed, while the optimized ball return system contributes to smooth and quiet operation. The entry zone geometry coupled with a high number of balls reduces variation in elastic deflection across different applications.
The Bosch Rexroth runner block can be interchangeably used with all SNS Ball Guide Rails, offering limitless combinations with all versions of ball guide rail systems. This flexibility makes it an ideal choice for various industrial applications where customization is key. Furthermore, it can withstand a wide range of ambient temperatures as indicated in the specifications.
Overall, the B.RUNNER BLOCK CS KWC-055-FNS-C1-H-2 provides reliable performance with its dynamic load capacity C, static longitudinal moment load capacity ML, friction coefficient parameters, and various profiled rail system size options – all contributing to its suitability for demanding linear motion tasks.
$461.23 USD
More are expected on December 31, 2024
Status: This product is temporarily out of stock.
Qty: Delivered as early as December 31, 2024 when ordered in
