BALL RUNNER BLOCK CARBON STEEL KWD-020-SLS-C1-P-1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

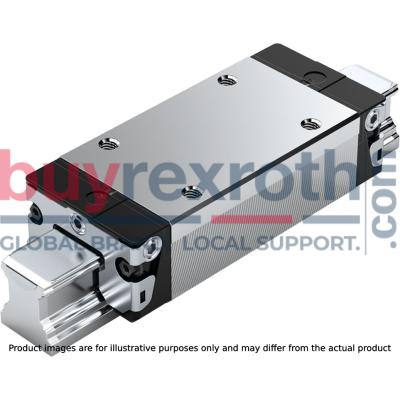

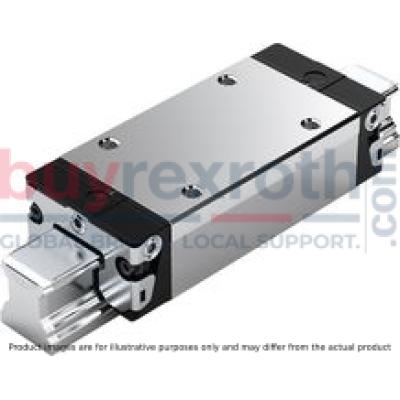

The Bosch Rexroth B.RUNNER BLOCK CS KWD-020-SLS-C1-P-1 (R16238122Z) is a high-precision ball runner block designed for linear motion systems. This component offers a slimline width, long length, and standard height, crafted from unalloyed steel CS. It features a low preload (Preload class C) and falls into the precision accuracy class (Accuracy class P). Notably, this model does not include a ball chain but comes with initial lubrication and preservation. The runner block is engineered for applications where space is restricted in the transverse direction but requires very high loads. It can sustain high load ratings in all four main directions of loading and allows for long-term lubrication over several years. The design ensures limitless interchangeability within each accuracy class, making it compatible with all ball guide rail systems offered by Bosch Rexroth. Furthermore, the B.RUNNER BLOCK CS KWD-020-SLS-C1-P-1 exhibits excellent dynamic characteristics due to its optimized entry-zone geometry and numerous balls which reduce elastic deflection variations. Attachments can be mounted from above thanks to its end-face fastening thread. The integrated all-around sealing protects against contaminants while the minimum quantity lubrication system ensures consistent oil delivery. This product is suitable for use on all SN/SNO ball guide rails and boasts a high torque load capacity. The detailed specifications include an overall length of the runner block at . mm, a dynamic load capacity C based on 100 km travel as per DIN ISO norms, and it operates effectively within an ambient temperature range of min ... max °C. In summary, the Bosch Rexroth B.RUNNER BLOCK CS KWD-020-SLS-C1-P-1 (R16238122Z) is designed for durability, precision, and versatility in challenging linear motion applications requiring compact design yet capable of handling significant loads with minimal frictional resistance.
