BALL RUNNER BLOCK CARBON STEEL KWD-020-SLS-C1-P-1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

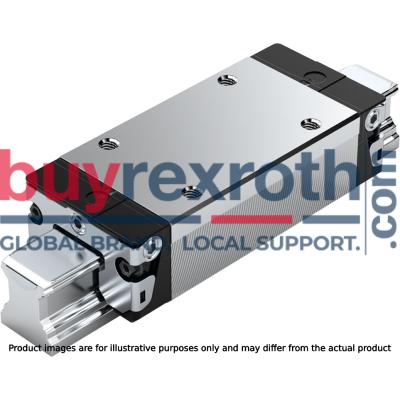

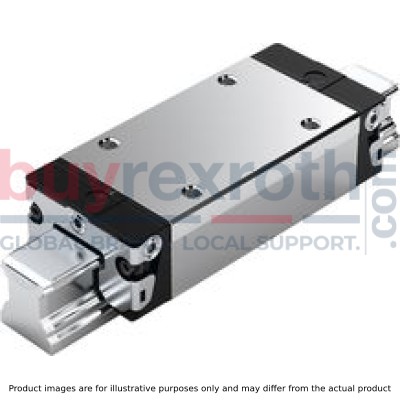

The Bosch Rexroth B.RUNNER BLOCK CS KWD-020-SLS-C1-P-1 (R162381220) is a high precision ball runner block designed for linear motion applications requiring slim, long, and standard height dimensions. This runner block body is made of unalloyed steel CS and features a low preload class C, ensuring smooth motion with minimal resistance. It boasts an accuracy class P for precision movements and does not include a ball chain, promoting a streamlined design. This product comes with initial lubrication and preservation, using the Roller bearing grease Dynalub for extended service life. The runner block's overall length is specifically tailored to meet various application needs while maintaining compatibility across all ball guide rail systems within each accuracy class. Notably, this model offers high load ratings in all four main loading directions and allows for long-term lubrication over several years. The B.RUNNER BLOCK CS KWD-020-SLS-C1-P-1 is distinguished by its ability to handle high torque loads due to its optimized entry-zone geometry and increased number of balls, which also serve to minimize variations in elastic deflection. It features integrated all-around sealing to protect against contaminants and employs a minimum quantity lubrication system with an integrated oil reservoir. Attachments can be easily mounted from above thanks to the end-face fastening thread. Suitable for use on all SNS/SNO Ball Guide Rails, this runner block demonstrates excellent dynamic characteristics that cater to different preload classes. It's designed for environments where space is limited in the transverse direction but where very high loads are anticipated. The permissible ambient temperature range for this product extends from a minimum of ...°C to a maximum of ...°C (admissible for short periods), ensuring reliable performance across various operating conditions. In summary, the Bosch Rexroth B.RUNNER BLOCK CS KWD-020-SLS-C1-P-1 offers precision movement in demanding applications with its robust design and versatile features that ensure longevity and consistent performance in linear motion systems.
