BRAKING ELEMENT UBPS 3005 AS1A ...

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

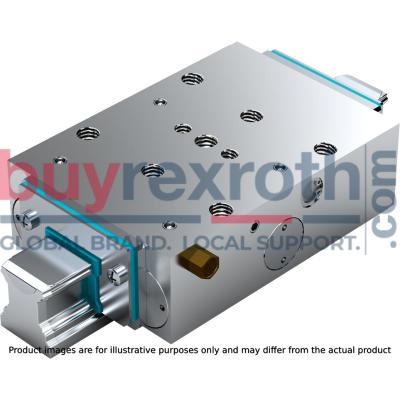

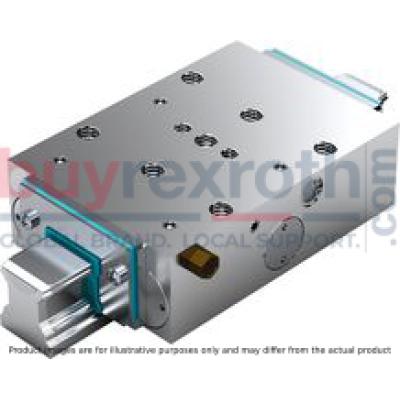

The Bosch Rexroth BRAKING ELEMENT UBPS 3005 AS1A (R161974051) is a high-performance pneumatic braking unit designed for dynamic and static stabilization in the axial direction of ball rail systems. This braking element can be utilized with all SNS ball guide rails, ensuring compatibility across various sizes of profiled rail systems including sizes B, E, H, d, and N. It features a compact design that is compatible with DIN standards and boasts a solid, rigid steel housing that is chemically nickel-plated for durability. The UBPS 3005 AS1A offers very high axial holding forces up to 2500 N at a release pressure of 5 bar due to its high-power spring energy accumulator. When additional pressurization is applied via the airplus port, the holding force can increase up to 4000 N. It also incorporates an integrated all-around sealing system to protect against contaminants and ensure maintenance-free operation for up to 10 million clamping cycles or up to 250,000 emergency braking operations. This unit operates on a functional principle where it clamps and brakes using spring force; in case of pressure drop, the dual-acting gate valve gear mechanism with spring assembly ensures reliable clamping or braking. The quick-exhaust valve contributes to swift reaction times during operation. The UBPS 3005 AS1A has an air consumption rate at standard air port of approximately 4 liters and requires minimal air consumption for its functioning. It is designed for use in environments with permissible ambient temperatures ranging from -10°C to +80°C. With its low air consumption and lack of need for external power sources during emergencies due to the spring energy accumulator, this braking element is both efficient and reliable for various applications requiring precise positioning accuracy and safety measures within mechanical systems.
