CLAMPING ELEMENT KWH 4505 AS3A ...

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

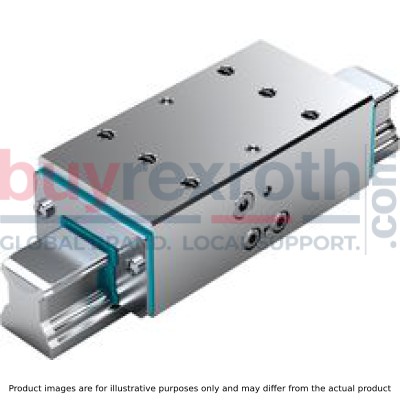

The Bosch Rexroth CLAMPING ELEMENT KWH 4505 AS3A (R161944231) is a robust hydraulic clamping unit designed for high-precision applications. This clamping element is engineered to be compatible with all SNS ball guide rails, offering versatility across various sizes including B, H, E, A, N, and S profiled rail systems. Its solid and rigid steel housing is chemically nickel-plated to ensure durability and resistance to wear. One of the key features of the KWH 4505 AS3A is its high positioning accuracy and the capability of withstanding up to 10 million clamping cycles. The unit showcases a compact design that adheres to DIN standards, making it suitable for integration into a wide range of equipment configurations. The hydraulic pressure for this unit can be continuously adjusted from 50 to 450 bar, allowing for precise control over the clamping force applied. The sophisticated design includes an integrated all-around sealing and special pressure diaphragm technology which ensures maximum functional reliability without any pressure losses or leakage. Furthermore, it boasts integrated positive-locking contact profiles that deliver maximum axial rigidity. The CLAMPING ELEMENT operates on a functional principle where large-scale clamping profiles are pressed directly onto the flanks of the ball guide rail by hydraulic oil through a piston mechanism. Decompression is achieved swiftly thanks to a pre-tensioned return spring which facilitates short decompression cycles. This unit can operate within a temperature range from -20°C up to +80°C while maintaining its holding force efficiently. It has been tested under mounted conditions with lubrication conforming to ISO VG 32 standards. With a weight of approximately 2.7 kg and various nominal sizes available for different profiled rail systems, this clamping element is an ideal solution for ensuring secure positioning in demanding industrial applications requiring high reliability and performance.
