INSTALLATION JIG 45

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

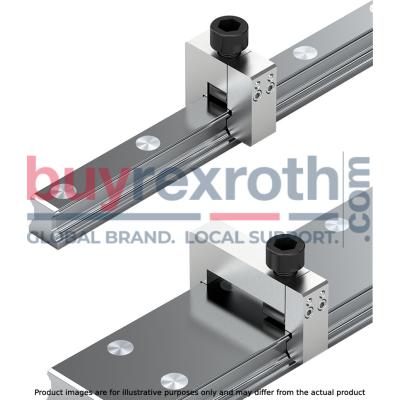

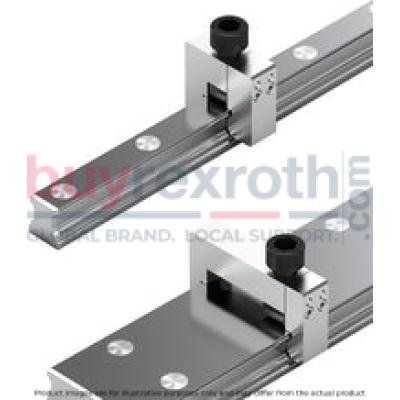

The Bosch Rexroth INSTALLATION JIG 45 (R161941010) is a specialized mounting tool designed to facilitate the installation of steel caps on ball guide rails. This two-piece tool comes with detailed mounting instructions, ensuring users can securely and accurately mount hole plugs in built-in guide rails. As part of the product group ID linear guide type accessories for profiled rail systems, this installation jig is an essential accessory for those working with Bosch Rexroth's profiled rail systems. The tool's design caters specifically to the nominal size and cross-sections required for these systems, guaranteeing compatibility and efficiency during assembly. Its robust construction ensures durability and reliability when inserting steel caps, an integral component in maintaining the integrity and performance of linear guide rail installations. Whether used in maintenance or assembly line settings, the INSTALLATION JIG 45 is engineered to streamline the installation process and enhance overall productivity.
