INSTALLATION JIG 55

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

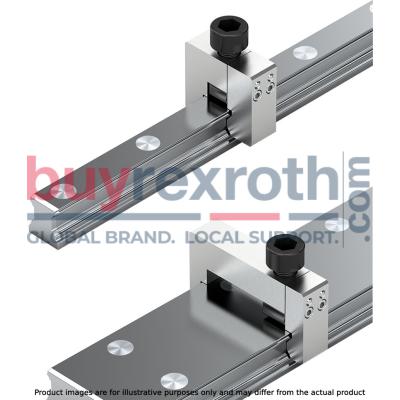

The Bosch Rexroth INSTALLATION JIG 55 (R161951010) is a specialized mounting tool designed for the secure and precise installation of steel caps into ball guide rails. This two-piece tool comes with comprehensive mounting instructions to facilitate the correct fitting of hole plugs in built-in guide rails. It is an essential accessory for those working with profiled rail systems, ensuring that components are installed accurately and efficiently. Crafted for durability and ease of use, the INSTALLATION JIG 55 is part of Bosch Rexroth's linear guide type accessories, which are engineered to complement their profiled rail systems. The design of this tool takes into account the various cross-sections it will encounter during use, making it a versatile addition to any toolkit where linear motion systems are regularly maintained or assembled. The nominal size and weight specifications are calibrated to ensure that users have a manageable and effective tool for their applications. The inclusion of mounting instructions underscores Bosch Rexroth's commitment to providing complete solutions that not only include high-quality parts but also the knowledge required to use them properly. This mounting tool is particularly suitable for technicians who demand precision in their work with profiled rail systems, ensuring that each component fits seamlessly and functions as intended within the larger mechanical structure.
